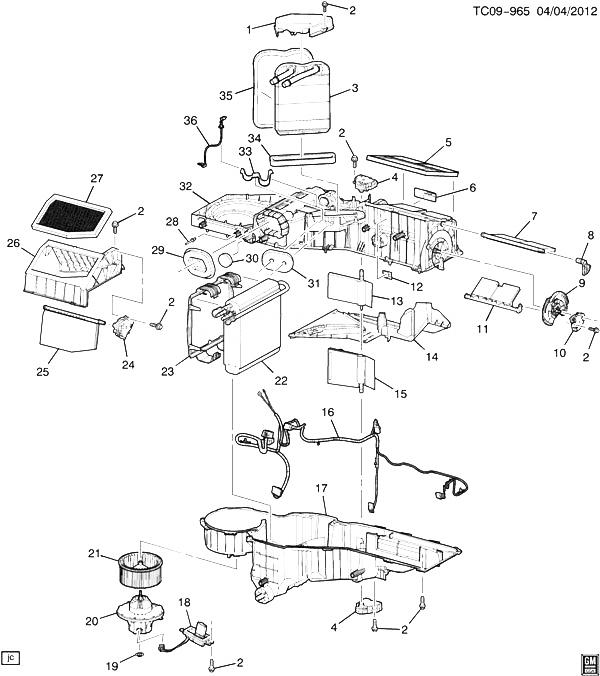

(TC09-965) 2011-2013 CK1,2(06) МОДУЛЬ КОНДИЦИОНЕРА И ОБОГРЕВАТЕЛЯ В СБОРЕ (MANUAL TEMPERATURE CONTROL CJ3) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89018299 CASE, HTR CK1, 2, 3 2011-2013 01
002 11609829 BOLT, A/C EVPR TUBE CLIP (M4.2X2.25X16) (9.786) CK1, 2, 3 (CJ2, CJ3) 2011-2013 17
003 89018297 CORE, HTR (INCLS 34, 35) (INCLS 2 SEALS) (ACDelco #15-62960) CK1, 2, 3 (CJ2, CJ3, C42) 2011-2013 01
004 89018365 ACTUATOR, TEMP VLV (ACDelco #15-72971) CK1, 2 (06) (CJ2, CJ3) 2011-2013 02
005 SEAL, W/S DEFR NOZ AIR DISTR (*KIT3) 2011-2013
006 LABEL, AIR DISTR DUCT IDENT 2011-2013
007 89018304 VALVE, DEFR (PART OF 32) (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
008 52474960 LEVER, MODE VLV CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
009 CAM, MODE CONT (*KIT1) 2011-2013
010 ACTUATOR, AIR INL VLV (*KIT1) 2011-2013
011 89018304 VALVE, DEFR (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
012 LABEL, HTR A/C EVPR BLO MDL IDENT 2011-2013
013 89018307 VALVE, TEMP CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
014 89018302 SHIELD, HTR A/C EVPR BLO MDL HT CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
015 89018306 VALVE, TEMP CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
016 20834823 HARNESS, A/C MDL WRG CK1, 2 (06) (CJ3) 2011-2013 01
017 20883395 CASE, HTR A/C EVPR BLO LWR CK1, 2 (06) (CJ2, CJ3) 2011-2013 01
018 13501703 MODULE, BLO MOT CONT (9.169) (ACDelco #15-81638) CK1, 2 (06) (CJ2, CJ3) 2011-2013 01
019 PLUG, HTR CASE (*KIT2) 2011-2013
020 MOTOR, BLO (*KIT2) 2011-2013
021 BLOWER, (*KIT2) 2011-2013
022 89019027 EVAPORATOR, A/C (ACDelco #15-62961) CK1, 2 (06) (CJ2, CJ3) 2011-2013 01
023 89018295 SEAL, A/C EVPR (ACDelco #89018295) CK1, 2, 3 2011-2013 01
024 89018365 ACTUATOR, AIR INL VLV (ACDelco #15-72971) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
025 89018304 VALVE, DEFR (PART OF 26) (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
026 22819113 INLET, AIR (INCLS 25) CK1, 2, 3 (CJ2, CJ3) 2011-2012 01
027 SEAL, AIR INL (*KIT3) 2011-2013
028 89018612 STUD, HTR A/C EVPR BLO MDL (M6X1X33MM TORX/COLR) CK1, 2, 3 (CJ2, CJ3) 2011-2013 02
029 SEAL, A/C EVPR TUBE (*KIT3) 2011-2013
030 SEAL, HTR A/C EVPR BLO MDL DRN TUBE (*KIT3) 2011-2013
031 SEAL, HTR CORE PIPE (*KIT3) 2011-2013
032 20834819 CASE, HTR A/C EVPR BLO UPR (INCLS 7, 33) CK1, 2 (06) (CJ2, CJ3) 2011-2012 01
033 22869345 INSULATOR, HTR CORE TUBE (PART OF 32) CK1, 2, 3 2011-2013 01
034 SEAL, HTR A/C EVPR BLO MDL H/SHLD (SEPARATOR) (PART OF 3) (*KIT3) 2011-2013
035 SEAL, HTR CORE (PART OF 3) (*KIT3) 2011-2013
036 25953349 SENSOR, A/C REFRIG TEMP (ACDelco #15-51267) CK1, 2, 3 2011-2013 01
K01 89018374 ACTUATOR, MODE CONT CAM (INCLS 9, 10) (ACDelco #15-73952) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
K02 22741027 MOTOR, BLO (INCLS 19-21) (9.215) (ACDelco #15-81683) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
K02 22741027 MOTOR, BLO (INCLS 19-21) (ACDelco #15-81683) CK1, 2, 3 (CJ2, CJ3) 2011-2013 01
K03 89018784 SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 5, 27, 29-31, 34, 35) (ACDelco #15-34397) CK1, 2, 3 (CJ2, CJ3) 2011-2012 01
