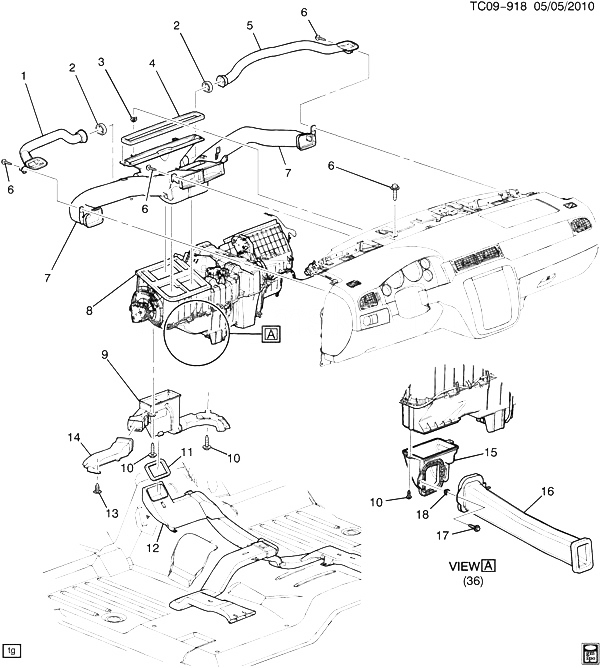

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22773284 |
DUCT, SI WDO DEFG OTLT |
CK1, 2 (06) (CJ2, CJ3, X88, Z88) |
2011-2013 |
01 |
| 002 |
|
SEAL, SI WDO DEFG OTLT DUCT (PART OF 7) |
|
2007-2013 |
|
| 003 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (AIR DISTR DUCT) (10.701) |
|
2007-2013 |
02 |
| 004 |
|
SEAL, W/S DEFR NOZ AIR DISTR (PART OF 7) |
|
2007-2013 |
|
| 005 |
22773287 |
DUCT, SI WDO DEFG OTLT |
CK1, 2, 3 (CJ2, CJ3, C42, C67, X88, Z88) |
2011-2013 |
01 |
| 006 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
08 |
| 007 |
25821020 |
DUCT, AIR DISTR (INCLS 2, 4) |
CK1, 2 (CJ3, X88, Z88) |
2007-2013 |
01 |
| 008 |
|
MODULE, HTR A/C EVPR BLO (SEE GROUP 09.000 A/C HEATER MODULE ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
15762755 |
DUCT, FLR AIR OTLT (INCLS 11) |
CK1, 2 (06) (CJ3, C67) (EXC M1F) |
2007-2013 |
01 |
| 010 |
11517774 |
BOLT, HEX, M4.2X1.41X20, 14.25 OD, 6010M, 6138M, TAP, AB-PT (FLR AIR OTLT DUCT) |
|
2007-2013 |
04 |
| 011 |
|
SEAL, FLR RR AIR DISTR (PART OF 9) |
|
2007-2013 |
|
| 012 |
25872373 |
DUCT, FLR RR AIR OTLT |
CK1, 2 (06) (EXC M1F) |
2010-2013 |
01 |
| 013 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 14) |
|
2007-2013 |
01 |
| 014 |
15951532 |
DUCT, FLR FRT AIR OTLT (INCLS 13) |
CK1, 2, 3 |
2007-2013 |
01 |
| 017 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (PART OF 16) (9.665) |
|
2007-2013 |
01 |
| 018 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 15) (10.512) |
|
2007-2013 |
01 |
