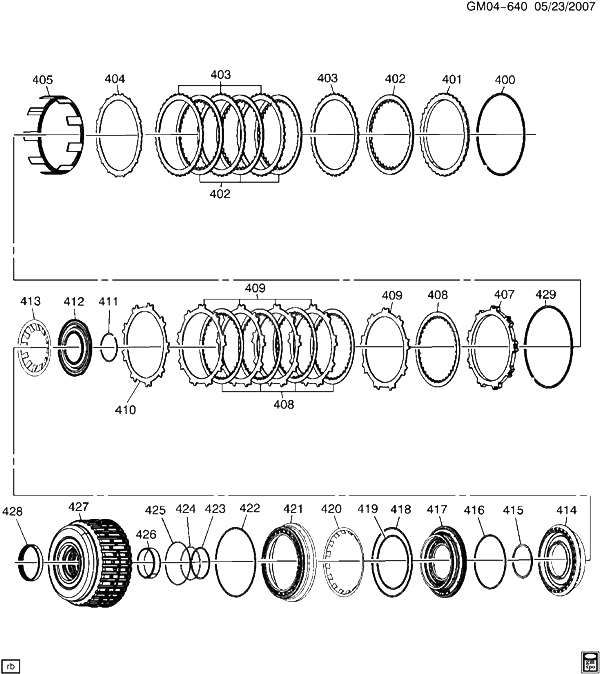

(GM04-640) 2007-2013 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYC) (6L80) УЗЕЛ МУФТЫ ПЕРЕДАЧ 1-2-3-4 И 3-5 И ЗАДНЕГО ХОДА CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
400 24240195 RING, 3-5 REV CLU BKG PLT RET (GREEN) (1.88-1.98) (ACDelco #24240195) CK1 (MYC) 2007-2013 01
400 24240197 RING, 3-5 REV CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) CK1 (MYC) 2007-2013 01
400 24240198 RING, 3-5 REV CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) CK1 (MYC) 2007-2013 01
400 24240199 RING, 3-5 REV CLU BKG PLT RET (BLUE) (2.96-3.06) (ACDelco #24240199) CK1 (MYC) 2007-2013 01
401 24224149 PLATE, 3-5 REV CLU BKG (ACDelco #24224149) CK1 (MYC) 2007-2013 01
402 24235681 PLATE, 3-5/REV CLU (PKG OF 5) (FIBER) (*KIT4) (ACDelco #24235681) CK1 (MYC) 2008-2013 04
403 24232498 PLATE, 3-5 REV CLU (STEEL) (ACDelco #24232498) CK1 (MYC) 2007-2013 01
404 24239828 PLATE, 3-5 REV CLU (WAVED) (ACDelco #24239828) CK1 (MYC) 2007-2013 01
405 24224633 RING, 3-5-REV CLU APPLY (ACDelco #24224633) CK1 (MYC) 2007-2013 01
407 24265955 PLATE, 1-2-3-4 CLU BKG (KIT) (ACDelco #26245955) CK1 (MYC) 2007-2013 01
408 24224147 PLATE, 1-2-3-4 CLU (PKG OF 6) (FIBER) (*KIT4) (ACDelco #24224147) CK1 (MYC) 2007-2013 01
409 24238701 PLATE, 1-2-3-4 CLU (STEEL) CK1 (MYC) 2007-2013 01
410 24239615 PLATE, 1-2-3-4 CLU (WAVED) (ACDelco #24239615) CK1 (MYC) 2007-2013 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (*KIT1, KIT2) 2007-2013
412 24224708 DAM, 1-2-3-4 CLU PSTN (ACDelco #24224708) CK1 (MYC) 2007-2013 01
413 24224707 SPRING, 1-2-3-4 CLU (ACDelco #24224707) CK1 (MYC) 2007-2013 01
414 24238700 PISTON, 1-2-3-4 CLU (ACDelco #24238700) CK1 (MYC) 2009-2013 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (*KIT1, KIT2) 2007-2013
416 SEAL, 1-2-3-4 CLU PSTN (PART OF 417) (*KIT1, KIT3) 2007-2013
417 HOUSING, 1-2-3-4 CLU PSTN (INCLS 416, 418, 419) (*KIT5) K 2008-2013
417 HOUSING, 1-2-3-4 CLU PSTN (*KIT5) K 2008-2013
418 SEAL, 3-5/REV CLU PSTN DAM (O RING) (PART OF 417) (*KIT3) 2007-2013
419 SEAL, 3-5-REV CLU PSTN INR (PART OF 417) (*KIT1, KIT3) 2007-2013
420 24237308 SPRING, 3-5-REV CLU (ACDelco #24237308) CK1 (MYC) 2008-2013 01
421 24242871 PISTON, 3-5/REV CLU (INCLS 422) (ACDelco #24242871) CK1 (MYC) 2008-2013 01
422 SEAL, 3-5-REV CLU PSTN OTR (PART OF 421) (*KIT3) 2007-2013
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2007-2013
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2013
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2013
426 24263590 HOUSING, 1-2-3-4 3-5 REV CLU (PART OF 427) (W/ BUSHING BEARING) (ACDelco #24263590) (CONTAINS REQUIRED 1-2-3-4 3-5-REV CLUTCH HOUSING BEARING ASM) (DOES NOT INCL CLU DAM, PSTN, SPRINGS, SEALS, PLTS, OR RETAINERS) CK1 (MYC) 2007-2013 01
427 24259848 CLUTCH, 1-2-3-4 3-5 REV (INCLS 426) CK1 (MYC) 2007-2013 01
428 24226393 BEARING, 1-2-3-4 3-5-REV CLU (ACDelco #24226393) CK1 (MYC) 2007-2013 01
429 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) CK1 (MYC) 2007-2013 01
429 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) (ACDelco #24240199) CK1 (MYC) 2007-2013 01
429 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) CK1 (MYC) 2007-2013 01
429 24240198 RING, 1-2-3-4 CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) CK1 (MYC) 2007-2013 01
429 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) (ACDelco #24240200) CK1, 2, 3 (MYC) 2007-2013 01
K01 24260145 SEAL KIT, A/TRNS SERV (INCLS 411, 415, 416, 419, 423-425) (ACDelco #24260145) CK1 (MYC) 2010-2013 01
K02 24237851 RING KIT, RET (INCLS 411, 415) (1234 DAM, 1234 HSG, 456 DAM) (4.224) (ACDelco #24237851) CK1 (MYC) 2007-2013 01
K03 24243898 SEAL KIT, A/TRNS SERV (INCLS 416, 418, 419, 422-425) (CLUTCHES) (ACDelco #24243898) CK1 (MYC) 2009-2013 01
K04 24248008 PLATE KIT, CLU (INCLS 402, 408) (ACDelco #24248008) CK1 (MYC) 2009-2013 01
