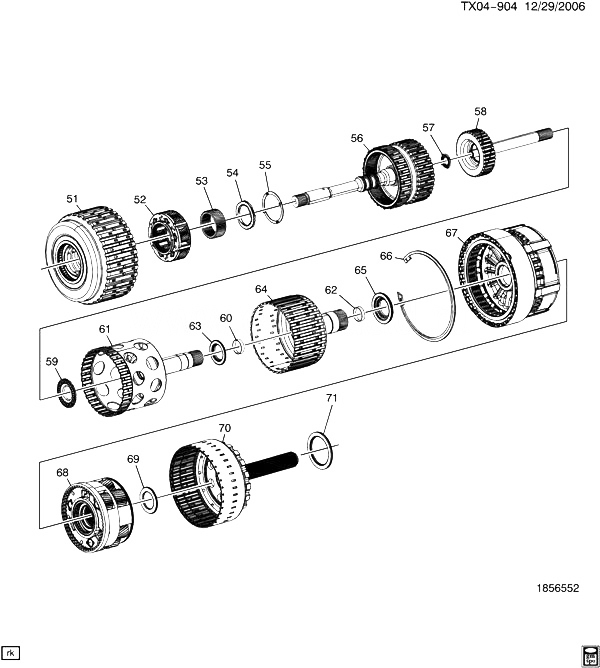

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 051 |
|
CLUTCH, 1-2-3-4 3-5 REV (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/-2-3-4 3-5 REVERSE CLUTCH FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 052 |
24236874 |
CARRIER, INPUT (ACDelco #24236874) |
CK1 (MYC) |
2007-2013 |
01 |
| 053 |
24224404 |
GEAR, INPUT SUN (ACDelco #24224404) |
CK1 (MYC) |
2007-2013 |
01 |
| 054 |
24224405 |
BEARING, INPUT SUN GR THR (ACDelco #24224405) |
CK1 (MYC) |
2007-2013 |
01 |
| 055 |
24232409 |
WASHER, INPUT SUN GR THR (ACDelco #24232409) |
CK1 (MYC) |
2007-2013 |
01 |
| 056 |
|
CLUTCH, 4-5-6 (W/ TURB SHF) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/CLUTCH AND TURBINE SHAFT FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 057 |
24238905 |
BEARING, TURB SHFT THR (ACDelco #24238905) |
CK1 (MYC) |
2007-2013 |
01 |
| 058 |
24238004 |
HUB, 4-5-6 CLU (W/ OUTPUT CARR SHF DPNR) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/CLUTCH HUB FOR DETAILED ILLUSTRATED VIEW) (ACDelco #24238004) |
CK1 (MYC) |
2007-2013 |
01 |
| 059 |
24233732 |
BEARING, 4-5-6 CLU HUB THR (ACDelco #24233732) |
CK1 (MYC) |
2007-2013 |
01 |
| 060 |
|
BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) |
|
2007-2013 |
|
| 061 |
24224162 |
HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24224162) |
CK1 (MYC) |
2007-2013 |
01 |
| 062 |
|
BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) |
|
2007-2013 |
|
| 063 |
24237209 |
BEARING, 1-2-3-4 CLU HUB THR (ACDelco #24237209) |
CK1 (MYC) |
2007-2013 |
01 |
| 064 |
24235127 |
HUB, 2-6 3-5/REV CLU (W/ OUTPUT CARR OTR SUN GR SHF) (INCLS 60, 62) (ACDelco #24235127) |
CK1 (MYC) |
2007-2013 |
01 |
| 065 |
24224164 |
BEARING, 2-6 3-5/REV CLU HUB THR (ACDelco #24224164) |
CK1 (MYC) |
2007-2013 |
01 |
| 066 |
24224724 |
RING, CTR SUPT RET (ACDelco #24224724) |
CK1 (MYC) |
2007-2013 |
01 |
| 067 |
|
SUPPORT, CTR (W/2-6 LOW REV CLU) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/CLUTCH FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 068 |
24224747 |
CARRIER, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/OUTPUT CARRIER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #24224747) |
CK1 (MYC) |
2007-2013 |
01 |
| 069 |
24251655 |
BEARING, OUTPUT CARR THR (ACDelco #24251655) |
CK1 (MYC) |
2007-2013 |
01 |
| 070 |
|
SHAFT, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/OUTPUT SHAFT FOR DETAILED ILLUSTRATED VIEW) (4.123) |
|
2007-2013 |
|
| 071 |
24224668 |
BEARING, OUTPUT SHF THR (ACDelco #24224668) |
CK1 (MYC) |
2007-2013 |
01 |
