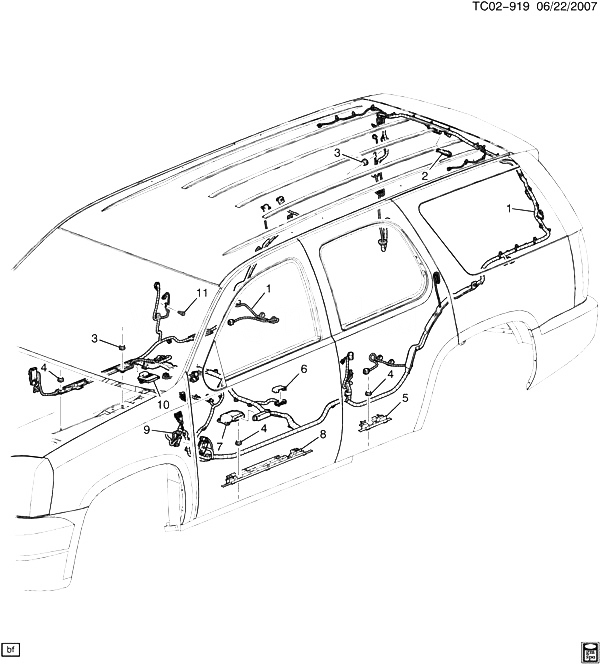

(TC02-919) 2008-2013 CK107(06) ЖГУТ ПРОВОДОВ/КУЗОВ (EXC HYBRID HP2) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22887363 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22887363) CK107 (06) (A95, KA1, UD7, US8, UUI, UUJ, UVC) (EXC ARS, HP2, STZ) 2012-2012 01
001 22887366 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22887366) CK107 (06) (A95, KA1) (EXC ARS, HP2, PPV, STZ, UD7, UVC, 5W4) 2012-2012 01
001 22887528 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22887528) CK107 (06) (AN3, ARS, E61, GMQ, UYS, UVC) (EXC STZ, Y91) 2012-2012 01
001 22888284 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22888284) CK107 (06) (AZ3, A95, PPV) (EXC ARS, UVC) 2012-2012 01
001 22888284 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22888284) CK107 (06) (AZ3, A95, 5W4) (EXC ARS, UVC) 2012-2012 01
001 22887545 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22887545) CK107 (06) (AN3, E61, GMQ, UYS, UVC) (EXC ARS, STZ, Y91) 2012-2012 01
001 22887545 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22887545) CK107 (06) (AN3, E61) (EXC ARS, STZ, UVC, Y91) 2012-2012 01
001 22920726 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (A95, KA1, UD7, UVC, UYS) (EXC ARS, E61, HP2, STZ) 2012-2013 01
001 22920866 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, UVC, UYS, X88) (EXC E61, Y91) 2012-2013 01
001 22920867 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, UVC, UYS, X88) 2012-2013 01
001 22920872 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, US8, UUI, UUJ, UVC) (EXC E61, STZ, Y91) 2012-2013 01
001 22920873 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, GMQ, UYS, UVC) (EXC E61, STZ, Y91) 2012-2013 01
001 22920874 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, US8, UUI, UUJ, UVC) (EXC STZ, Y91) 2012-2013 01
001 22920875 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, GMQ, UYS, UVC) (EXC STZ, Y91) 2012-2013 01
001 22920889 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, US8, UUI, UUJ, UVC) (EXC ARS, E61, STZ, Y91) 2012-2013 01
001 22920890 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, GMQ, UYS, UVC) (EXC ARS, E61, STZ, Y91) 2012-2013 01
001 22920891 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, GMQ, UYS, UD7, UVC) (EXC ARS, E61, HP2, KA1, STZ) 2012-2013 01
001 22920897 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, UD7, US8, UUI, UUJ, UVC) (EXC ARS, E61, HP2, KA1, STZ) 2012-2013 01
001 22920898 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, E61, US8, UUI, UUJ, UVC) (EXC ARS, STZ, Y91) 2012-2013 01
001 22920921 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95) (EXC ARS, E61, HP2, KA1, PPV, STZ, UD7, UVC, 5W4) 2012-2013 01
001 22920929 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, US8, UUJ, UVC, X88) (EXC E61, Y91) 2012-2013 01
001 22920930 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, US8, UUI, UUJ, UVC, X88) 2012-2013 01
001 22920726 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (A95, KA1, UD7) (EXC ARS, HP2, STZ, UVC) 2012-2013 01
001 22920728 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920728) CK107 (06) (A95, KA1, UD7, US8, UUI, UUJ, UVC) (EXC ARS, HP2, STZ) 2012-2012 01
001 22920731 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920731) CK107 (06) (A95, KA1) (EXC ARS, HP2, PPV, STZ, UD7, UVC, 5W4) 2012-2012 01
001 22920866 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, X88) (EXC E61, UVC, Y91) 2012-2013 01
001 22920867 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, X88) (EXC UVC) 2012-2013 01
001 22920872 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS) (EXC E61, STZ, UVC, Y91) 2012-2013 01
001 22920874 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61) (EXC STZ, UVC, Y91) 2012-2013 01
001 22920889 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3) (EXC ARS, E61, STZ, UVC, Y91) 2012-2013 01
001 22920891 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, UD7) (EXC ARS, E61, HP2, KA1, STZ, UVC) 2012-2013 01
001 22920892 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920892) CK107 (06) (AN3, E61) (EXC ARS, STZ, UVC, Y91) 2012-2012 01
001 22920892 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920892) CK107 (06) (AN3, E61, GMQ, UYS, UVC) (EXC ARS, STZ, Y91) 2012-2012 01
001 22920978 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920978) CK107 (06) (AZ3, A95, PPV) (EXC ARS, UVC) 2012-2012 01
001 22920978 HARNESS, BODY WRG (INCLS 5, 8) (LABELED 22920978) CK107 (06) (AZ3, A95, 5W4) (EXC ARS, UVC) 2012-2012 01
001 22920901 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, GMQ, UYS, T89, UVC, Y91) (EXC ARS, HP2) (EXPORT) 2012-2013 01
001 22920912 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, GMQ, UYS, T89, UVC, Y91) (EXPORT) 2012-2013 01
002 HARNESS, L/GATE WRG (SEE GROUP 02.000 WIRING HARNESS/LIFT GATE FOR DETAILED ILLUSTRATED VIEW) (INCLUDES BOOT BETWEEN LIFT GATE AND BODY) 2007-2013
003 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) 2007-2013 03
004 21011332 NUT, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) 2007-2013 06
005 CONDUIT, BODY WRG HARN (PART OF 1) 2010-2013
006 20970791 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88) (EXC Y91) 2011-2013 01
006 20970793 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88) (EXC Y91) 2011-2013 01
007 MODULE, AIRBAG SEN DIAGN (SEE GROUP 16.000 INFLATEABLE RESTRAINT SYSTEM FOR DETAILED ILLUSTRATED VIEW) 2007-2013
008 CONDUIT, BODY WRG HARN (PART OF 1) 2010-2013
009 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2007-2013
010 MODULE, RR VIEW CAMERA IMAGE DISPLAY (SEE GROUP 02.000 SENSOR SYSTEM/REAR OBJECT FOR DETAILED ILLUSTRATED VIEW) (2.195) 2007-2013
011 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) 2007-2013 02
