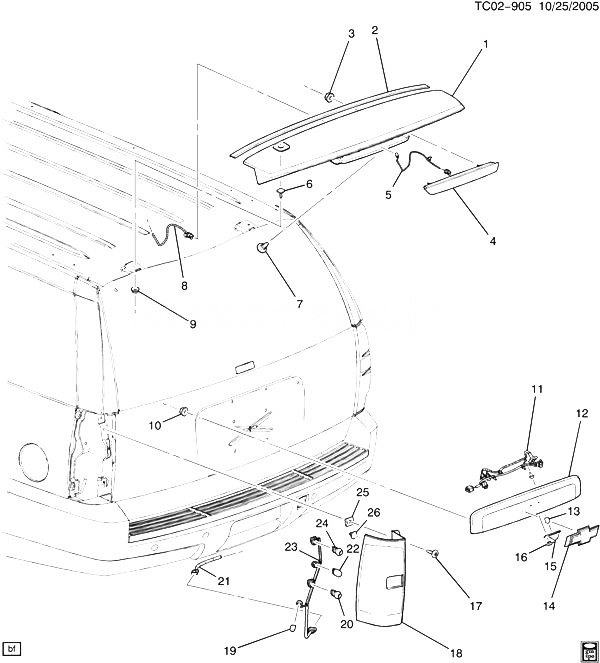

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25794624 |
APPLIQUE, L/GATE UPR (INCLS 2, 3, 6) (PAINT TO MATCH) (W/O HIGH MT STOP LMP) |
CK1, 2 (06) (X88, Z88) (EXC HP2) |
2008-2013 |
01 |
| 002 |
15270012 |
SEAL, E/GATE CTR MLDG (PART OF 1) |
CK1, 2 (06) (X88, Z88) |
2007-2013 |
01 |
| 003 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PART OF 1) |
|
2007-2013 |
02 |
| 004 |
25811698 |
LAMP, HIGH MT STOP |
CK1, 2 (06) (X88, Z88) (EXC HP2) |
2009-2013 |
01 |
| 005 |
15857136 |
WIRE, HIGH MT S/LP |
CK1, 2 (06) |
2007-2013 |
01 |
| 006 |
11561972 |
BOLT, L/GATE APLQ (PART OF 1) (6 X 1 X 21) |
CK1, 2 (T43, W49, X88, Z75, Z88) |
2007-2013 |
02 |
| 007 |
11562290 |
BOLT, L/GATE APLQ (M6X1X28) (26 OD, 9.8) |
CK1, 2 (06) (X88, Z75, Z88) |
2007-2013 |
03 |
| 008 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
11508277 |
NUT, HEX W/CON WA M6X1 THD, OD-19 PEOR 9 (L/GATE APLQ) |
|
2007-2013 |
02 |
| 010 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2007-2013 |
04 |
| 011 |
15862654 |
HARNESS, RR LIC PLT LP WRG (PART OF 12) |
CK1, 2 (06) (X88, Z88) (EXC HP2, UVC) |
2009-2013 |
01 |
| 011 |
25872958 |
HARNESS, RR LIC PLT LP WRG (PART OF 12) |
CK1, 2 (06) (UVC, X88) (EXC HP2) |
2009-2013 |
01 |
| 012 |
|
APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (SEE GROUP 17.000 LIFTGATE HARDWARE PART 3-CENTER APPLIQUE FOR DETAILED ILLUSTRATED VIEW) (INCLS 11, 13, 15, 16) (W/O CAMERA) (PAINT TO MATCH) |
|
2007-2013 |
|
| 013 |
01999382 |
BULB, (PART OF 12) (ACDelco #W5WLL) (LONGER LIFE) |
|
2007-2013 |
02 |
| 014 |
22830015 |
EMBLEM, L/GATE (BOWTIE) |
CK1, 2 (06) (X88) |
2012-2013 |
01 |
| 015 |
25778786 |
LAMP, RR LIC PLT (PART OF 12) |
CK1, 2 (06) (X88, Z75, Z88) |
2007-2013 |
02 |
| 016 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 12) |
|
2007-2013 |
04 |
| 017 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (T/LP) |
|
2007-2013 |
04 |
| 018 |
22837923 |
LAMP, TAIL (INCLS 19, 20, 22-24, 26) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2008-2013 |
01 |
| 018 |
22837924 |
LAMP, TAIL (INCLS 19, 20, 22-24, 26) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2008-2013 |
01 |
| 019 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 18) (ACDelco #L194) |
|
2007-2013 |
02 |
| 020 |
20993740 |
BULB, STOP T/LP (PART OF 18) (2.679) (ACDelco #20993740) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2008-2013 |
02 |
| 021 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 022 |
15224109 |
BULB, B/U LP (PART OF 18) (TRADE # 7441) (T20 TYPE) (8.991) (ACDelco #7441) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2008-2013 |
02 |
| 023 |
22787445 |
HARNESS, T/LP WRG (PART OF 18) (CONTAINS GRAY SOCKETS) (MATING CONN W/LEADS USE 13504593) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2007-2013 |
02 |
| 024 |
20993740 |
BULB, STOP T/LP (PART OF 18) (2.679) (ACDelco #20993740) |
CK1, 2 (06) (X88) (EXC HP2, T89) |
2008-2013 |
02 |
| 025 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (T/LP) |
|
2007-2013 |
04 |
| 026 |
11562160 |
RETAINER, T/LP (PART OF 18) |
CK1, 2 (06) (EXC HP2) |
2007-2013 |
04 |
