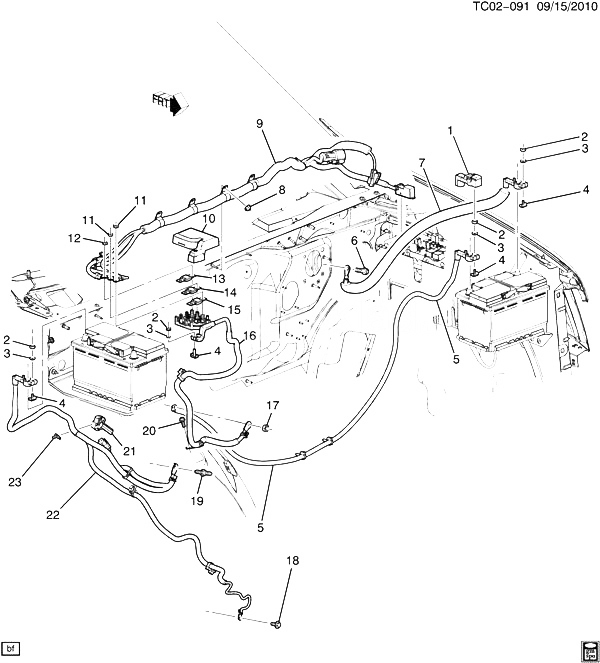

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19116038 |
COVER, BAT POS CBL TERM (PART OF 5) |
CK107 (06) (6A6) |
2011-2012 |
01 |
| 002 |
|
NUT, BAT CBL TERM (PART OF 4, 5, 7, 16, 22) |
|
2011-2012 |
|
| 003 |
|
WASHER, BAT CBL TERM (PART OF 4, 5, 7, 16, 22) |
|
2011-2012 |
|
| 004 |
19116852 |
BOLT KIT, BAT CBL TERM (PART OF 5, 7, 16, 22) (INCLS 2, 3) |
CK1, 2, 3 |
2011-2013 |
01 |
| 005 |
25825642 |
CABLE, AUX BAT POS (INCLS 1-4) (ACDelco #25825642) |
CK107 (06) (6A6) |
2011-2012 |
01 |
| 006 |
11609619 |
BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (AUX BAT NEG CBL) |
|
2011-2013 |
01 |
| 007 |
25876896 |
CABLE, AUX BAT NEG (INCLS 2-4) (ACDelco #25876896) |
CK107 (06) (6A6) |
2011-2012 |
01 |
| 008 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (BAT POS CBL RET) |
|
2011-2013 |
04 |
| 009 |
22850355 |
CABLE, BAT POS (ACDelco #22850355) (LABELED 22850355) |
CK107 (06) (LMG, PPV, 5W4) |
2012-2012 |
01 |
| 009 |
25907124 |
CABLE, BAT POS (ACDelco #25907124) (LABELED 25907124) |
CK107 (06) (LMG, PPV, 5W4) |
2012-2012 |
01 |
| 010 |
19116038 |
COVER, BAT POS CBL TERM (PART OF 16) |
CK107 (06) (6A6) |
2011-2012 |
01 |
| 010 |
20929134 |
COVER, BAT POS CBL TERM (PART OF 16) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) |
2011-2013 |
01 |
| 010 |
25797040 |
COVER, BAT POS CBL TERM (PART OF 16) (TOP) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) |
2011-2013 |
01 |
| 010 |
25888958 |
COVER, BAT POS CBL TERM (BOTTOM) (PART OF 16) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) |
2011-2013 |
01 |
| 011 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
CK1, 2, 3 |
2011-2013 |
02 |
| 012 |
21021808 |
NUT, GEN BAT (M8X1.25X6, BRASS) (2.343) |
CK1, 2, 3 |
2011-2013 |
01 |
| 013 |
15305191 |
FUSE, 175 AMP MEGA (ASHTRAY LP) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2011-2013 |
01 |
| 014 |
12177251 |
FUSE, 125 AMP MEGA FUSE (125 A) (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2011-2013 |
01 |
| 015 |
15106388 |
FUSE, BAT POS CBL (MEGA FUSE) (BLACK) (60 AMP) |
CK107 (06) (PPV, 5W4) |
2011-2013 |
01 |
| 016 |
22790282 |
CABLE, STRTR SOL (INCLS 2-4, 10) (ACDelco #22790282) |
CK107 (06) (PPV, 5W4) |
2011-2013 |
01 |
| 017 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
CK1, 2, 3 |
2011-2013 |
02 |
| 018 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL GND) |
|
2011-2013 |
01 |
| 019 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LFT, LMG, L20, L9H, L94, L96) |
2011-2012 |
01 |
| 020 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2011-2013 |
01 |
| 021 |
13505369 |
SENSOR, BAT CUR (PART OF 22) |
CK1 |
2012-2013 |
01 |
| 022 |
20967455 |
CABLE, BAT NEG (INCLS 2-4, 21, 23) (ACDelco #20967455) |
CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) |
2011-2013 |
01 |
| 023 |
19116354 |
CLIP, BAT CBL (PART OF 22) |
CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) |
2011-2013 |
01 |
