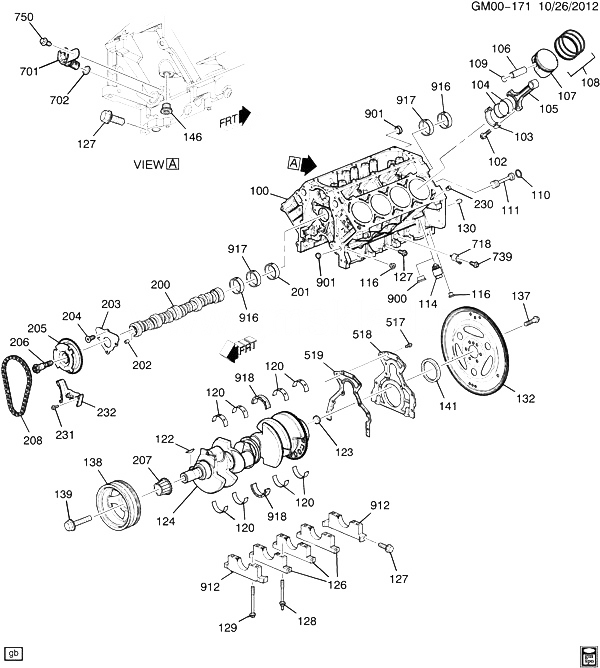

(GM00-171) 2010-2013 CK1 ДВИГАТЕЛЬ В СБОРЕ-5.3L V8 PART 1 БЛОК ЦИЛИНДРОВ И СОПРЯЖЕННЫЕ ДЕТАЛИ (LMG/5.3-0) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2010-2013
100 BLOCK, ENG 2012-2013
102 11570662 BOLT, CONN ROD (PART OF 105) (M9X44, 13 THD, 15.5 OD, 12.9, PL) CK1 (LMG, LC9) 2010-2013 16
103 CAP, CONN ROD (PART OF 105) 2010-2013
103 CAP, CONN ROD (PART OF 105) 2012-2013
104 89017573 BEARING KIT, CONN ROD (STD) CK1 (LMG, MYC) 2010-2013 08
105 12607475 ROD, CONN (INCLS 102, 103) CK1 (LMG) 2010-2013 08
106 PIN, PSTN (PART OF 107) 2010-2013
106 PIN, PSTN (PART OF 107) 2012-2013
107 19208676 PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O.S.) CK1 (LMG) 2010-2013 01
107 19208675 PISTON KIT, ENG (INCLS 106, 109) (STD) CK1 (LMG) 2010-2013 08
108 19208677 RING KIT, PSTN (STD) (FOR 0.5MM OVERSIZE SEE 19208678.) CK1 (LC9, LMG) 2010-2013 08
108 19208678 RING KIT, PSTN (0.5MM OVERSIZED) CK1 (LC9, LFT, LMG, MYC) 2012-2013 08
109 RETAINER, PSTN PIN (PART OF 107) 2010-2013
109 RETAINER, PSTN PIN (PART OF 107) 2012-2013
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2010-2013
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2012-2013
111 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (INCLS 110) (1.531) 2010-2013 02
114 12586687 HEATER, ENG COOL CK1, 2, 3 (LC9, LFT, LMG, LU3, LZ1, L20, L9H, L94, L96, K05) 2011-2012 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2010-2013 03
120 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) CK1 (LC9, LMG) 2010-2013 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) CK1 (LMG, LC9) 2010-2013 01
123 24502262 PLUG, CUP, 1.014 OD, .32 THK, FROM .05 THK 304 STAINLESS. (PART OF 124) (0.293) 2010-2013 01
124 12588614 CRANKSHAFT, (INCLS 123) CK1 (LMG) 2010-2013 01
126 CAP, CR/SHF BRG 2010-2013
126 CAP, CR/SHF BRG 2012-2013
127 12556127 BOLT, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24) CK1 (LMG, LC9) 2010-2013 10
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) CK1 (LMG, LC9) 2010-2013 10
129 12560272 BOLT, CR/SHF BRG CAP (BOTTOM) (LONG) (M10X2X102.5, 24.5) CK1 (LMG, LC9) 2010-2013 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2010-2013 02
132 12602448 PLATE, A/TRNS FLEX CK1 (LC9, LMG) 2010-2013 01
137 11569956 BOLT, A/TRNS FLEX PLT (M11X1.5X23.5 W/SEALER) CK1 (L20, LZ1, LMG, L94) 2010-2013 06
138 12634105 BALANCER, CR/SHF (ACDelco #12634105) CK1 (LMG, LC9) 2010-2013 01
139 12557840 BOLT, CR/SHF BALR (M16X2.0X103) CK1 (LC9, LMG) 2010-2013 01
141 89060436 SEAL KIT, CR/SHF RR OIL (PART OF 518) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) CK1 (LMG, LC9) 2010-2013 01
146 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2010-2013 01
200 12625436 CAMSHAFT, ENG (INCLS 202) CK1 (LMG) 2010-2013 01
201 19260879 BEARING, CM/SHF (POSN #3) CK1 (LMG) 2010-2013 01
202 24575061 PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) CK1 (LMG, LC9) 2010-2013 01
203 12589016 RETAINER, CM/SHF (USE WITH BOLT 11561455) (INCLS SEAL) CK1 (LMG, MYC) 2010-2013 01
204 11561455 SCREW, FLAT, CS, M8X1.25X15 (CM/SHF RET) 2010-2013 04
205 12606358 ACTUATOR, CM/SHF POSN CK1 (LMG) 2010-2013 01
206 12588151 VALVE, CM/SHF POSN ACTR SOL CK1 (LZ1, L20, LMG, L94, LC9) 2010-2013 01
207 12556582 SPROCKET, CR/SHF CK1 (LMG, LC9) 2010-2013 01
208 12586482 CHAIN, CM/SHF TMG CK1 (LMG, LC9) 2010-2013 01
230 12570326 PIN, CYL HD LOC CK1 (LMG, LC9) 2010-2013 04
231 11588364 BOLT, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 232) 2010-2013 02
232 12626407 TENSIONER KIT, TMG CHAIN (INCLS BOLT, RETAINER) (INCLS 231) (ACDelco #12626407) CK1 (LMG, LC9) 2010-2013 01
517 11588723 BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 518) 2010-2013 12
518 12639250 HOUSING, CR/SHF RR OIL SEAL (INCLS 141, 517, 519) CK1 (LC9, LMG) 2010-2013 01
519 12639249 GASKET, CR/SHF RR OIL SEAL HSG (PART OF 518) CK1 (LC9, LMG) 2010-2013 01
701 12585546 SENSOR, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) CK1 (LMG, LC9) 2010-2013 01
702 SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) 2010-2013
702 SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) 2012-2013
718 12623730 SENSOR, KNOCK (INCLS 739) (MATING CONN W/LEADS USE 13580877) (ACDelco #213-1576) CK1 (LMG) 2010-2013 02
739 11519980 BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 718) 2010-2013 02
750 11515756 BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) 2010-2013 01
900 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) 2010-2013 01
901 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2010-2013 01
912 CAP, CR/SHF BRG 2010-2013
912 CAP, CR/SHF BRG 2012-2013
916 19260877 BEARING, CM/SHF (POSN #1 5) CK1 (LMG) 2010-2013 02
917 19260878 BEARING, CM/SHF (POSN #2 4) CK1 (LMG) 2010-2013 02
918 89017572 BEARING KIT, CR/SHF THR (STD) (#3) CK1 (LMG, LC9) 2010-2013 01
