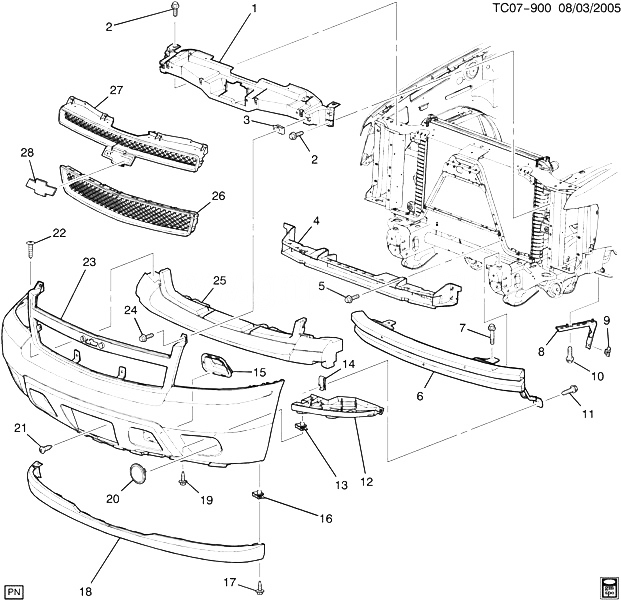

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15865945 |
BRACKET, FRT GRL UPR (INCLS 3) |
CK1, 2 (06) (X88) |
2007-2013 |
01 |
| 002 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT GRL SUPT REINF) |
|
2007-2013 |
08 |
| 003 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) |
|
2007-2013 |
08 |
| 004 |
22742861 |
BRACKET, FRT BPR FASCIA |
CK1, 2 (06-36) (X88, Z75) |
2007-2011 |
01 |
| 005 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT BPR FASCIA) |
|
2007-2013 |
06 |
| 006 |
25947497 |
BAR, FRT BPR IMP (W/ AIR DAM BRACES) |
CK1 (06-36) (X88, Z88) (EXC HP2) |
2009-2011 |
01 |
| 007 |
11519154 |
BOLT, FRT BPR IMP BAR (M14X2X140) |
CK1, 2, 3 |
2007-2013 |
02 |
| 008 |
15923612 |
BRACKET, FRT BPR FASCIA SI (INCLS 9) |
CK1 (06-36) (X88) |
2007-2013 |
01 |
| 008 |
15923613 |
BRACKET, FRT BPR FASCIA SI (INCLS 9) |
CK1 (06-36) (X88) |
2007-2013 |
01 |
| 009 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 8) (10.512) |
|
2007-2013 |
01 |
| 010 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT BPR FASCIA SI BRKT) |
|
2007-2013 |
04 |
| 011 |
11609685 |
BOLT, HEX W/CON SPR WA, M6X1X27, 19 THD, 24 OD, 8.8, GMW3359 BLACK, M-PT (FRT BPR LWR FASCIA) |
|
2007-2013 |
02 |
| 012 |
21996230 |
FILLER, FRT BPR OTR FRT |
CK1 (06-36) (X88) (EXC BPH, HP2) |
2008-2013 |
01 |
| 012 |
21996231 |
FILLER, FRT BPR OTR FRT |
CK1 (06-36) (X88) (EXC BPH, HP2) |
2008-2013 |
01 |
| 013 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR OTR FRT FIL) |
|
2007-2013 |
08 |
| 014 |
11609385 |
NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT BPR LWR FASCIA) |
|
2007-2013 |
02 |
| 015 |
15893976 |
COVER, FRT TOW HOOK OPG |
CK1, 2 (06-36) (X88) (EXC HP2) |
2007-2013 |
01 |
| 015 |
15893977 |
COVER, FRT TOW HOOK OPG |
CK1, 2 (06-36) (X88) (EXC HP2) |
2007-2013 |
01 |
| 016 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT OTR A/DFL) |
|
2007-2013 |
02 |
| 017 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT OTR A/DFL) (8.977) |
|
2007-2013 |
02 |
| 018 |
15203734 |
DEFLECTOR, FRT AIR |
CK1 (06-36) (T96, X88) (EXC BPH) |
2011-2013 |
01 |
| 018 |
15203734 |
DEFLECTOR, FRT AIR |
CK1 (06-36) (X88) (EXC HP2, T96) |
2011-2013 |
01 |
| 019 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT BPR OTR FRT FIL) (8.977) |
|
2007-2013 |
08 |
| 020 |
15817527 |
COVER, FRT FOG LP OPG |
CK1, 2 (06) (VGD, X88, Z88) (EXC HP2, T96) |
2007-2011 |
02 |
| 021 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT BRKT) |
|
2007-2013 |
02 |
| 022 |
25705182 |
BOLT, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249) |
CK1 (06-36) |
2007-2013 |
AR |
| 023 |
25814570 |
FASCIA, FRT BPR (PAINT TO MATCH) (USES ROUND FOGLAMPS) |
CK1 (06-36) (VGD, X88) (EXC BPH, HP2) |
2008-2013 |
01 |
| 024 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT BPR UPR FASCIA) |
|
2007-2013 |
06 |
| 025 |
15882454 |
SUPPORT, FRT BPR FASCIA CTR |
CK1, 2 (06-36) (X88) (EXC BPH, HP2) |
2008-2013 |
01 |
| 026 |
|
GRILLE, FRT LWR (SEE GROUP 01.000 GRILLE/RADIATOR FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 027 |
|
GRILLE, FRT UPR (SEE GROUP 01.000 GRILLE/RADIATOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 28) |
|
2007-2013 |
|
| 028 |
22830014 |
EMBLEM, FRT GRL (PART OF 27) |
CK1 (06-36) (X88) |
2011-2013 |
01 |
