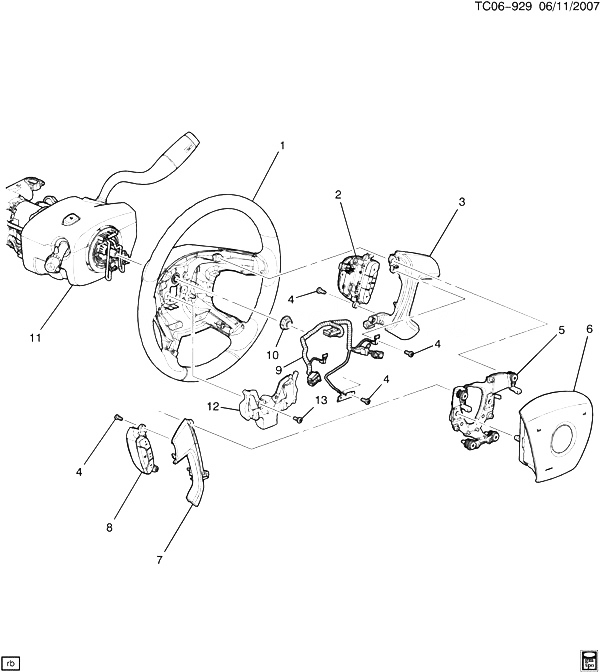

(TC06-929) 2009-2013 CK1(06-43) РУЛЕВОЕ КОЛЕСО (HYBRID HP2, LEATHER WRAPPED NP5, ACCESSORY CONTROLS UK3) CHEVROLET TAHOE (4WD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25853062 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1 (06) (HP2, K34, NP5, UK3, X88, 19I) 2009-2011 01
001 25853063 WHEEL, STRG (INCLS 2-5, 7-9) (TITANIUM) CK1 (06) (HP2, K34, NP5, UK3, X88, 83I) 2009-2011 01
001 25853084 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 19I) 2009-2011 01
001 25853085 WHEEL, STRG (INCLS 2-5, 7-9) (CASHMERE) (HAS THE WORD SET ON LH SWITCH) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 33I) 2009-2013 01
001 25853086 WHEEL, STRG (INCLS 2-5, 7-9) (TITANIUM) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 83I) 2009-2011 01
001 25853079 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1 (06) (HP2, K34, NP5, UK3, X88, Z88, 19I) 2011-2013 01
001 25853081 WHEEL, STRG (INCLS 2-5, 7-9) (TITANIUM) CK1 (06) (HP2, K34, NP5, UK3, X88, Z88, 83I) 2011-2013 01
001 25853080 WHEEL, STRG (INCLS 2-5, 7-9) (CASHMERE) CK1 (06) (HP2, K34, NP5, UK3, 33I) 2011-2013 01
002 25851950 SWITCH, RDO CONT (PART OF 1) (TITANIUM) CK1, 2 (06) (HP2, K34, NP5, UK3, X88, 83I) 2009-2011 01
002 25851950 SWITCH, RDO CONT (PART OF 1) (TITANIUM) (9.649) CK1 (06) (HP2, K34, NP5, UK3, X88, 83I) 2009-2011 01
002 25851950 SWITCH, RDO CONT (PART OF 1) (TITANIUM) CK1, 2 (06-36) (K34, NP5, STZ, UK3, X88, 83I) 2009-2011 01
002 25851954 SWITCH, RDO CONT (PART OF 1) (CASHMERE) (9.649) CK1 (06) (HP2, K34, NP5, UK3, 33I) 2009-2013 01
002 25851954 SWITCH, RDO CONT (PART OF 1) (CASHMERE) (9.649) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 33I) 2009-2013 01
002 25851954 SWITCH, RDO CONT (PART OF 1) (CASHMERE) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 33I) 2009-2013 01
002 25851954 SWITCH, RDO CONT (PART OF 1) (CASHMERE) CK1 (06) (HP2, K34, NP5, UK3, 33I) 2009-2013 01
002 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 19I, 33I, 83I) 2010-2011 01
002 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1, 2 (06) (K34, NP5, STZ, UK3, X88, 19I) 2010-2011 01
002 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 19I, 33I, 83I) 2010-2011 01
002 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1, 2 (06) (K34, NP5, STZ, UK3, X88, 19I) 2010-2011 01
003 25824700 COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 (19I, 33I, 83I, 22I, 84I, 85I, 39I) 2008-2013 01
003 25826421 COVER, STRG WHL SPOKE LWR (PART OF 1) (SOLITARE) CK1 2008-2013 01
003 15255097 COVER, STRG WHL SPOKE LWR (PART OF 1) (EBONY) CK1, 2, 3 (19I, 31I, 88I, 83I) 2008-2013 01
004 15257875 BOLT, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) CK1, 2, 3 2008-2013 04
005 15255031 CONTACT, STRG WHL HORN (PART OF 1) CK1, 2, 3 2008-2013 01
006 20928235 AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) (W/BOW TIE EMBLEM) CK1, 2 (06-36) (X88, 19I) 2011-2012 01
006 20928235 AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) (W/BOW TIE EMBLEM) (16.712) CK1, 2 (06-36) (X88, 19I) 2011-2012 01
006 20928236 AIRBAG, STRG WHL (TITANIUM) (DUAL LEVEL) CK1, 2 (06-36) (X88, 83I) 2011-2012 01
006 20928236 AIRBAG, STRG WHL (TITANIUM) (DUAL LEVEL) (16.712) CK1, 2 (06-36) (X88, 83I) 2011-2012 01
006 20928255 AIRBAG, STRG WHL (CASHMERE) (DUAL LEVEL) CK1, 2 (06-36) (X88, 33I) 2011-2012 01
006 20928255 AIRBAG, STRG WHL (CASHMERE) (DUAL LEVEL) (16.712) CK1, 2 (06-36) (X88, 33I) 2011-2012 01
007 25824698 COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 (19I, 33I, 83I, 84I, 22I, 85I, 39I) 2008-2013 01
008 15824108 SWITCH, CRCONT (PART OF 1) (VR DK CASHME) (ACDelco #15824108) CK1, 2, 3 (K34, NP5, SLT, 33I, UK3) 2009-2013 01
008 15819309 SWITCH, CRCONT (PART OF 1) (EBONY) (ACDelco #D1957E) CK1 (06) (HP2, K34, NP5, UK3, X88, 19I) 2009-2013 01
008 15824108 SWITCH, CRCONT (PART OF 1) (VR DK CASHME) (ACDelco #15824108) CK1, 2 (BPH, K34, NP5, 33I, X88, 33I) 2011-2013 01
008 15824108 SWITCH, CRCONT (PART OF 1) (VR DK CASHME) (ACDelco #15824108) CK1 (BPH, K34, NP5, 33I, X88) 2011-2013 01
009 25776048 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) CK1 (06) (HP2, K34, NP5, UK3, X88, Z88) 2008-2013 01
010 11609658 NUT, STRG WHL (M14X1.5-6H THD) (NON-FLANGED NYLON INSERT HEX) (6.518) CK1, 2, 3 2008-2013 01
011 COLUMN, STRG (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) 2008-2013
012 DAMPENER, STRG WHL VIB 2009-2013
013 11570668 BOLT, STRG WHL VIB DPNR (M6X2X15, 12OD) (PAN HEAD, SELF TAPPING) (6.512) CK1 (HP2, K34) 2008-2013 02
