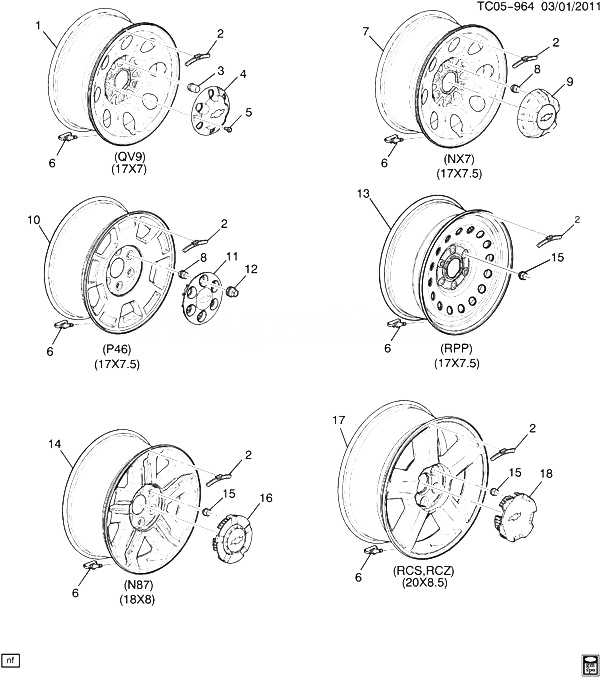

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
19209740 |
WEIGHT, WHL BAL (CLIP-ON REPLACEMENT) (TRIM AS REQUIRED) (WHL BAL) |
|
2011-2013 |
AR |
| 003 |
09596070 |
NUT, WHL (M14X1.5) (SS CAP) (TOTAL LENGTH 20.22MM) (CAPPED) |
CK1 (N88, P71, QF8, QV9, RDP, RVA, RZF, R07, R08, S84, S86) |
2011-2011 |
24 |
| 005 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (PART OF 4) (ACDelco #11570082) |
|
2011-2013 |
03 |
| 006 |
|
SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE VALVE STEM PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (433MHZ) |
|
2011-2013 |
|
| 007 |
09595246 |
WHEEL, 17X7.5 (CODE UTX) (STEEL) (ACDelco #9595246) |
CK1 (NX7) |
2011-2013 |
04 |
| 008 |
09595175 |
NUT, WHL (M14X1.5) (M27X2 EXTERNAL THREAD) (SILVER TINT COATING ON CONE SEAT) |
CK1 (NX7, PY9, P46) |
2011-2013 |
24 |
| 009 |
09596667 |
CAP, HUB (PAINTED) |
CK1 (NX7, X88) (EXC P03) |
2011-2013 |
04 |
| 010 |
09596050 |
WHEEL, 17X7.5 (ALUM) (CODE PNP) |
CK1 (P46, X88) |
2011-2013 |
04 |
| 011 |
09595469 |
CAP, HUB (INLCS 12) (PLASTIC) (CODE HHA) |
CK1 (P46) |
2011-2013 |
04 |
| 012 |
12472839 |
CAP, WHL NUT/BOLT (PART OF 11) (BLACK) (PLASTIC) |
CK1 (P46) |
2011-2013 |
24 |
| 013 |
09596426 |
WHEEL, 17X7.5 (CODE FLY UTY) (ACDelco #9596426) |
CK1 (RPP) |
2011-2013 |
04 |
| 014 |
09598055 |
WHEEL, 18X8 (ALUM) (31MM O/S 139.7X6XM14 B/C) |
CK1 (N87, X88) |
2011-2013 |
04 |
| 015 |
09595174 |
NUT, WHL (M14X1.5) (NON-DECORATIVE LARGE CONE) |
CK1 (N87, PW2, P41, P56, RCS, RCZ, RPP, S83, S85) |
2011-2011 |
24 |
| 016 |
09597991 |
CAP, HUB (PLASTIC) |
CK1 (N87) |
2011-2013 |
04 |
| 017 |
09597685 |
WHEEL, 20X8.5 (ALUM) (31MM O/S 139.7X6XM14 B/C) (CHROME) |
CK1 (RCZ) |
2011-2013 |
04 |
| 017 |
09598754 |
WHEEL, 20X8.5 (ALUM) (31MM O/S 139.7X6 B/C) (POLISHED) |
CK1 (RCS, X88) |
2011-2013 |
04 |
| 018 |
09596007 |
CAP, HUB (PLASTIC) |
CK1 (RCS) |
2011-2013 |
04 |
| 018 |
09597683 |
CAP, HUB (PLASTIC) |
CK1 (RCZ) |
2011-2013 |
04 |
