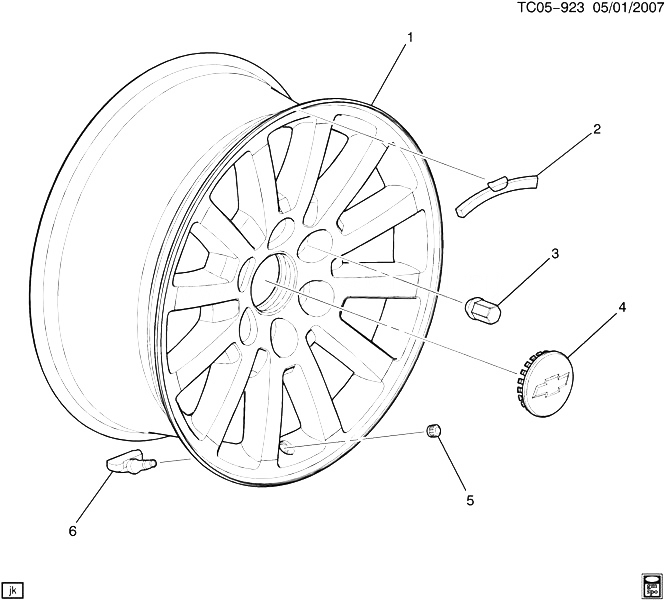

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
09598481 |
WHEEL, 18X8 (ALUM) (31MM O/S 139.7X6XM14 B/C) |
CK1 (P71) |
2010-2013 |
04 |
| 002 |
19209740 |
WEIGHT, WHL BAL (CLIP-ON REPLACEMENT) (TRIM AS REQUIRED) (WHL BAL) |
|
2008-2013 |
AR |
| 003 |
09596070 |
NUT, WHL (M14X1.5) (SS CAP) (TOTAL LENGTH 20.22MM) (CAPPED) |
CK1 (N88, P71, QF8, QV9, RDP, RVA, RZF, R07, R08, S84, S86) |
2011-2011 |
24 |
| 004 |
09598486 |
CAP, HUB (FORGED, LOW MASS, POLISHED, FLANGED) |
CK1 (P71, X88) |
2010-2013 |
04 |
| 004 |
09597991 |
CAP, HUB (PLASTIC) |
CK1 (N87) |
2011-2013 |
04 |
| 005 |
25858636 |
CAP, TIRE PRESS IND SEN (PART OF 6) (BLACK) (ACDelco #25858636) |
CK1, 2, 3 |
2008-2013 |
04 |
| 006 |
22853740 |
SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE VALVE STEM PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 5) (433MHZ) (ACDelco #22853740) |
CK1, 2 (UJM, XL8) (EXPORT) |
2011-2013 |
04 |
| 006 |
13586335 |
SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE VALVE STEM PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 5) (ACDelco #13586335) (ALL NON HIGH-PERF APPS PREV SERVD W/MET STEM NOW SERVD W/RUB STEM) |
CK1, 2 (UJ6) |
2011-2011 |
04 |
| 006 |
13586335 |
SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE VALVE STEM PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 5) (ACDelco #13586335) (ALL NON HIGH-PERF APPS PREV SERVD W/MET STEM NOW SERVD W/RUB STEM) |
CK1, 2 (UJM) |
2011-2011 |
04 |
