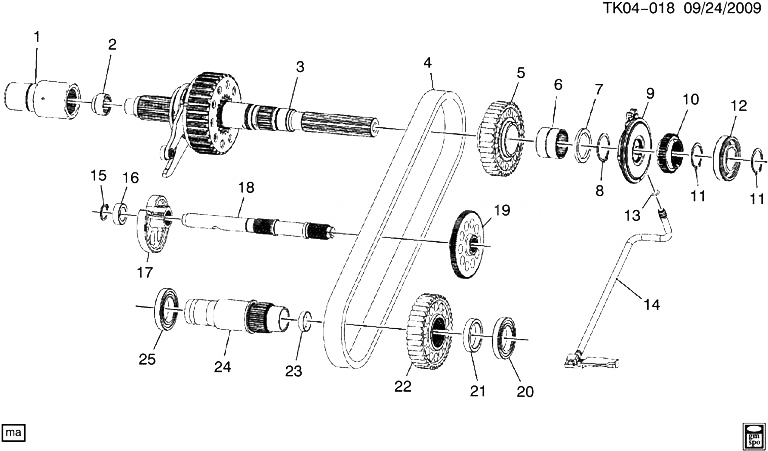

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19255997 |
SHAFT, TRFER CASE INPUT (INCLS 2) |
K1 (MYC, NP0) |
2010-2013 |
01 |
| 002 |
19132983 |
BEARING, TRFER CASE INPUT SHF PILOT (PART OF 1) |
K1 (NP0) |
2010-2013 |
01 |
| 003 |
|
SHAFT, TRFER CASE RR OUTPUT (SEE GROUP 04.000 TRANSFER CASE/CLUTCH COMPONENTS PART 3 FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 004 |
19133129 |
CHAIN, TRFER CASE TWO/FOUR WHL DRV (7/16X1.25X84) |
K1 (NP0) |
2010-2013 |
01 |
| 005 |
19133205 |
SPROCKET KIT, TRFER CASE FRT OUTPUT SHF DRV (INCLS 6) |
K1 (NP0) |
2010-2013 |
01 |
| 006 |
19133111 |
BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (PART OF 5) |
K1 (MYC, NP0) |
2010-2012 |
02 |
| 007 |
19133112 |
SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT (REAR) |
K1 (NP0) |
2010-2013 |
01 |
| 008 |
19133113 |
RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET |
K1 (NP0) |
2010-2013 |
01 |
| 009 |
19133114 |
PUMP, TRFER CASE OIL |
K1 (NP0) |
2010-2013 |
01 |
| 010 |
19133124 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (CODE FP) (ACDelco #19133124) |
K1 (MYC, NP0) |
2010-2013 |
01 |
| 010 |
19133124 |
WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (CODE FP) (4.329) (ACDelco #19133124) |
K1 (MYC, NP0) |
2010-2013 |
01 |
| 011 |
19133125 |
RING, TRFER CASE RR OUTPUT SHF RR BRG RET (ACDelco #19133125) |
K1 (NP0) |
2010-2013 |
02 |
| 012 |
19133127 |
BEARING, TRFER CASE RR OUTPUT SHF RR (ACDelco #19133127) |
K1 (NP0) |
2010-2013 |
01 |
| 013 |
19133122 |
SEAL, TRFER CASE O/PMP SUC PIPE (PART OF 14) |
K1 (NP0) |
2010-2013 |
01 |
| 014 |
19133120 |
PIPE, TRFER CASE O/PMP SUC (INCLS 13) |
K1 (NP0) |
2010-2013 |
01 |
| 015 |
19133027 |
RING, TRFER CASE TWO/FOUR WHL DRV ACTR CAM RET |
K1 (NP0) |
2010-2013 |
01 |
| 016 |
19133028 |
SPACER, TRFER CASE TWO/FOUR WHL DRV ACTR CAM |
K1 (NP0) |
2010-2013 |
01 |
| 017 |
19133029 |
CAM, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1 (NP0) |
2010-2013 |
01 |
| 018 |
19133025 |
SHAFT, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1 (NP0) |
2010-2013 |
01 |
| 019 |
19133138 |
GEAR, TRFER CASE TWO/FOUR WHL DRV ACTR SHF |
K1 (NP0) |
2010-2013 |
01 |
| 020 |
19133136 |
BEARING, TRFER CASE FRT OUTPUT SHF RR (ACDelco #19133136) |
K1 (NP0) |
2010-2013 |
01 |
| 021 |
19169064 |
SPACER, TRFER CASE FRT OUTPUT SHF DRVN SPKT |
K1 (NP0) |
2010-2013 |
01 |
| 022 |
19133134 |
SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN |
K1 (NP0) |
2010-2013 |
01 |
| 023 |
12473236 |
PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 24) (4.510) |
K1 (NP0) |
2010-2013 |
01 |
| 024 |
19259180 |
SHAFT, TRFER CASE FRT OUTPUT (INCLS 23) (REPL T/W 19259182) |
K1 (NP0) |
2010-2013 |
01 |
| 025 |
19133136 |
BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #19133136) |
K1 (NP0) |
2010-2013 |
01 |
