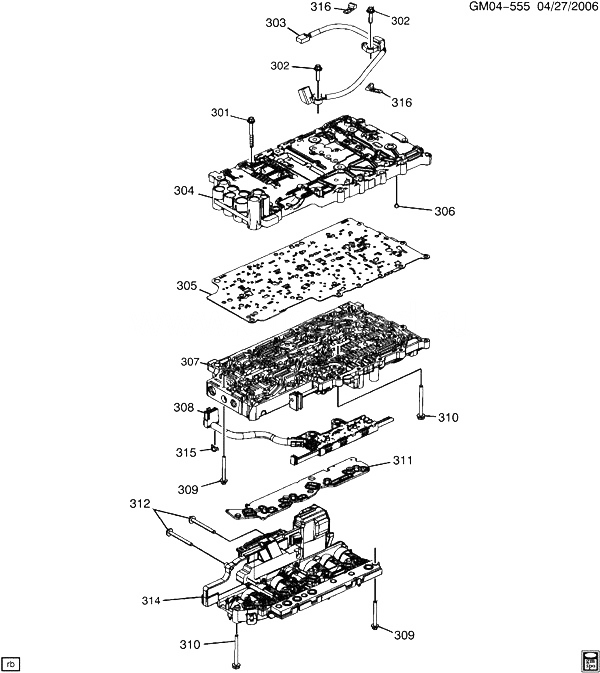

(GM04-555) 2007-2013 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYC) (6L80) КЛАПАН УПРАВЛЕНИЯ В СБОРЕ CHEVROLET TAHOE (4WD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
301 24227130 BOLT, C/VLV UPR BODY (M5X0.8X36) CK1 (MYC) 2007-2013 12
302 24225398 BOLT, A/TRNS INPUT OUTPUT SPD SEN (M6 X 1.0 X 20) CK1, 2, 3 2007-2013 02
303 24265535 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (KIT/NON-UNIGEAR) (4.329) (ACDelco #24265535) CK1 (MYC) 2007-2011 01
303 24265535 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (KIT/NON-UNIGEAR) (ACDelco #24265535) CK1 (MYC) 2007-2011 01
304 24240961 BODY, C/VLV UPR (ACDelco #24240961) CK1 (MYC) 2010-2013 01
305 24261077 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) CK1 (MYC) 2010-2013 01
306 96020431 VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) CK1 (MYC) 2007-2013 07
307 24251431 BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) CK1 (MYC) 2010-2013 01
308 24242938 SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) CK1 (MYC) 2007-2013 01
309 24240848 BOLT, C/VLV LWR BODY (MX50.8X45.0) CK1 (MYC) 2007-2013 10
310 24224822 BOLT, C/VLV LWR BODY (M5X0.8X55) CK1 (MYC) 2007-2013 06
311 24236934 PLATE KIT, CONT SOL VLV FLTR (ACDelco #24236934) CK1, 2, 3 (MYC) 2007-2013 01
312 24240845 BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) CK1 (MYC) 2007-2013 02
314 24258304 VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ORDER T/W 24236927 SEAL KIT) CK1 (MYC) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS ; TCM (NOT A CONTROL VAL VE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS)) 2011-2011 01
315 24236233 CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) CK1, 2, 3 2007-2013 01
316 24236504 CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) CK1, 2, 3 2009-2013 02
