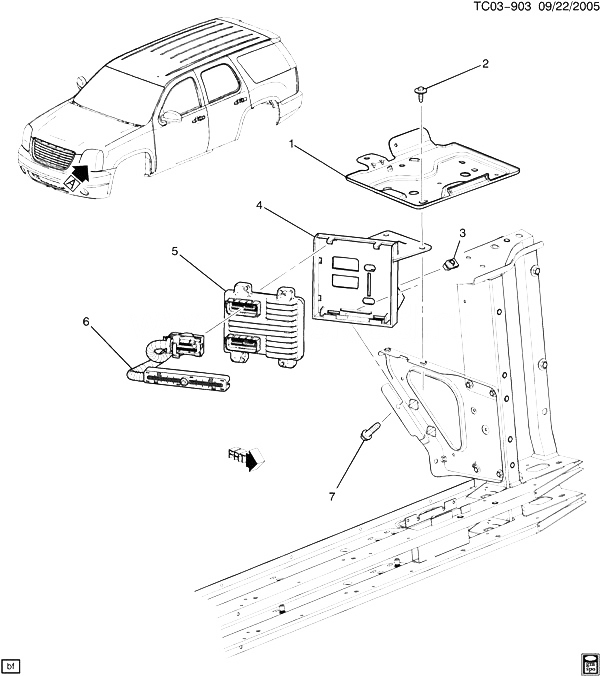

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25826079 |
TRAY, BAT (SECONDARY) |
CK1, 2, 3 |
2007-2013 |
01 |
| 002 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FRT A/DFL) |
|
2007-2013 |
02 |
| 003 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 4) |
|
2007-2013 |
AR |
| 004 |
15850348 |
BRACKET, ECM (INCLS 3) |
CK1, 2, 3 (LC9, LFT, LMG, LU3, L20, L9H, L94, L96) |
2011-2012 |
01 |
| 005 |
12633238 |
MODULE, ENG CONT (W/ 2ND MPU) (W/O CALN) (8.10.X SOFTWARE LEVEL) (E38 NO-START) (ACDelco #12633238) |
CK1 (LC9, LFT, LMG, L20, L9H, L94) |
2011-2013 |
01 |
| 006 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTATED VIEW) |
|
2007-2013 |
|
| 007 |
11517518 |
BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ECM BRKT) (ACDelco #11517518) |
|
2007-2013 |
01 |
