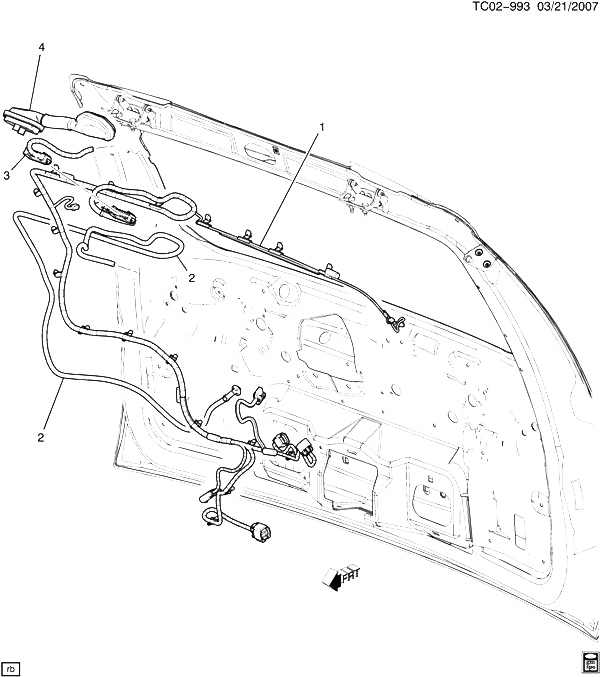

(TC02-993) 2008-2013 CK107(06) ЖГУТ ПРОВОДОВ/ОТКИДНАЯ ДВЕРЬ (CHEVROLET X88, G.M.C. Z88, HYBRID HP2) CHEVROLET TAHOE (4WD) 2011
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25971461 | HARNESS, L/GATE WRG (INCLS 2, 4) | CK1 (06) (HP2, TB7, UVC, X88, Z88) | 2010-2011 | 01 |
| 001 | 25971461 | HARNESS, L/GATE WRG (INCLS 2, 4) (2.480) | CK1 (06) (HP2, TB7, UVC, X88, Z88) | 2010-2011 | 01 |
| 002 | HOSE, WSW ARM L/GATE (PART OF 1) | 2008-2013 | |||
| 003 | HARNESS, BODY WRG ( (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) | 2008-2013 | |||
| 004 | GROMMET, L/GATE WRG HARN (PART OF 1) | 2008-2013 |
