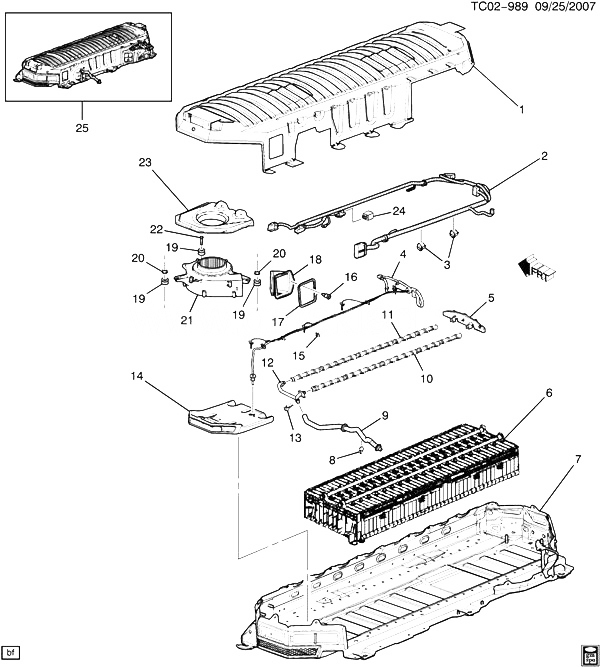

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25926174 |
COVER, DRV MOT BAT (SEE GROUP 02.000 BATTERY/DRIVE MOTOR PART 2 FOR DETAILED ILLUSTRATED VIEW) (REAR) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 002 |
20839874 |
HARNESS KIT, DRV MOT BAT CONT MDL (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 003 |
25925265 |
CLIP, BAT CBL (USED FOR HIGH VOLTAGE OUTPUT CABLE) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 003 |
25925268 |
CLIP, BAT CBL (USED FOR LOW VOLTAGE WIRE HARNESS) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
04 |
| 004 |
25870508 |
HARNESS, DRV MOT BAT SEN MDL WRG (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 005 |
25926169 |
RETAINER, BAT VENT HOSE (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 006 |
|
BATTERY, DRV MOT GEN (*KIT2) |
|
2008-2013 |
|
| 007 |
|
CARRIER, GEN BAT (*KIT2) |
|
2008-2013 |
|
| 008 |
25925265 |
CLIP, BAT CBL (USED FOR HIGH VOLTAGE OUTPUT CABLE) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 008 |
25925268 |
CLIP, BAT CBL (USED FOR LOW VOLTAGE WIRE HARNESS) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
04 |
| 009 |
20839876 |
TUBE, BAT VENT (DRAIN HOSE ASM) (*KIT2) (ACDelco #20839876) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 010 |
25925266 |
TUBE, BAT VENT (TUBE ASM, BAT. NO. 1) (*KIT2) (ACDelco #25925266) |
CK1 (06) (HP2) |
2008-2012 |
01 |
| 011 |
25925260 |
TUBE, BAT VENT (BAT NO. 2) (*KIT2) (ACDelco #25925260) |
CK1 (06) (HP2) |
2008-2012 |
01 |
| 012 |
25925262 |
TUBE, BAT VENT (HOSE, TUBE CONNECT) (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 013 |
25926169 |
RETAINER, BAT VENT HOSE (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 014 |
|
DUCT, DRV MOT BAT CLG AIR INL (*KIT2) |
|
2008-2013 |
|
| 015 |
25926167 |
CLIP, DRV MOT BAT TEMP SEN (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
04 |
| 016 |
|
RETAINER, BAT VENT (*KIT2) |
|
2008-2013 |
|
| 017 |
|
SEAL, DRV MOT BAT CLG AIR OTLT DUCT (PART OF 18) (*KIT2) |
|
2008-2013 |
|
| 018 |
25925287 |
DUCT, DRV MOT GEN BAT CLG OTLT (INCLS 17) (*KIT2) (2.335) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 019 |
25926177 |
INSULATOR, DRV MOT BAT VENT FAN (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
03 |
| 020 |
|
NUT, DRV MOT BAT (*KIT2) |
|
2008-2013 |
|
| 021 |
25870518 |
FAN, GEN BAT VENT (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 022 |
|
BOLT, DRV MOT BAT CLG BLO (*KIT2) |
|
2008-2013 |
|
| 023 |
25925258 |
DUCT, DRV MOT BAT CLG BLO OTLT (*KIT2) (2.335) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 024 |
25870510 |
RELAY, GEN BAT VENT FAN (*KIT2) |
CK1 (06) (HP2) |
2008-2013 |
01 |
| 025 |
|
BATTERY, DRV MOT GEN (SEE PART 2 FOR ADDITIONAL COMPONENTS) (*KIT2) |
|
2008-2013 |
|
| K02 |
19180442 |
BATTERY KIT, DRV MOT (INCLS COMPLETE BATTERY ASM, NEG TERM CVR 4 SCREWS) (INCLS 1-25) |
CK1 (06) (HP2) |
2008-2013 |
01 |
