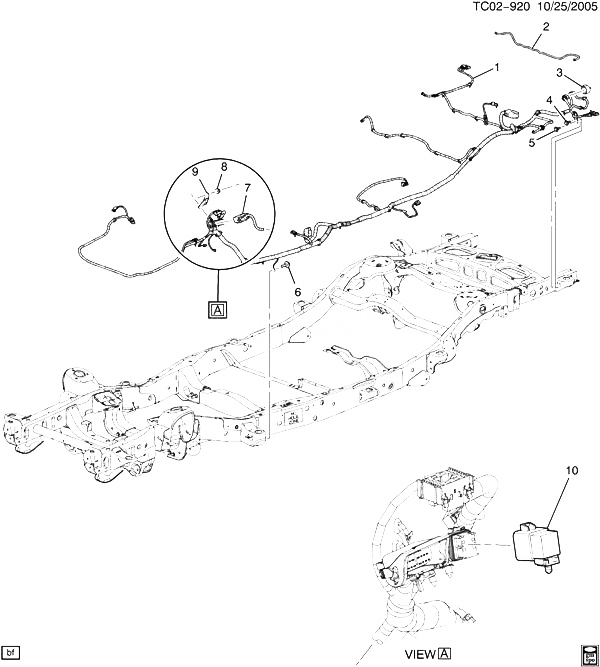

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20976651 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (G69, X88, Z88, Z55) (EXC BRS, JL1, T79, UFT) |
2011-2011 |
01 |
| 001 |
20976656 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, X88, Z88, Z55) (EXC JL1, T79, UFT) |
2011-2011 |
01 |
| 001 |
20976659 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (G69, JL1, X88, Z88, Z55) (EXC BRS, T79, UFT) |
2011-2011 |
01 |
| 001 |
20976661 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, JL1, X88, Z88, Z55) (EXC T79, UFT) |
2011-2011 |
01 |
| 001 |
20976664 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (G69, UFT, X88, Z88, Z55) (EXC BRS, JL1, T79) |
2011-2011 |
01 |
| 001 |
20976668 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, UFT, X88, Z88, Z55) (EXC JL1, T79) |
2011-2011 |
01 |
| 001 |
20976673 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, JL1, UFT, X88, Z88, Z55) (EXC T79) |
2011-2011 |
01 |
| 002 |
|
TUBE, RR S/ABS AIR (PART OF 1) |
K |
2011-2013 |
|
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG) |
|
2007-2013 |
01 |
| 005 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND) |
|
2007-2013 |
01 |
| 006 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND) |
|
2007-2013 |
02 |
| 007 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) |
|
2007-2013 |
02 |
| 009 |
15045897 |
BRACKET, CHAS FRT WRG HARN |
CK1, 2, 3 |
2007-2013 |
01 |
| 010 |
|
RELAY, AUTO LVL CONT |
K |
2011-2013 |
|
