| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

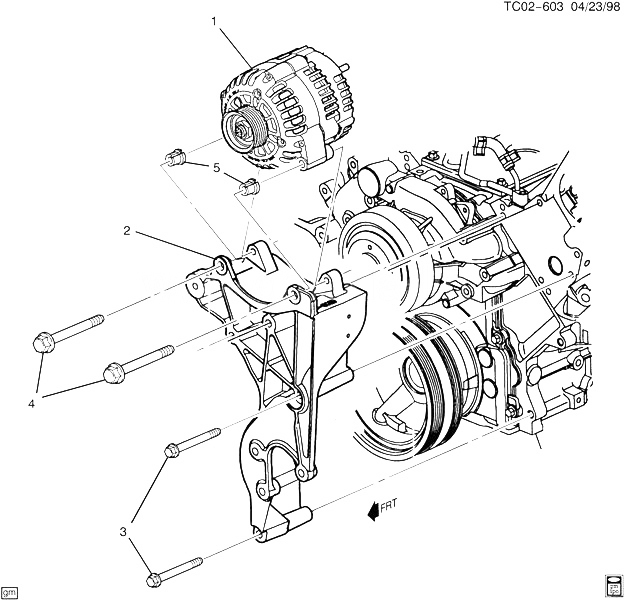

| 001 |
25877026 |
GENERATOR, (ACDelco #25877026) |
CK1, 2, 3 (KW1) |
2007-2013 |
01 |
| 001 |
20881337 |
GENERATOR, (2 WIRE GENERATOR) (ACDelco #20881337) |
CK1, 2 (KG3) |
2007-2013 |
01 |
| 002 |
12554030 |
BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) |
CK1 (LMG, LC9) |
2007-2013 |
01 |
| 003 |
11516744 |
BOLT-HFH, M10X1.5X110, 26 THD, 22.3 OD, 9.8, 7114M (GEN P/S PUMP BRKT) |
|
2007-2013 |
04 |
| 004 |
11516360 |
BOLT, HFH M10X1.2X90, 9.8, 7114M, 22.3 OD HDR PT (GEN) |
|
2007-2013 |
02 |
| 005 |
12550090 |
SPACER, GEN P/S PUMP BRKT (PART OF 2) |
CK1 (LC9, LMG) |
2007-2013 |
02 |
