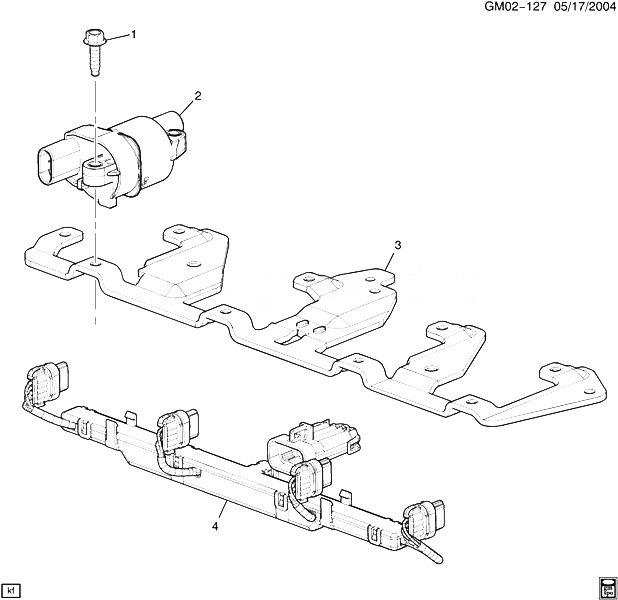

(GM02-127) 2010-2011 CK1 КАТУШКА И МОДУЛЬ ЗАЖИГАНИЯ (DELPHI)(L20/4.8A,LMG/5.3-0,LC9/5.3-3,LZ1/6.0J,L94/6.2F) CHEVROLET TAHOE (4WD) 2011
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11562426 | BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (IGN COIL) | 2007-2013 | 16 | |
| 002 | 12573190 | COIL, IGN (DELPHI) (W/ROUND-SHAPED COILS AND MARKED 12573190)) (ACDelco #D514A) | CK1 (LMG) | 2007-2013 | 08 |
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (LC9, LMG) | 2007-2013 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLS CONNS) (ACDelco #357A) | CK1 (LC9, LMG) | 2007-2013 | 02 |
