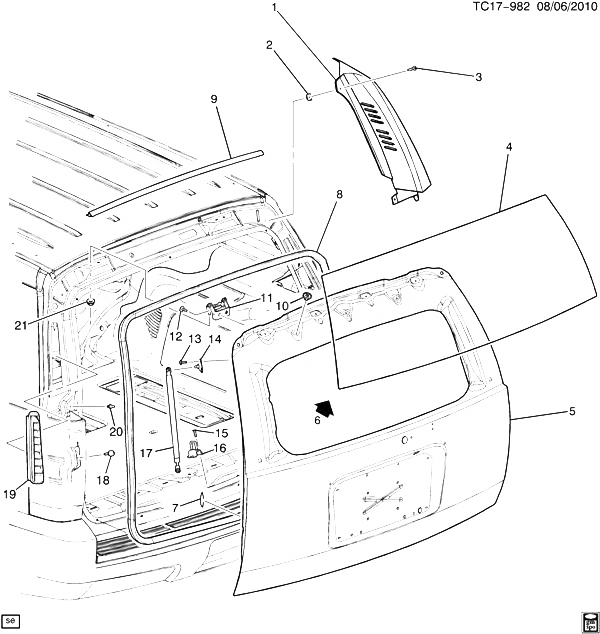

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25931407 |
APPLIQUE, Q/PNL UPR (PAINT TO MATCH) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
01 |
| 001 |
25931408 |
APPLIQUE, Q/PNL UPR (PAINT TO MATCH) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
01 |
| 002 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (Q/PNL UPR APLQ) |
|
2008-2013 |
04 |
| 003 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (Q/PNL UPR APLQ) |
|
2008-2013 |
04 |
| 004 |
25911667 |
WINDOW, L/GATE |
CK1 (06) (AJ1, HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 005 |
25993186 |
GATE, LIFT |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 006 |
12346392 |
ADHESIVE KIT, GLASS URETHANE (L/GATE WDO) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) |
|
2008-2013 |
AR |
| 007 |
22782015 |
TAPE, L/GATE ADJ BPR PAD |
CK1, 2 (06) |
2008-2013 |
02 |
| 008 |
22775503 |
WEATHERSTRIP, L/GATE |
CK1, 2 (06) |
2008-2013 |
01 |
| 009 |
22845014 |
WEATHERSTRIP, L/GATE UPR |
CK1, 2 (06) |
2008-2013 |
01 |
| 010 |
22722860 |
GROMMET, L/GATE TR RET (WHITE) (8.75X12.2) (NUT) (14.683) |
CK1 (06) |
2008-2013 |
03 |
| 011 |
15260499 |
HINGE, L/GATE |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
02 |
| 012 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (L/GATE HGE (L/GATE SI)) |
|
2008-2013 |
04 |
| 013 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (L/GATE STRUT BRKT (L/GATE SI)) |
|
2008-2013 |
04 |
| 014 |
15260504 |
BRACKET, L/GATE STRUT (L/GATE SI) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 014 |
15893999 |
BRACKET, L/GATE STRUT (L/GATE SI) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2013 |
01 |
| 015 |
11518445 |
BOLT, L/GATE LK STKR (8 X 1.25 X 25) (T40) (8.908) |
CK1, 2 (06) |
2008-2013 |
02 |
| 016 |
15134851 |
STRIKER, L/GATE LK |
CK1, 2 (06) |
2008-2013 |
01 |
| 017 |
22743452 |
STRUT, L/GATE |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
01 |
| 017 |
22902996 |
STRUT, L/GATE |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2013 |
01 |
| 018 |
15892254 |
BUMPER, L/GATE |
CK1, 2 (06) |
2008-2013 |
02 |
| 019 |
15816854 |
VALVE, BK BODY OPG FRM PRESS RLF |
CK1, 2 (06) |
2008-2011 |
02 |
| 020 |
11561717 |
STUD, L/GATE STRUT (BODY SI) (M8X1.25X25) (STAINLESS STEEL) |
CK1, 2 (06) |
2008-2013 |
02 |
| 021 |
25632772 |
NUT, W/CON WA, M8X1.25, 6.5THK, 25.4 O.D., 10, ZF (L/GATE HGE (BODY SI)) |
|
2008-2013 |
04 |
