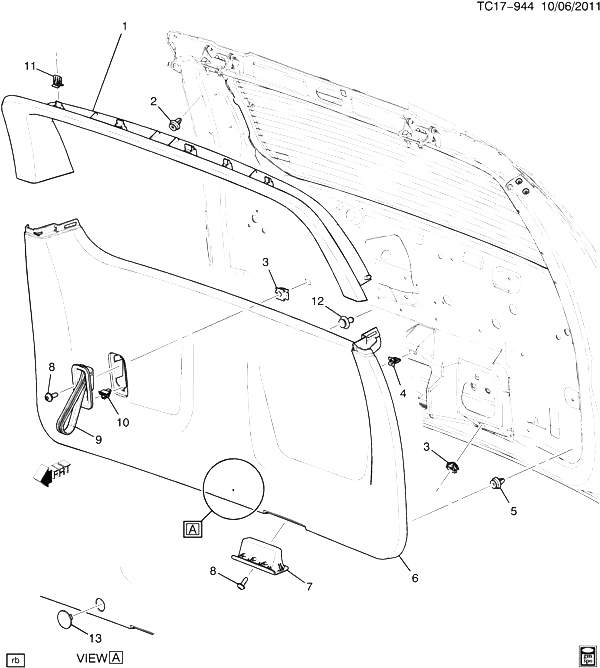

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25874009 |
MOLDING, L/GATE WDO UPR GARN (INCLS 2, 11) (CASHMERE) (HYBRID) |
CK107 (06) (X88, Z88, HP2, 33I) |
2009-2013 |
01 |
| 001 |
25874010 |
MOLDING, L/GATE WDO UPR GARN (INCLS 2, 11) (TITANIUM) (HYBRID) |
CK107 (06) (X88, Z88, HP2, 83I) |
2008-2013 |
01 |
| 001 |
25874011 |
MOLDING, L/GATE WDO UPR GARN (INCLS 2, 11) (EBONY) (HYBRID) |
CK107 (06) (X88, Z88, HP2, 19I) (EXC Y91) |
2008-2013 |
01 |
| 002 |
11561654 |
RETAINER, CTR PLR G/MLDG (PART OF 1) (PLAIN) (BIRDS BEAK SINGLE) (FITS 8.5 DIA HOLE) (12.800) |
CK1, 2 (06-36) (X88, Z88) |
2008-2013 |
04 |
| 003 |
11609242 |
NUT, L/GATE TR FIN PNL (M6X1, 18X17X14.3) |
CK1, 2 (06) |
2008-2013 |
02 |
| 004 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 6) |
|
2008-2013 |
03 |
| 005 |
25690971 |
CLIP, L/GATE TR FIN PNL (PART OF 6) (ATTACHES PANEL TO BODY) (14.645) |
CK107 (06) (HP2) |
2008-2013 |
01 |
| 006 |
25874148 |
PANEL, L/GATE TR FIN (INCLS 4, 5, 7, 9, 10, 12) (CASHMERE) |
CK107 (06) (HP2, 33I) |
2009-2013 |
01 |
| 006 |
20986883 |
PANEL, L/GATE TR FIN (INCLS 4, 5, 7, 9, 10, 12) (TITANIUM) |
CK107 (06) (HP2, 83I) |
2009-2013 |
01 |
| 006 |
20986884 |
PANEL, L/GATE TR FIN (INCLS 4, 5, 7, 9, 10, 12) (EBONY) |
CK107 (06) (X88, Z88, HP2, 19I) (EXC Y91) |
2009-2013 |
01 |
| 007 |
15952901 |
HANDLE, L/GATE I/S PULL (PART OF 6) (TITANIUM) |
CK1, 2 (06) (83I) |
2008-2013 |
01 |
| 007 |
15952900 |
HANDLE, L/GATE I/S PULL (PART OF 6) (EBONY) |
CK1, 2 (06) (19I) |
2008-2013 |
01 |
| 007 |
15952902 |
HANDLE, L/GATE I/S PULL (PART OF 6) (CASHMERE) |
CK1, 2 (06) (31I, 33I, 39I) |
2008-2011 |
01 |
| 008 |
11518329 |
SCREW, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (L/GATE TR FIN PNL) |
|
2008-2013 |
02 |
| 009 |
15838552 |
STRAP, L/GATE PULL (PART OF 6) (EBONY) |
CK107 (06) (HP2, X88, Z88, 19I) (EXC Y91) |
2010-2013 |
01 |
| 009 |
15838553 |
STRAP, L/GATE PULL (PART OF 6) (TITANIUM) |
CK1, 107, 2 (06) (83I) |
2010-2013 |
01 |
| 009 |
15838554 |
STRAP, L/GATE PULL (PART OF 6) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2011 |
01 |
| 010 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 6) |
|
2008-2013 |
AR |
| 011 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1) |
|
2008-2013 |
05 |
| 012 |
25690971 |
CLIP, L/GATE TR FIN PNL (PART OF 6) (ATTACHES PANEL TO BODY) (14.645) |
CK107 (06) (HP2) |
2008-2013 |
01 |
| 013 |
20986931 |
PLUG, L/GATE TR FIN PNL HOLE (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
01 |
| 013 |
20986933 |
PLUG, L/GATE TR FIN PNL HOLE (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
01 |
| 013 |
20986932 |
PLUG, L/GATE TR FIN PNL HOLE (TITANIUM) |
CK1, 2 (06) (83I) |
2008-2013 |
01 |
