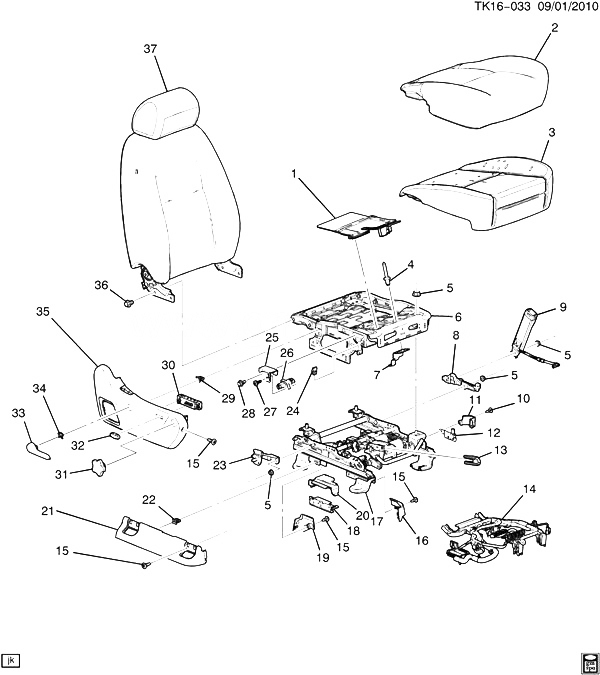

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20919641 |
MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3) |
CK1, 2, 3 (EXC KB6) |
2010-2013 |
01 |
| 002 |
20779855 |
COVER, P/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (A95, 193) (EXC HP2) |
2010-2010 |
01 |
| 002 |
20779856 |
COVER, P/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (A95, 313, 333) (EXC HP2) |
2010-2010 |
01 |
| 002 |
20779857 |
COVER, P/SEAT CUSH (TITANIUM) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) |
CK1, 2, 3 (A95, 833, 843) (EXC HP2) |
2010-2010 |
01 |
| 002 |
20904106 |
COVER, P/SEAT CUSH (CASHMERE) |
CK1, 2, 3 (A95, 31C, 33C) |
2010-2010 |
01 |
| 002 |
20833415 |
COVER, P/SEAT CUSH (EBONY) |
CK1, 2 (06-36) (A95, 19C) |
2010-2013 |
01 |
| 003 |
25864494 |
PAD, P/SEAT CUSH (PART OF 1) |
CK1, 2 (06) (AZ3, A95) |
2010-2013 |
01 |
| 004 |
|
RIVET, AIRBAG ARMING SEN (PART OF 6) |
|
2010-2011 |
|
| 005 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) (ACDelco #11517996) |
|
2010-2013 |
09 |
| 006 |
22781429 |
FRAME, P/SEAT CUSH (INCLS 4, 7, 28) |
CK1, 2, 3 |
2010-2013 |
01 |
| 007 |
|
BRACKET, AIRBAG ARMING SEN (PART OF 6) |
|
2010-2011 |
|
| 008 |
25916855 |
BRACKET, P/SEAT BELT (BKL SI) (I/B) |
CK1, 2, 3 |
2010-2013 |
01 |
| 009 |
19121543 |
BELT KIT, P/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AG2, AL0, A95, 83I) (EXC HP2) |
2010-2013 |
01 |
| 009 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AL0, A95, 19I) (EXC HP2) |
2010-2013 |
01 |
| 009 |
19121542 |
BELT KIT, P/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AL0, A95, 31I, 33I) |
2010-2011 |
01 |
| 009 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (A95, 84I) |
2010-2011 |
01 |
| 010 |
88981918 |
BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) |
CK1, 2, 3 |
2010-2013 |
06 |
| 011 |
20958089 |
COVER, AIRBAG P/SEAT POSN SEN |
CK1, 2 (06-36) |
2010-2013 |
01 |
| 012 |
25954737 |
SENSOR, AIRBAG P/SEAT POSN |
CK1, 2 (06-36) (AL0, A95, 19I, 33I, 83I) |
2010-2013 |
01 |
| 013 |
25815788 |
CAP, F/SEAT ADJR TRK END (PART OF 17) (BLACK) |
CK1, 2, 3 |
2010-2011 |
02 |
| 014 |
20818404 |
HARNESS, P/SEAT ADJR WRG (RH PWR ADJ ONLY) |
CK1, 2 (06-36) (AG2, AL0, A95, 193, 333, 833) (EXC HP2) |
2010-2010 |
01 |
| 014 |
20818404 |
HARNESS, P/SEAT ADJR WRG (RH PWR ADJ ONLY) |
CK1, 2 (06-36) (AG2, AL0, A95, 19C, 33C) |
2010-2010 |
01 |
| 015 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) |
|
2010-2013 |
05 |
| 016 |
15243860 |
COVER, P/SEAT INR ADJR TRK FRT FIN (TITANIUM) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 016 |
15243858 |
COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 016 |
15243859 |
COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 017 |
20779109 |
ADJUSTER, P/SEAT (INCLS 13) (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) |
CK1, 2 (06-36) (AG2, A95) (EXC HP2) |
2010-2010 |
01 |
| 018 |
15827135 |
BRACKET, P/SEAT FRT (DEALER WILL NEED TO ORDER NEW COVER 20970793) (FOR HD VEHICLES) |
CK1, 2, 3 |
2010-2010 |
01 |
| 019 |
15243869 |
COVER, P/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 019 |
15243870 |
COVER, P/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) |
1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 019 |
15243871 |
COVER, P/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 020 |
25952153 |
COVER, WRG HARN CONN (EBONY) |
CK1, 2 (06-36) (X88, Z88) (EXC HP2, Y91) |
2010-2010 |
01 |
| 021 |
15232589 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (EBONY) (OUTBOARD) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 021 |
15232590 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (CASHMERE) (OUTBOARD) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 021 |
15232591 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (TITANIUM) (OUTBOARD) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 022 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 21) |
|
2010-2013 |
01 |
| 023 |
15845154 |
BRACKET, P/SEAT BELT (RETR SI) (O/B) |
CK1, 2, 3 |
2010-2013 |
01 |
| 024 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) |
|
2010-2013 |
02 |
| 025 |
25819558 |
BRACKET, P/SEAT LUMBAR CONT SW |
CK1, 2, 3 |
2010-2013 |
01 |
| 026 |
25819557 |
ACTUATOR, P/SEAT LUMBAR SUPT |
CK1, 2, 3 (EXC HP2) |
2010-2010 |
01 |
| 027 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT ADJR ACTR) |
|
2010-2013 |
02 |
| 028 |
|
RIVET, D/SEAT LUMBAR SUPT BRKT (PART OF 6) |
|
2010-2011 |
|
| 029 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 35) |
|
2010-2013 |
03 |
| 030 |
12451498 |
SWITCH, P/SEAT ADJR RECL (8-WAY) (11.558) |
CK1, 2, 3 |
2010-2013 |
01 |
| 030 |
12451495 |
SWITCH, P/SEAT ADJR (6-WAY) (11.558) |
CK1, 2 (06) (AE7, AZ3, A95, AG2) |
2010-2011 |
01 |
| 031 |
15909613 |
KNOB, D/SEAT LUMBAR SUPT ACTR (CASHMERE) |
CK1, 2, 3 (AE7, AZ3, A95, 33I, 39I) |
2010-2013 |
01 |
| 031 |
15909614 |
KNOB, D/SEAT LUMBAR SUPT ACTR (TITANIUM) |
CK1, 2, 3 (AE7, AZ3, A95, 83I) |
2010-2013 |
01 |
| 031 |
15909612 |
KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) |
CK1, 2, 3 (AE7, AZ3, A95, 19I, 88I) |
2010-2013 |
01 |
| 031 |
15909613 |
KNOB, D/SEAT LUMBAR SUPT ACTR (CASHMERE) |
CK1, 2, 3 (AZ3, A95, 31I) |
2010-2011 |
01 |
| 032 |
10325879 |
KNOB, P/SEAT ADJR SW (EBONY) (11.558) |
CK1, 2 (06-36) (19I, 22I, 84I) |
2010-2011 |
01 |
| 032 |
15222981 |
KNOB, P/SEAT ADJR SW (TITANIUM) (11.558) |
CK1, 2 (06-36) (83I) |
2010-2011 |
01 |
| 032 |
15222980 |
KNOB, P/SEAT ADJR SW (CASHMERE) (11.558) |
CK1, 2 (06-36) (33I) |
2010-2011 |
01 |
| 033 |
15232598 |
HANDLE, P/SEAT RECL (INCLS 34) (EBONY) |
CK1, 2 (06-36) (A95, 19I, 88I) |
2010-2013 |
01 |
| 033 |
15232599 |
HANDLE, P/SEAT RECL (INCLS 34) (CASHMERE) |
CK1, 2, 3 (A95, 31I, 33I, 39I) (EXC HP2) |
2010-2010 |
01 |
| 033 |
15232600 |
HANDLE, P/SEAT RECL (INCLS 34) (TITANIUM) |
CK1, 2 (06-36) (A95, 83I) (EXC HP2) |
2010-2010 |
01 |
| 034 |
|
RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 33) |
|
2010-2011 |
|
| 035 |
25826400 |
COVER, P/SEAT ADJR FIN (INCLS 29) (EBONY) |
CK1, 2 (06-36) (AG2, AL0, A95, 19I) |
2010-2013 |
01 |
| 035 |
25826402 |
COVER, P/SEAT ADJR FIN (INCLS 29) (TITANIUM) (MANUAL) |
CK1, 2 (06-36) (AG2, AL0, A95, 83I) |
2010-2013 |
01 |
| 035 |
15882423 |
COVER, P/SEAT ADJR FIN (INCLS 29) (COCOA) (BELT UTILITY) |
CK1 (06) (41I) |
2010-2013 |
01 |
| 035 |
15214530 |
COVER, P/SEAT ADJR FIN (INCLS 29) (EBONY) (OUTBOARD, BELT UTILITY) |
CK1, 2 (06-36) (Y91, 19I) |
2010-2010 |
01 |
| 035 |
15219924 |
COVER, P/SEAT ADJR FIN (INCLS 29) (CASHMERE) (BELT UTILITY) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 035 |
25826401 |
COVER, P/SEAT ADJR FIN (INCLS 29) (CASHMERE) |
CK1, 2 (06-36) (AG2, AL0, A95, 33I) |
2010-2013 |
01 |
| 035 |
15214532 |
COVER, P/SEAT ADJR FIN (INCLS 29) (TITANIUM) (BELT UTILITY) |
CK1, 2 (06-36) (83I) (EXC HP2) |
2010-2010 |
01 |
| 036 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) |
|
2010-2013 |
08 |
| 037 |
|
PAD, P/SEAT BK (SEE GROUP 16.000 PASSENGER SIDE/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
