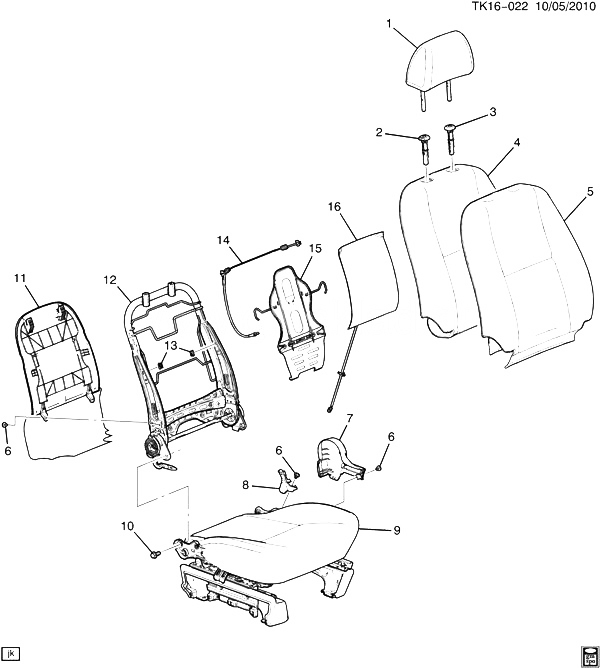

(TK16-022) 2010-2011 CK1(06) СИДЕНЬЕ ПАССАЖИРА/BUCKET-BACK (A95, HYBRID HP2) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25892830 RESTRAINT, P/SEAT HD (EBONY) CK1 (06) (A95, HP2, 193) 2010-2011 01
001 25892831 RESTRAINT, P/SEAT HD (CASHMERE) CK1 (06) (A95, HP2, 313, 333) 2010-2011 01
001 25892832 RESTRAINT, P/SEAT HD (TITANIUM) CK1 (06) (A95, HP2, 833) 2010-2011 01
002 25830473 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
002 25830474 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) 2010-2011 01
002 25830475 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
002 15279347 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2, 3 (19I) 2010-2011 02
002 15279353 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2010-2011 01
002 20912677 GUIDE, P/SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (41I) 2010-2011 02
002 25851751 GUIDE, P/SEAT H/RST (COCOA) (W/O BUTTON) CK1 (06) (41I) 2010-2011 02
002 20912675 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2, 3 (33I, 39I) 2010-2011 02
002 20912675 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2, 3 (31I) 2010-2011 02
002 20912679 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I) 2010-2011 02
002 20912680 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (33I, 39I) 2010-2011 02
002 20912676 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2010-2011 02
003 25830319 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) CK1 (06) (A95, HP2, 193) 2010-2011 01
003 25830320 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1 (06) (A95, HP2, 313, 333) 2010-2011 01
003 25830321 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1 (06) (A95, HP2, 833) 2010-2011 01
004 25983263 PAD, P/SEAT BK CK1 (06) (A95, HP2) 2010-2011 01
004 20772175 PAD, P/SEAT BK CK1, 2 (06-36) (AG1, AG2, A95, 193, 19V) 2010-2011 01
005 25983254 COVER, P/SEAT BK (W/HTR) (INCLS 16) (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
005 25983255 COVER, P/SEAT BK (INCLS 16) (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) 2010-2011 01
005 25983256 COVER, P/SEAT BK (INCLS 16) (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
006 11610936 SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (P/SEAT) 2010-2011 14
007 25972115 COVER, P/SEAT BELT BRKT (EBONY) CK1 (06) (A95, AG2, AL0, AM1, HP2, 193) 2010-2011 01
007 25972116 COVER, P/SEAT BELT BRKT (CASHMERE) CK1 (06) (A95, AG2, AL0, AM1, HP2, 333) 2010-2011 01
007 25972117 COVER, P/SEAT BELT BRKT (TITANIUM) CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) 2010-2011 01
008 25830379 COVER, P/SEAT RECL FIN (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
008 25830381 COVER, P/SEAT RECL FIN (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
008 25830380 COVER, P/SEAT RECL FIN (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) 2010-2011 01
009 PAD, P/SEAT CUSH (SEE GROUP 16.000 PASSENGER SEAT/BUCKET-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2010-2011
010 11561962 BOLT, P/SEAT (M10X1.25X25) (11.377) CK1 (HP2) 2010-2011 04
011 25895473 PANEL, P/SEAT BK MAP PKT FIL (EBONY) CK1 (06) (A95, HP2, 19I) 2010-2011 01
011 25895474 PANEL, P/SEAT BK MAP PKT FIL (CASHMERE) CK1 (06) (A95, HP2, 31I, 33I) 2010-2011 01
011 25895475 PANEL, P/SEAT BK MAP PKT FIL (TITANIUM) CK1 (06) (A95, HP2, 833) 2010-2011 01
012 25969255 FRAME, P/SEAT BK (PART OF 15) CK1 (06) (A95, HP2) 2010-2011 01
013 RETAINER, F/SEAT BK PAD (PART OF 15) 2010-2011
014 25830413 CABLE, P/SEAT RECL ACTR (PART OF 15) CK1 (06) (HP2) 2010-2011 01
015 25969254 SUPPORT, P/SEAT BK PAD (INCLS 12-14) CK1 (06) (A95, HP2) 2010-2011 01
016 HEATER, P/SEAT BK (PART OF 5) 2010-2011
