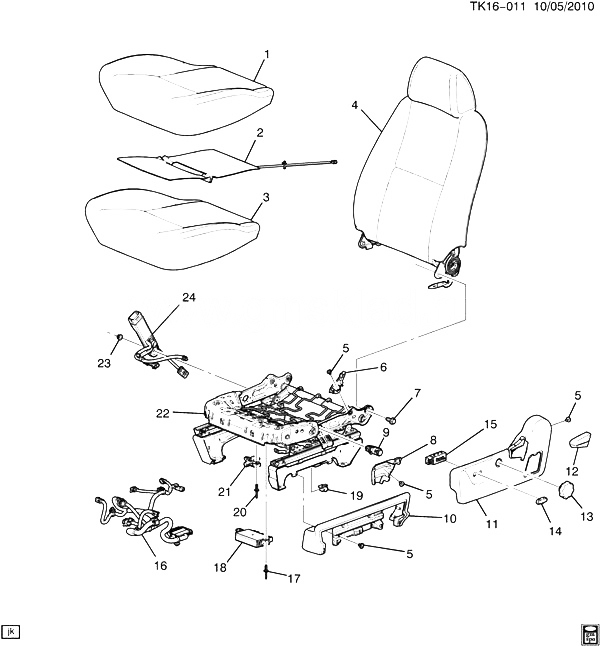

(TK16-011) 2010-2011 CK1(06) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-CUSHION (A95, HYBRID HP2) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
016 25958601 HARNESS, D/SEAT WRG CK1 (06) (AG2, AL0, AM1, A95, HP2, 193, 333, 833) 2010-2011 01
017 11516807 RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (D/SEAT CUSH FRM) 2010-2011 02
018 25862293 MODULE, D/SEAT P/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) CK1, 2 (06-36) (KA6) 2010-2011 01
019 11562261 CLIP, D/SEAT WRG CK1 (AG2, AL0, AM1, A95, HP2, 193, 333, 833) 2010-2011 02
020 11570740 RIVET, POP, .153 SHANK, .525 LONG, .312 OD, AL, PLN, .251-.375GRP RANG (D/SEAT VERT ADJR POSN SEN BRKT) 2010-2011 02
021 25937664 SENSOR, AIRBAG D/SEAT POSN (14.865) CK1 (06) (AG2, AL0, AM1, A95, HP2) 2010-2011 01
021 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1, 2 (06-36) (AL0, A95, 19I, 33I, 83I) 2010-2011 01
022 25944098 ADJUSTER, D/SEAT (INCLS 9) (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) CK1 (06) (A95, HP2) 2010-2011 01
023 15035434 NUT, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 2010-2011 04
024 19168661 BELT KIT, D/SEAT (BKL SI) (EBONY) CK1 (06) (A95, AG2, AL0, HP2, 193) 2010-2011 01
024 19168663 BELT KIT, D/SEAT (BKL SI) (TITANIUM) CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) 2010-2011 01
024 19168662 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1 (06) (A95, HP2, 333) 2010-2011 01
024 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (A95, 31I, 33I) 2010-2011 01
024 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (A95, 31I, 33I) 2010-2010 01
001 25983261 COVER, D/SEAT CUSH (INCLS 2) (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) 2010-2010 01
001 25983260 COVER, D/SEAT CUSH (INCLS 2) (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
001 25983262 COVER, D/SEAT CUSH (INCLS 2) (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
002 HEATER, D/SEAT CUSH (PART OF 1) 2010-2011
003 25983264 PAD, D/SEAT CUSH CK1 (06) (AG2, AL0, AM1, A95, HP2) 2010-2011 01
004 25983263 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) CK1 (06) (A95, HP2) 2010-2011 01
005 11610936 SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (D/SEAT) 2010-2011 14
006 25830379 COVER, D/SEAT RECL FIN (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
006 25830381 COVER, D/SEAT RECL FIN (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
006 25830380 COVER, D/SEAT RECL FIN (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) 2010-2011 01
007 11561962 BOLT, D/SEAT (M10X1.25X25) (11.377) CK1 (HP2) 2010-2011 04
008 25830342 COVER, D/SEAT INR ADJR RR FIN (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
008 25830344 COVER, D/SEAT INR ADJR RR FIN (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
008 25830343 COVER, D/SEAT INR ADJR RR FIN (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) 2010-2011 01
009 25902526 ACTUATOR, F/SEAT LUMBAR SUPT (PART OF 22) CK1 (06) (HP2) 2010-2011 01
010 25993427 COVER, D/SEAT ADJR BOLT FIN (TITANIUM) CK1 (06) (A95, HP2, 833) 2010-2011 01
011 25886545 COVER, D/SEAT CUSH OTR FIN PNL (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
011 25886547 COVER, D/SEAT CUSH OTR FIN PNL (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
011 25886546 COVER, D/SEAT CUSH OTR FIN PNL (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) 2010-2011 01
012 25830391 HANDLE, D/SEAT ADJR (EBONY) CK1 (06) (A95, HP2, 193) 2010-2011 01
012 25830392 HANDLE, D/SEAT ADJR (CASHMERE) CK1 (06) (A95, HP2, 313, 333) 2010-2011 01
012 25830393 HANDLE, D/SEAT ADJR (TITANIUM) CK1 (06) (A95, HP2, 833) 2010-2011 01
013 25830335 LEVER, D/SEAT LUMBAR SUPT ACTR (CASHMERE) (16.716) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) 2010-2011 01
013 25830336 LEVER, D/SEAT LUMBAR SUPT ACTR (TITANIUM) (16.716) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2010-2011 01
013 25830334 LEVER, D/SEAT LUMBAR SUPT ACTR (EBONY) (16.716) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2010-2011 01
014 15222980 KNOB, D/SEAT ADJR SW (CASHMERE) (11.558) CK1 (06-36) (33I) 2010-2011 01
014 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I) 2010-2011 01
014 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) (11.558) CK1 (06) (83I) 2010-2011 01
015 12451495 SWITCH, D/SEAT ADJR (6-WAY) (11.558) CK1, 2 (06) (AE7, AZ3, A95, AG1) 2010-2011 01
