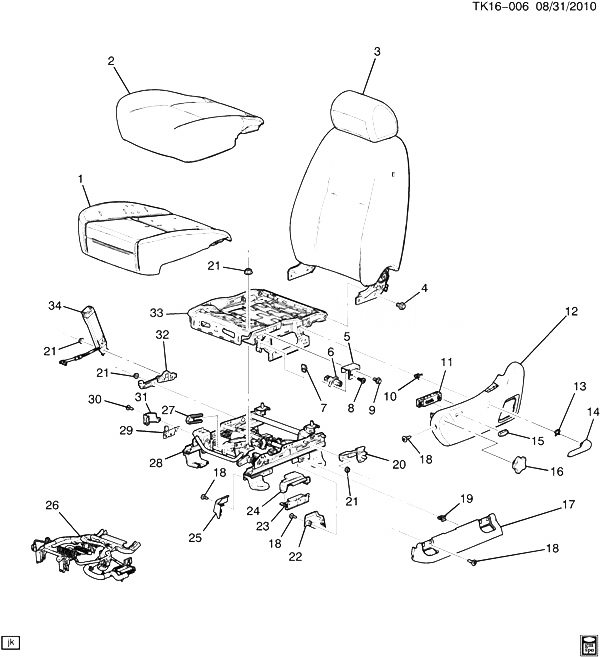

(TK16-006) 2010-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH-CUSHION(AZ3,AG1) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15243904 PAD, D/SEAT CUSH CK1, 2 (06-36) (AG1, AL0, AZ3, 19C, 33C) 2010-2013 01
001 25789849 PAD, D/SEAT CUSH (USED ON HEAT/COOL) CK1, 2 (41I) 2010-2011 01
002 20904108 COVER, D/SEAT CUSH (CASHMERE) CK1, 2, 3 (AZ3, 33C) 2010-2013 01
002 20833416 COVER, D/SEAT CUSH (EBONY) CK1, 2, 3 (AZ3, 19C) 2010-2013 01
003 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/SPLIT BENCH-BACK DETAILED ILLUSTRATED VIEW) 2010-2013
004 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2010-2013 08
005 25819555 BRACKET, D/SEAT LUMBAR SUPT ACTR CK1, 2, 3 2010-2013 01
006 25819556 ACTUATOR, D/SEAT LUMBAR SUPT CK1, 2, 3 (EXC HP2) 2010-2010 01
007 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2010-2013 02
008 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT ADJR ACTR) 2010-2013 02
009 BOLT, D/SEAT LUMBAR SUPT 2010-2013
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 12) 2010-2013 03
011 12451495 SWITCH, D/SEAT ADJR (6-WAY) (11.558) CK1, 2 (06) (AE7, AZ3, A95, AG1) 2010-2011 01
012 15882421 COVER, D/SEAT ADJR FIN (INCLS 10) (COCOA) (BELT UTILITY) CK1 (06) (41I) 2010-2013 01
012 25826396 COVER, D/SEAT ADJR FIN (INCLS 10) (EBONY) (OUTBOARD) CK1, 2 (06-36) (AG1, AZ3, 19I) 2010-2013 01
012 25826397 COVER, D/SEAT ADJR FIN (INCLS 10) (CASHMERE) (OUTBOARD) CK1, 2 (06-36) (AG1, AZ3, 33I) 2010-2013 01
012 25865813 COVER, D/SEAT ADJR FIN (INCLS 10) (CASHMERE) CK107 (06) (HP2, 33I) 2010-2010 01
012 15219925 COVER, D/SEAT ADJR FIN (INCLS 10) (CASHMERE) (BELT UTILITY) CK1, 2 (06-36) (33I, 39I) (EXC HP2) 2010-2010 01
012 25865812 COVER, D/SEAT ADJR FIN (INCLS 10) (EBONY) CK107 (06) (HP2, 19I) (EXC Y91) 2010-2010 01
012 15214527 COVER, D/SEAT ADJR FIN (INCLS 10) (EBONY) (BELT UTILITY) CK1, 2 (06-36) (X88, Z88, 19I) (EXC HP2) 2010-2010 01
013 RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 14) 2010-2013
014 15232595 HANDLE, D/SEAT RECL (INCLS 13) (CASHMERE) CK1, 2, 3 (AE7, AZ3, 33I, 39I) (EXC HP2) 2010-2013 01
014 15232594 HANDLE, D/SEAT RECL (INCLS 13) (EBONY) CK1, 2, 3 (AZ3, 19I, 88I) (EXC HP2) 2010-2013 01
015 15222980 KNOB, D/SEAT ADJR SW (CASHMERE) (11.558) CK1 (06-36) (33I) 2010-2012 01
015 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I) 2010-2013 01
016 15909613 KNOB, D/SEAT LUMBAR SUPT ACTR (CASHMERE) CK1, 2, 3 (AE7, AZ3, A95, 33I, 39I) 2010-2013 01
016 15909612 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) CK1, 2, 3 (AE7, AZ3, A95, 19I, 88I) 2010-2013 01
016 15909613 KNOB, D/SEAT LUMBAR SUPT ACTR (CASHMERE) CK1, 2, 3 (AZ3, A95, 31I) 2010-2011 01
017 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 19) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
017 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 19) (CASHMERE) (OUTBOARD) CK1, 2, 3 (33I, 39I) 2010-2013 01
018 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2010-2013 05
019 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 17) 2010-2013 02
020 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 (AL0) 2010-2013 01
021 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2010-2013 09
022 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
022 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
023 15827134 BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2010-2010 01
024 25952151 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88, Z88) (EXC HP2, Y91) 2010-2010 01
025 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2010-2013 01
025 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
026 20987419 HARNESS, D/SEAT ADJR WRG CK1, 2 (06-36) (AG1, AL0, AZ3, 19C, 33C) 2010-2011 01
027 25815788 CAP, F/SEAT ADJR TRK END (BLACK) CK1, 2, 3 2010-2011 02
028 22804418 ADJUSTER, D/SEAT (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) CK1, 2, 3 (AZ3, AG1) (EXC HP2) 2010-2010 01
029 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1, 2 (06-36) (AL0, AZ3, 19I, 33C) 2010-2013 01
030 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2010-2013 06
031 20900194 COVER, AIRBAG D/SEAT POSN SEN CK1, 2 (06-36) 2010-2013 01
032 25916854 BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) CK1, 2, 3 2010-2013 01
033 15854391 FRAME, D/SEAT CUSH CK1, 2, 3 2010-2011 01
034 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AZ3, 33I) 2010-2013 01
034 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) CK1, 2 (06-36) (AZ3, 19I) 2010-2013 01
