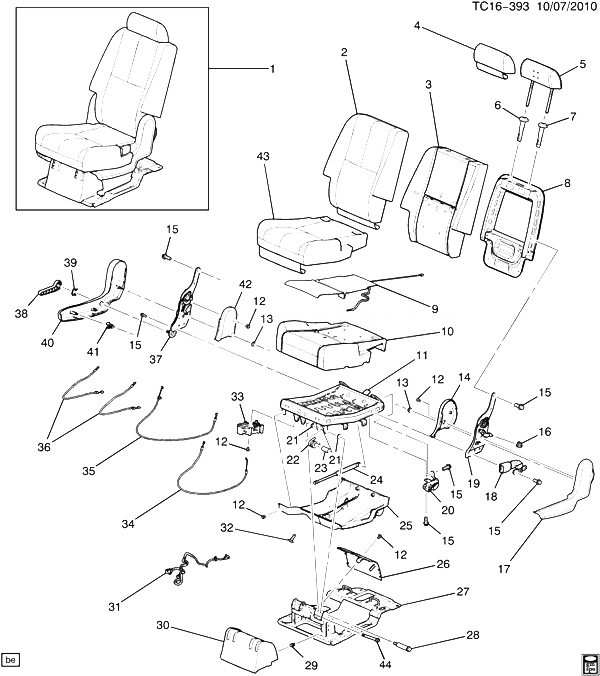

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 018 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 019 |
25896458 |
LATCH, R/SEAT BK (INBOARD) |
CK1, 2 (06) (AM8, KA6) (EXC HP2) |
2008-2011 |
01 |
| 020 |
15275888 |
LATCH, R/SEAT RSR (O/B) |
CK107 (06) (AM8) |
2007-2013 |
02 |
| 021 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2007-2013 |
08 |
| 022 |
15275901 |
SPRING, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
02 |
| 023 |
15275903 |
SPRING, R/SEAT RECL (MANDREL) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
02 |
| 024 |
15275905 |
STRUT, R/SEAT (USED ON 40% SIDE) |
CK1, 2 (06) (AM8) |
2007-2013 |
02 |
| 024 |
15930099 |
STRUT, R/SEAT (USED ON 60% SIDE) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 025 |
15279554 |
PANEL, R/SEAT CUSH TR (EBONY) (16.716) |
CK107 (06) (AM8, 19I) (EXC HP2) |
2007-2010 |
01 |
| 025 |
15279555 |
PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) |
CK107 (06) (AM8, 33I, 39I) (EXC HP2) |
2007-2010 |
01 |
| 025 |
22772253 |
PANEL, R/SEAT CUSH TR (TITANIUM) |
CK107 (06) (AM8, 83I) (EXC HP2) |
2010-2013 |
01 |
| 026 |
15279609 |
COVER, R/SEAT RSR FIN (EBONY) (REAR) |
CK107 (06) (AM8, 19I) |
2007-2011 |
01 |
| 026 |
15279610 |
COVER, R/SEAT RSR FIN (CASHMERE) (REAR) |
CK107 (06) (AM8, 33I, 39I) |
2007-2011 |
01 |
| 026 |
15279611 |
COVER, R/SEAT RSR FIN (TITANIUM) (REAR) |
CK107 (06) (AM8, 83I) |
2007-2011 |
01 |
| 027 |
22741877 |
RISER, R/SEAT |
CK107 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 028 |
11562379 |
BOLT, R/SEAT HGE (M10X1.5X92) |
CK1, 2, 3 |
2007-2011 |
02 |
| 029 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 30) |
|
2008-2013 |
|
| 030 |
15279599 |
COVER, R/SEAT RSR FIN (INCLS 29) (EBONY) (FRONT) |
CK107 (06) (AM8, 19I) |
2007-2013 |
01 |
| 030 |
15279600 |
COVER, R/SEAT RSR FIN (INCLS 29) (CASHMERE) (FRONT) |
CK107 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 030 |
15279601 |
COVER, R/SEAT RSR FIN (INCLS 29) (TITANIUM) (FRONT) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 031 |
15843761 |
HARNESS, ST RECL WRG (ELEMENT) (LH AND RH) |
CK107, 109, 2 (06) (AM8, ARS, 193, 333, 833) (EXC KA6, KB6, Y91) |
2009-2013 |
02 |
| 031 |
15843761 |
HARNESS, ST RECL WRG (ELEMENT) (LH AND RH) |
CK107, 109, 2 (06) (AM8, ARS, KB6, 196, 336, 836) (EXC KA6, Y91) |
2009-2013 |
02 |
| 001 |
15865243 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960015) |
CK107 (06) (AM8, ARS, 193) (EXC KA6, KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15865244 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960016) |
CK107 (06) (AM8, ARS, 333) (EXC KA6, KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15865245 |
SEAT, RR (TITANIUM) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960017) |
CK107 (06) (AM8, ARS, 833) (EXC KA6, KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15891360 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960213) |
CK107 (06) (AM8, ARS, KA6, 193) (EXC KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15891361 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960214) |
CK107 (06) (AM8, ARS, KA6, 333) (EXC KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15891362 |
SEAT, RR (TITANIUM) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960215) |
CK107 (06) (AM8, ARS, KA6, 833) (EXC KB6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
15914187 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20959985) |
CK107 (06) (AM8, 19C, 5T5) (1ST DES) |
2010-2010 |
01 |
| 001 |
20905021 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960041) |
CK107 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2010-2010 |
01 |
| 001 |
20905022 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960042) |
CK107 (06) (AM8, 33C) (1ST DES) |
2010-2010 |
01 |
| 001 |
20959985 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15914187) |
CK107 (06) (AM8, 19C, 5T5) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960015 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15865243) |
CK107 (06) (AM8, ARS, 193) (EXC KA6, KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960016 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15865244) |
CK107 (06) (AM8, ARS, 333) (EXC KA6, KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960017 |
SEAT, RR (TITANIUM) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15865245) |
CK107 (06) (AM8, ARS, 833) (EXC KA6, KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960041 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 20905021) |
CK107 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960042 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 20905022) |
CK107 (06) (AM8, 33C) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960085 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25931038) |
CK107 (06) (AM8, ARS, KA6, KB6, 196) (EXC Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960086 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25931039) |
CK107 (06) (AM8, ARS, KA6, KB6, 336) (EXC Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960087 |
SEAT, RR (TITANIUM) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25931040) |
CK107 (06) (AM8, ARS, KA6, KB6, 836) (EXC Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960133 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25931182) |
CK107 (06) (AM8, ARS, KB6, 196) (EXC KA6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960134 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25931183) |
CK107 (06) (AM8, ARS, KB6, 336) (EXC KA6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960213 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15891360) |
CK107 (06) (AM8, ARS, KA6, 193) (EXC KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960214 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15891361) |
CK107 (06) (AM8, ARS, KA6, 333) (EXC KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960215 |
SEAT, RR (TITANIUM) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15891362) |
CK107 (06) (AM8, ARS, KA6, 833) (EXC KB6, Y91) (2ND DES) |
2010-2010 |
01 |
| 001 |
25931038 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960085) |
CK107 (06) (AM8, ARS, KA6, KB6, 196) (EXC Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
25931039 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960086) |
CK107 (06) (AM8, ARS, KA6, KB6, 336) (EXC Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
25931040 |
SEAT, RR (TITANIUM) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960087) |
CK107 (06) (AM8, ARS, KA6, KB6, 836) (EXC Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
25931182 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960133) |
CK107 (06) (AM8, ARS, KB6, 196) (EXC KA6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
25931183 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960134) |
CK107 (06) (AM8, ARS, KB6, 336) (EXC KA6, Y91) (1ST DES) |
2010-2010 |
01 |
| 001 |
25931184 |
SEAT, RR (TITANIUM) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960135) |
CK107 (06) (AM8, ARS, KB6, 836) (EXC KA6, Y91) (1ST DES) |
2010-2010 |
01 |
| 002 |
25931396 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, KA6, KB6, 196) (EXC HP2) |
2009-2010 |
01 |
| 002 |
25931397 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) |
2009-2013 |
01 |
| 002 |
25931398 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 002 |
15865525 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865526 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865527 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15914204 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2013 |
01 |
| 002 |
20905045 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 002 |
20905046 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 33C) |
2010-2013 |
01 |
| 003 |
15291598 |
PAD, R/SEAT BK |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 004 |
|
COVER, R/SEAT H/RST SUPT (PART OF 5) |
|
2008-2013 |
|
| 005 |
15824670 |
RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) |
CK107 (06) (AM8, 833) |
2007-2010 |
02 |
| 005 |
15824670 |
RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) |
CK107 (06) (AM8, 836) |
2009-2010 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 394) |
2007-2010 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2010 |
02 |
| 005 |
20758015 |
RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) |
CK107 (06) (AM8, 83C) |
2009-2010 |
02 |
| 005 |
20905030 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK107 (06) (AM8, 19C) |
2010-2010 |
02 |
| 005 |
20905031 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK107 (06) (AM8, 33C) |
2010-2010 |
02 |
| 005 |
15865813 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK107 (06) (AM8, 193) |
2007-2010 |
02 |
| 005 |
15865813 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK107 (06) (AM8, 196) |
2009-2010 |
02 |
| 005 |
15824669 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK107 (06) (AM8, 33I) |
2009-2010 |
02 |
| 005 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 194) (EXC AX4) |
2007-2010 |
02 |
| 005 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 197) |
2009-2010 |
02 |
| 005 |
15824676 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
K107 (06) (AM8, AX4, 194) (EXPORT) |
2008-2010 |
02 |
| 006 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2007-2011 |
02 |
| 006 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I) |
2007-2011 |
02 |
| 006 |
20912676 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2007-2011 |
02 |
| 007 |
20912679 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06) (AM8, 19I, 22I) |
2007-2011 |
02 |
| 007 |
20912680 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (33I, 39I) |
2007-2011 |
02 |
| 007 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06-36) (83I, 84I) |
2007-2011 |
02 |
| 008 |
15269763 |
FRAME, R/SEAT BK |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 009 |
15824761 |
HEATER, R/SEAT CUSH |
CK1, 2 (06) (KA6) |
2007-2013 |
01 |
| 010 |
15291600 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 011 |
15269765 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 012 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2013 |
09 |
| 013 |
11562384 |
NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2007-2013 |
02 |
| 014 |
15279530 |
COVER, R/SEAT BK HGE FIN (EBONY) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2011 |
01 |
| 014 |
15279531 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2011 |
01 |
| 014 |
15279532 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2011 |
01 |
| 015 |
11562378 |
BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
12 |
| 016 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (16.716) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963265) |
CK1, 2, 3 (1ST DES) |
2010-2010 |
02 |
| 016 |
20963265 |
KNOB, R/SEAT LAT (EBONY) (INNER) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15279464) |
CK1, 2 (06) (2ND DES) |
2010-2010 |
02 |
| 017 |
15279504 |
COVER, R/SEAT BK HGE FIN (INCLS 41) (EBONY) (INBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 19I) |
2007-2011 |
01 |
| 017 |
15279505 |
COVER, R/SEAT BK HGE FIN (INCLS 41) (CASHMERE) (INBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 33I, 39I) |
2007-2011 |
01 |
| 017 |
15279506 |
COVER, R/SEAT LAT FIN (TITANIUM) (INBOARD, OUTER) (16.720) |
CK107 (06) (AM8, 83C) |
2009-2011 |
01 |
| 017 |
15279506 |
COVER, R/SEAT LAT FIN (INCLS 41) (TITANIUM) (INBOARD, OUTER) (16.720) |
CK107 (06) (AM8, 833) (EXC ARS, HP2, KA6, KB6, Y91) |
2009-2011 |
01 |
| 018 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 018 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2013 |
01 |
| 031 |
15843763 |
HARNESS, ST RECL WRG (ELEMENT) |
CK107, 109, 2 (06) (AM8, ARS, KA6) (EXC Y91) |
2007-2013 |
01 |
| 032 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
02 |
| 032 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
02 |
| 032 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2007-2013 |
02 |
| 033 |
15824750 |
ACTUATOR, R/SEAT RECL (INCLS CABLE) |
CK1, 2 (06) (AM8, ARS) |
2007-2013 |
01 |
| 034 |
15942228 |
CABLE, R/SEAT BK LAT |
CK1, 2 (06) (AM8, ARS) |
2007-2013 |
01 |
| 034 |
15942229 |
CABLE, R/SEAT BK LAT |
CK1, 2 (06) (AM8, ARS) |
2007-2013 |
02 |
| 035 |
25816416 |
CABLE, R/SEAT LAT (INBOARD) (INBOARD MASTER SYNC) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2011 |
01 |
| 036 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2011 |
02 |
| 037 |
25896457 |
LATCH, R/SEAT BK (OUTBOARD) |
CK1 (06) (AM8, KA6) (EXC HP2) |
2008-2011 |
01 |
| 038 |
15279429 |
HANDLE, R/SEAT RECL (INCLS 39) (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2013 |
01 |
| 038 |
25858446 |
HANDLE, R/SEAT RECL (INCLS 39) (COCOA) |
CK1 (06) (AM8, 41I) |
2009-2013 |
01 |
| 038 |
15279419 |
HANDLE, R/SEAT RECL (INCLS 39) (EBONY) |
CK1, 2 (06) (19I) |
2007-2013 |
01 |
| 038 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) |
CK1, 2 (06) (33I) |
2007-2013 |
01 |
| 038 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) |
CK1 (06) (39I) |
2007-2013 |
01 |
| 039 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 38) |
|
2008-2013 |
|
| 040 |
15279484 |
COVER, R/SEAT BK HGE FIN (INCLS 41) (EBONY) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2010 |
01 |
| 040 |
15279485 |
COVER, R/SEAT BK HGE FIN (INCLS 41) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2010 |
01 |
| 040 |
15279486 |
COVER, R/SEAT BK HGE FIN (INCLS 41) (TITANIUM) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2011 |
01 |
| 041 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 17, 40) |
|
2008-2013 |
|
| 042 |
15279494 |
COVER, R/SEAT BK HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2010 |
01 |
| 042 |
15279495 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2010 |
01 |
| 042 |
15279496 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2011 |
01 |
| 043 |
25931402 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, KA6, KB6, 196) (EXC HP2) |
2009-2010 |
01 |
| 043 |
25931403 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) |
2009-2013 |
01 |
| 043 |
25931404 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 043 |
15865714 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
15865715 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
15865716 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) |
2009-2013 |
01 |
| 043 |
15914208 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2013 |
01 |
| 043 |
20905039 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 043 |
20905040 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 33C) |
2010-2013 |
01 |
| 044 |
11570031 |
PIN, R/SEAT HGE (6 X 1 X 78) |
CK1, 2 (06) |
2007-2013 |
01 |
| 044 |
11570032 |
PIN, R/SEAT HGE (6 X 1 X 98) |
CK1, 2 (06) |
2007-2013 |
01 |
