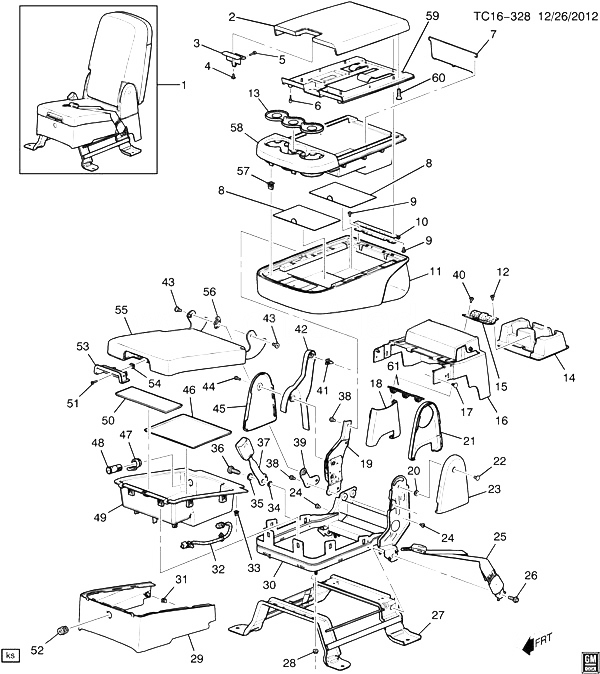

(TC16-328) 2008-2013 CK1,2(06-36) FRONT CENTER SEAT/SPLIT BENCH (AZ3) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20904095 SEAT, FRT CTR (INCLS 2-51, 53-60) (EBONY) CK1, 2 (06-36) (AZ3, 19C) 2010-2013 01
001 20904096 SEAT, FRT CTR (INCLS 2-51, 53-60) (CASHMERE) CK1, 2 (06-36) (AZ3, 33C) 2010-2013 01
001 25997594 SEAT, FRT CTR (INCLS 2-51, 53-60) (EBONY) CK1, 2 (06) (AL0, AZ3, 19V) (EXC AG1, 9S1) 2010-2013 01
002 20864151 LID, F/SEAT A/RST (PART OF 11) (INCLS 3) (EBONY) (INCLS LATCH) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
002 20864153 LID, F/SEAT A/RST (PART OF 11) (INCLS 3) (CASHMERE) (INCLS LATCH) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
002 20864154 LID, F/SEAT A/RST (PART OF 11) (INCLS 3) (TITANIUM) (INCLS LATCH) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
002 20864153 LID, F/SEAT A/RST (PART OF 11) (INCLS 3) (CASHMERE) (INCLS LATCH) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
002 20864154 LID, F/SEAT A/RST (PART OF 11) (INCLS 3) (TITANIUM) (INCLS LATCH) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
003 LATCH, F/SEAT CTR STOR COMPT DR (PART OF 2, 11) 2008-2013
004 BOLT, F/FLR CNSL A/RST HGE (PART OF 11) 2008-2013
005 25867513 BUMPER, F/SEAT A/RST (PART OF 11) CK1, 2, 3 (AZ3) 2008-2013 01
006 25867513 BUMPER, F/SEAT A/RST (PART OF 11) CK1, 2, 3 (AZ3) 2008-2013 01
008 25916917 LINER, F/SEAT A/RST COMPT (PART OF 11) (EBONY) (IN SEAT BACK 20% SEAT) CK1, 2, 3 (AZ3) 2008-2013 01
009 BOLT, F/SEAT (PART OF 11) 2008-2013
010 HINGE, F/SEAT CTR STOR COMPT DR (PART OF 11) 2008-2013
011 25864329 ARMREST, F/SEAT (INCLS 2-10, 57, 58-60) (EBONY) CK1, 2 (06) (AZ3, 19V) 2008-2013 01
011 20904119 ARMREST, F/SEAT (INCLS 2-10, 57, 58-60) (EBONY) (W/CUP HOLDER) CK1, 2, 3 (AZ3, 19C) 2010-2013 01
011 20904120 ARMREST, F/SEAT (INCLS 2-10, 57, 58-60) (CASHMERE) CK1, 2, 3 (AZ3, 33C) 2010-2013 01
012 BOLT, RR CTR ST CUP HLDR HSG (PART OF 14) 2008-2013
013 15914587 LINER, P/SEAT CUP HLDR (EBONY) CK1, 2, 3 (AZ3) 2008-2013 01
014 15914571 HOLDER, FRT CTR ST CUP (INCLS 12) (EBONY) (LOCATED AT THE REAR OF THE CENTER SEAT) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
014 15914572 HOLDER, FRT CTR ST CUP (INCLS 12) (CASHMERE) (LOCATED AT THE REAR OF THE CENTER SEAT) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
014 15914572 HOLDER, FRT CTR ST CUP (INCLS 12) (CASHMERE) (LOCATED AT THE REAR OF THE CENTER SEAT) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
015 25867512 HINGE, F/SEAT A/RST CUP HLDR CK1, 2, 3 (AZ3) 2008-2013 01
016 15914561 COVER, F/SEAT CUSH RR FRM CTR (EBONY) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
016 15914562 COVER, F/SEAT CUSH RR FRM CTR (CASHMERE) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
016 15914563 COVER, F/SEAT CUSH RR FRM CTR (TITANIUM) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
016 15914562 COVER, F/SEAT CUSH RR FRM CTR (CASHMERE) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
016 15914563 COVER, F/SEAT CUSH RR FRM CTR (TITANIUM) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
017 11570867 RETAINER, F/SEAT STOW COMPT (BLUE NYLON PUSH PIN) CK1, 2, 3 (AZ3) 2008-2013 AR
018 15914548 COVER, F/SEAT A/RST HGE FIN (EBONY) (INNER) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
018 15914549 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (INNER) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
018 15914549 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (INNER) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
018 15914550 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (INNER) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
018 15914550 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (INNER) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
020 25867506 SPACER, F/SEAT CUSH PAD CK1, 2, 3 (AZ3) 2008-2013 01
021 15914540 COVER, F/SEAT A/RST HGE FIN (EBONY) (INNER) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
021 15914541 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (INNER) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
021 15914541 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (INNER) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
021 15914542 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (INNER) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
021 15914542 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (INNER) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
022 11570867 RETAINER, F/SEAT STOW COMPT (BLUE NYLON PUSH PIN) CK1, 2, 3 (AZ3) 2008-2013 AR
023 15914544 COVER, F/SEAT A/RST HGE FIN (EBONY) (OUTER) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
023 15914545 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (OUTER) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
023 15914545 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (OUTER) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
023 15914546 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (OUTER) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
023 15914546 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (OUTER) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
024 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (F/SEAT A/RST HGE FIN CVR) 2008-2013 02
025 BELT, F/SEAT CTR (*KIT1) 2008-2013
026 BOLT, F/CTR SEAT BELT RETR (AE7) 2008-2013
027 20779147 RISER, FRT CTR ST CK1, 2, 3 (AZ3) 2010-2013 01
028 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT CUSH FRM) 2008-2013 08
029 20779150 COVER, F/SEAT CUSH CTR (INCLS 31) (EBONY) CK1, 2, 3 (AZ3, 19I) 2010-2013 01
029 20779151 COVER, F/SEAT CUSH CTR (INCLS 31) (CASHMERE) CK1, 2, 3 (AZ3, 33I) 2010-2013 01
029 20779152 COVER, F/SEAT CUSH CTR (INCLS 31) (TITANIUM) CK1, 2, 3 (AZ3, 83I) 2010-2013 01
029 20779151 COVER, F/SEAT CUSH CTR (INCLS 31) (CASHMERE) CK1, 2, 3 (AZ3, 31I) 2010-2011 01
029 20779152 COVER, F/SEAT CUSH CTR (INCLS 31) (TITANIUM) CK1, 2, 3 (AZ3, 84I) 2010-2011 01
030 FRAME, F/SEAT 2008-2013
031 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 29) 2008-2013 AR
032 15914551 HARNESS, F/SEAT CTR WRG CK1, 2 (06-36) (AL0, AZ3) 2008-2013 01
033 11588650 CLIP, 12X14X16.6, GM4345M (F/SEAT CUSH SI FAC) 2008-2013 AR
034 NUT, F/SEAT CTR BELT (*KIT1) 2008-2013
035 WASHER, F/SEAT CTR BELT (*KIT1) 2008-2013
036 BOLT, F/CTR SEAT BELT RETR (*KIT1) 2008-2013
037 BELT, F/SEAT CTR (*KIT1) 2008-2013
038 12473319 BOLT, F/CTR SEAT BELT BKL (M12X1.75X37) (HEX) (OUTER) (16.682) CK1, 2, 3 2008-2013 01
039 25867507 BRACKET, F/SEAT CUSH FRM FRT (CTR SEAT) CK1, 2, 3 (AZ3) 2008-2013 01
040 11609456 SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (F/SEAT) 2008-2013 03
041 11570864 RETAINER, F/SEAT A/RST TR (PART OF 42) CK1, 2, 3 (AZ3) 2008-2013 01
042 25867509 COVER, F/SEAT A/RST BOLT ACC HOLE (INCLS 41) (EBONY) (CENTER SEAT) (MAY NEED TO ORDER CLIP 11570864) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
042 25867510 COVER, F/SEAT A/RST BOLT ACC HOLE (INCLS 41) (CASHMERE) (CENTER SEAT) (MAY NEED TO ORDER CLIP 11570864) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
042 25867511 COVER, F/SEAT A/RST BOLT ACC HOLE (INCLS 41) (TITANIUM) (CENTER SEAT) (MAY NEED TO ORDER CLIP 11570864) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
042 25867510 COVER, F/SEAT A/RST BOLT ACC HOLE (INCLS 41) (CASHMERE) (CENTER SEAT) (MAY NEED TO ORDER CLIP 11570864) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
042 25867511 COVER, F/SEAT A/RST BOLT ACC HOLE (INCLS 41) (TITANIUM) (CENTER SEAT) (MAY NEED TO ORDER CLIP 11570864) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
043 11570859 BOLT, F/SEAT BK PIV (M8X1.25X25 10 THD) CK1, 2, 3 (AZ3) 2008-2013 02
044 11570858 BOLT, F/SEAT CTR STOR COMPT (M8X1.25X25 15 THD) CK1, 2, 3 (AZ3) 2008-2013 01
045 15914536 COVER, F/SEAT A/RST HGE FIN (EBONY) (OUTER) CK1, 2, 3 (AZ3, 19I) 2008-2013 01
045 15914537 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (OUTER) CK1, 2, 3 (AZ3, 31I) 2008-2011 01
045 15914537 COVER, F/SEAT A/RST HGE FIN (CASHMERE) (OUTER) CK1, 2, 3 (AZ3, 33I) 2008-2013 01
045 15914538 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (OUTER) CK1, 2, 3 (AZ3, 84I) 2008-2011 01
045 15914538 COVER, F/SEAT A/RST HGE FIN (TITANIUM) (OUTER) CK1, 2, 3 (AZ3, 83I) 2008-2013 01
046 15914554 LINER, F/SEAT A/RST COMPT (LARGE) (IN BASE UNIT 20% SEAT) CK1, 2, 3 (AZ3) 2008-2013 01
050 15914555 LINER, F/SEAT A/RST COMPT (SMALL) (IN BASE UNIT 20% SEAT) CK1, 2, 3 (AZ3) 2008-2013 01
051 BOLT, F/SEAT STOR TRAY LAT (PART OF 55) 2008-2013
052 25811106 CYLINDER KIT, F/SEAT CUSH CTR STOW COMPT LK (UNCODED) CK1, 2, 3 (AZ3) 2008-2013 01
053 LATCH, F/SEAT CTR STOR COMPT DR (PART OF 55) 2008-2013
054 NUT, F/SEAT STOW COMPT (PART OF 55) 2008-2013
055 25775932 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (EBONY) CK1, 2, 3 (AZ3, 193) 2008-2013 01
055 25775933 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (CASHMERE) CK1, 2, 3 (AZ3, 313) 2009-2011 01
055 25775934 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (TITANIUM) CK1, 2, 3 (AZ3, 843) 2008-2011 01
055 25775932 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (EBONY) CK1, 2, 3 (AZ3, 19V) 2008-2013 01
055 20904111 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (EBONY) CK1, 2, 3 (AZ3, 19C) 2010-2013 01
055 20904112 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (CASHMERE) CK1, 2, 3 (AZ3, 33C) 2010-2013 01
055 20904113 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (TITANIUM) CK1, 2, 3 (AZ3, 83C) 2010-2013 01
055 20904112 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (CASHMERE) CK1, 2, 3 (AZ3, 31C) 2010-2011 01
055 20904113 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (TITANIUM) CK1, 2, 3 (AZ3, 84C) 2010-2011 01
055 25775934 CUSHION, F/SEAT CTR (INCLS 51, 53, 54) (TITANIUM) CK1, 2, 3 (AZ3, 833) 2008-2013 01
056 20861562 PLATE, F/SEAT A/RST PIV CK1, 2, 3 (AZ3) 2008-2013 01
057 11570864 RETAINER, F/SEAT A/RST TR (PART OF 11) CK1, 2, 3 (AZ3) 2008-2013 01
058 COVER, F/SEAT A/RST (PART OF 11) 2008-2013
059 20864150 COVER, F/SEAT A/RST (PART OF 11) (INNER COVER) (W/O CUP HOLDER) CK1, 2, 3 (AZ3) 2008-2013 01
060 11609509 SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 11) 2008-2013 AR
061 22889274 BRACKET, F/SEAT A/RST CK1, 2 (06) (AL0, AZ3) 2008-2013 01
K01 19177726 BELT KIT, F/SEAT CTR (INCLS 25, 34-37) (CASHMERE) (BKL/LAT) CK1, 2 (06) (AZ3, AL0, 31I, 33I) 2008-2011 01
K01 19177727 BELT KIT, F/SEAT CTR (INCLS 25, 34-37) (TITANIUM) (BKL/LAT) CK1, 2 (06) (AZ3, 83I) 2008-2013 01
K01 19177725 BELT KIT, F/SEAT CTR (INCLS 25, 34-37) (EBONY) (BKL/LAT) CK1, 2 (06-36) (AZ3, 19I) 2008-2013 01
