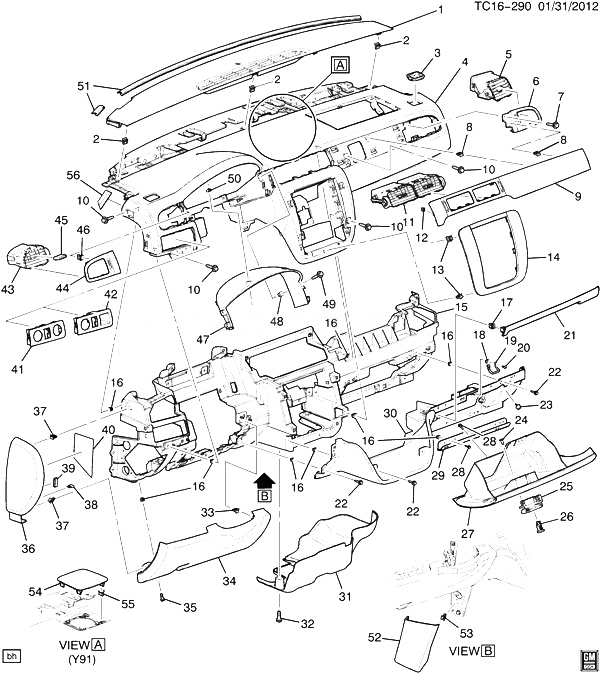

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 041 |
25810643 |
PLATE, HDLP SW TR (EBONY) |
K1, 2 (06-36) (X88, Z88, 19I, 33I, 39I, 83I) (EXC NR3) |
2009-2013 |
01 |
| 043 |
15897763 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 45) (PART OF 44) (EBONY) |
CK1, 2 (06) (X88, Z88) |
2008-2013 |
01 |
| 044 |
25807743 |
PLATE, I/P TR (INCLS 43, 45, 46) (METALLIC BRUSH) |
CK1, 2 (06-36) (X88, 19I, 31I, 83I, 84I) (EXC T1U) |
2010-2011 |
01 |
| 044 |
20935561 |
PLATE, I/P TR (INCLS 43, 45, 46) (WALNUT) |
CK1, 2 (06-36) (SLT, STZ, T1U, X88, 19I, 33I, 83I) (EXC BPH) |
2010-2013 |
01 |
| 045 |
22792286 |
KNOB, I/P OTR AIR OTLT (PART OF 43, 44) |
CK1, 2 (06) (X88, Z88) |
2008-2013 |
01 |
| 046 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 45) |
|
2008-2013 |
01 |
| 047 |
25804701 |
COVER, I/P CSTR TR PLT (EBONY) (WHEN REPLACING 15870202 USE T/W 25804699) |
CK1, 2, 3 (19I, 31I, 33I, 39I, 83I, 85I) |
2010-2013 |
01 |
| 048 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 4) (10.701) |
|
2008-2013 |
02 |
| 049 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (I/P CSTR TR PLT) |
|
2008-2013 |
04 |
| 050 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 4) (ACDelco #11513599) |
|
2008-2013 |
02 |
| 051 |
|
SEAL, I/P UPR T/PNL (PART OF 1) |
|
2008-2013 |
|
| 052 |
25776427 |
BEZEL, I/P LWR BR (INCLS 53) (EBONY) |
CK1, 2, 3 (X88, Z88, 19I, 31I, 33I, 83I, 84I, 85I, 88I) |
2008-2011 |
01 |
| 052 |
15848247 |
BEZEL, I/P LWR BR (INCLS 53) (EBONY) |
CK1, 2, 3 (X88, Z88, 19I, 31I, 33I, 83I, 84I, 85I, 88I) (EXC D07, E29) |
2008-2011 |
01 |
| 052 |
25776428 |
BEZEL, I/P LWR BR (INCLS 53) (CASHMERE) |
CK1, 2 (06-36) (X88, Z88, 33I, 39I) |
2008-2013 |
01 |
| 052 |
15848248 |
BEZEL, I/P LWR BR (INCLS 53) (CASHMERE) |
CK1, 2, 3 (X88, Z88, 33I) (EXC D07, E29) |
2009-2013 |
01 |
| 052 |
15848249 |
BEZEL, I/P LWR BR (INCLS 53) (TITANIUM) |
CK1, 2, 3 (X88, Z88, 83I) (EXC D07) |
2008-2013 |
01 |
| 052 |
25776429 |
BEZEL, I/P LWR BR (INCLS 53) (TITANIUM) |
CK1, 2 (X88, Z88, 83I) |
2008-2013 |
01 |
| 053 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 52) |
|
2008-2013 |
04 |
| 054 |
25795255 |
GRILLE, RDO FRT SPKR (INCLS 55) (TITANIUM) |
CK1 (06-36) (STZ, 83I) |
2009-2013 |
01 |
| 054 |
25918994 |
GRILLE, RDO FRT SPKR (INCLS 55) (CASHMERE) |
CK1 (06-36) (STZ, 33I) |
2009-2013 |
01 |
| 054 |
15248601 |
GRILLE, RDO FRT SPKR (INCLS 55) (EBONY) |
CK1 (06-36) (STZ, 19I) |
2009-2013 |
01 |
| 055 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 54) |
|
2008-2013 |
04 |
| 056 |
15902289 |
FILLER, I/P UPR T/PNL OTR COR |
CK1, 2 (06-36) (X88, Z88) |
2008-2013 |
02 |
| 001 |
20844035 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 51) (EBONY) (W/O SI OUTLET GRILLES) |
CK1, 2, 3 (19I, 31I, 84I, 85I) |
2010-2011 |
01 |
| 001 |
20844036 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 51) (CASHMERE) |
CK1, 2, 3 (33I) |
2008-2011 |
01 |
| 001 |
20844037 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 51) (TITANIUM) |
CK1, 2, 3 (83I, 88I) |
2008-2011 |
01 |
| 001 |
20844038 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 51) (COCOA) |
CK1, 2 (39I, 41I) |
2009-2011 |
01 |
| 002 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) |
|
2008-2013 |
07 |
| 003 |
15794132 |
DEFLECTOR, VENT OTLT (PART OF 4) (EBONY) |
CK1 (06-36) (STZ, 19I) |
2009-2013 |
01 |
| 003 |
15794133 |
DEFLECTOR, VENT OTLT (PART OF 4) (EBONY) |
CK1 (06-36) (STZ, 19I) |
2009-2013 |
01 |
| 003 |
15794138 |
DEFLECTOR, VENT OTLT (PART OF 4) (TITANIUM) |
CK1, 2 (06) (X88, Z88, 83I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794139 |
DEFLECTOR, VENT OTLT (PART OF 4) (TITANIUM) |
CK1, 2 (06) (X88, Z88, 83I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794132 |
DEFLECTOR, VENT OTLT (PART OF 4) (EBONY) |
CK1, 2 (06) (X88, Z88, 19I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794133 |
DEFLECTOR, VENT OTLT (PART OF 4) (EBONY) |
CK1, 2 (06) (X88, Z88, 19I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794134 |
DEFLECTOR, VENT OTLT (PART OF 4) (CASHMERE) |
CK1 (06-36) (STZ, 33I) |
2009-2013 |
01 |
| 003 |
15794134 |
DEFLECTOR, VENT OTLT (PART OF 4) (CASHMERE) |
CK1, 2 (06) (X88, Z88, 33I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794135 |
DEFLECTOR, VENT OTLT (PART OF 4) (CASHMERE) |
CK1 (06-36) (STZ, 33I) |
2009-2013 |
01 |
| 003 |
15794135 |
DEFLECTOR, VENT OTLT (PART OF 4) (CASHMERE) |
CK1, 2 (06) (X88, Z88, 33I) (EXC STZ, Y91) |
2009-2013 |
01 |
| 003 |
15794138 |
DEFLECTOR, VENT OTLT (PART OF 4) (TITANIUM) |
CK1 (06-36) (STZ, 83I) |
2009-2013 |
01 |
| 003 |
15794139 |
DEFLECTOR, VENT OTLT (PART OF 4) (TITANIUM) |
CK1 (06-36) (STZ, 83I) |
2009-2013 |
01 |
| 004 |
20959602 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (EBONY) |
CK1 (06-36) (STZ, 19I) |
2009-2011 |
01 |
| 004 |
20959605 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (CASHMERE) |
CK1 (06-36) (STZ, 33I) |
2009-2011 |
01 |
| 004 |
20959608 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (CASHMERE) |
CK1, 2 (06-36) (X88, Z88, 33I) (EXC STZ, Y91) |
2008-2011 |
01 |
| 004 |
20959604 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (TITANIUM) |
CK1 (06-36) (STZ, 83I) |
2009-2011 |
01 |
| 004 |
20959607 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (EBONY) |
CK1, 2 (06-36) (X88, Z88, 19I) (EXC STZ, Y91) |
2009-2011 |
01 |
| 004 |
20959609 |
PANEL, I/P UPR TR (INCLS 3, 48, 50) (TITANIUM) |
CK1, 2 (06-36) (X88, Z88, 83I) (EXC STZ, Y91) |
2009-2011 |
01 |
| 005 |
15897761 |
DEFLECTOR, I/P OTR AIR OTLT (PART OF 6) (EBONY) |
CK1, 2 (06) (X88, Z88) |
2008-2013 |
01 |
| 006 |
25807742 |
PLATE, I/P TR (INCLS 5) (METALLIC BRUSH) |
CK1, 2 (06-36) (X88, Z88, 19I, 33I, 39I, 83I) |
2009-2013 |
01 |
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P TR PLT) (9.665) |
|
2008-2013 |
01 |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9) |
|
2008-2013 |
07 |
| 009 |
20935588 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (WALNUT) |
CK1, 2 (06-36) (UK3, X88, 19I, 33I, 83I) (EXC BPH) |
2009-2013 |
01 |
| 009 |
20935588 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (WALNUT) |
CK1, 2 (06-36) (T1U, UK3, X88, 19I, 33I, 83I) (EXC BPH) |
2010-2013 |
01 |
| 009 |
20935584 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (METALLIC BRUSH) |
CK1, 2 (06-36) (BPH, UK3, X88, 19I, 33I, 83I) (EXC T1U) |
2010-2013 |
01 |
| 009 |
20935584 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (METALLIC BRUSH) |
CK1, 2 (06-36) (UK3, X88, 19I, 33I, 83I) (EXC BPH, SLT, T1U) |
2010-2013 |
01 |
| 009 |
20935586 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (METALLIC BRUSH) |
CK1, 2 (06-36) (BPH, X88, 19I, 33I, 83I) (EXC T1U, UK3) |
2010-2013 |
01 |
| 009 |
20935586 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (METALLIC BRUSH) |
CK1, 2 (06-36) (X88, 19I, 33I, 83I) (EXC BPH, SLT, T1U, UK3) |
2010-2013 |
01 |
| 009 |
25887449 |
PLATE, I/P CTR TR (INCLS 8, 11, 12) (WALNUT) |
CK1, 2 (06-36) (SLT, STZ, X88, 19I, 33I, 83I) (EXC BPH, UK3) |
2009-2013 |
01 |
| 010 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P UPR) (9.665) |
|
2008-2013 |
20 |
| 011 |
15897765 |
DEFLECTOR, I/P CTR AIR OTLT (PART OF 9) (EBONY) |
CK1, 2 (06) (X88, Z88) |
2008-2013 |
01 |
| 011 |
15897767 |
DEFLECTOR, I/P CTR AIR OTLT (PART OF 9) (EBONY) |
CK1, 2 (06) (X88, Z88) |
2008-2013 |
01 |
| 012 |
25535427 |
CLIP, I/P ACSRY CTR TR PLT (PART OF 9) (CLAMP TYPE) (1.269) |
CK1, 2, 3 |
2008-2013 |
01 |
| 013 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 14) |
|
2008-2013 |
09 |
| 014 |
25887440 |
PLATE, I/P ACSRY CTR TR (INCLS 13) (GASTON WALNUT) |
CK1, 2 (06) (SLT, X88, 19I, 33I, 83I) (EXC BPH) |
2009-2013 |
01 |
| 014 |
25807746 |
PLATE, I/P ACSRY CTR TR (INCLS 13) (METALLIC BRUSH) |
CK1, 2 (06-36) (BPH, X88, 19I, 33I, 83I) (EXC T1U) |
2010-2013 |
01 |
| 014 |
25807746 |
PLATE, I/P ACSRY CTR TR (INCLS 13) (METALLIC BRUSH) |
CK1, 2 (06-36) (X88, 19I, 33I, 83I) (EXC BPH, SLT, T1U) |
2010-2013 |
01 |
| 014 |
25887440 |
PLATE, I/P ACSRY CTR TR (INCLS 13) (GASTON WALNUT) |
CK1, 2 (06) (T1U, X88, 19I, 33I, 83I) (EXC BPH) |
2010-2013 |
01 |
| 014 |
25887440 |
PLATE, I/P ACSRY CTR TR (INCLS 13) (GASTON WALNUT) |
CK1, 2 (06) (STZ, X88, 19I, 33I, 83I) (EXC BPH) |
2009-2013 |
01 |
| 015 |
20959613 |
PANEL, I/P LWR TR (INCLS 16) |
CK1, 2 (06-36) (X88, Z88) |
2008-2011 |
01 |
| 016 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 15) (10.701) |
|
2008-2013 |
01 |
| 017 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 21) |
|
2008-2013 |
03 |
| 018 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P COMPT) (*KIT1) (10.701) |
|
2008-2013 |
01 |
| 019 |
|
STRIKER, I/P COMPT DR LK (*KIT1) |
|
2008-2013 |
|
| 020 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (I/P COMPT DR LAT STKR) (*KIT1) |
|
2008-2013 |
02 |
| 021 |
15854787 |
COVER, I/P COMPT ACC HOLE (INCLS 17) (EBONY) (GLOVE BOX) |
CK1, 2, 3 |
2010-2013 |
01 |
| 022 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P COMPT DR) (9.665) |
|
2008-2013 |
09 |
| 023 |
10446032 |
BUMPER, I/P COMPT (8.80 DIA) (CLOSED-STOP) (FRAME) (*KIT1) (10.263) |
CK1, 2 (06-36) (X88, Z88) |
2008-2013 |
02 |
| 024 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (I/P COMPT DR) (*KIT1) |
|
2008-2013 |
03 |
| 025 |
25960443 |
LATCH, I/P COMPT DR (EBONY) (W/LOCK HOLE) (*KIT1) (10.268) |
CK1, 2, 3 (19I, 85I) |
2010-2013 |
01 |
| 025 |
25960446 |
LATCH, I/P COMPT DR (TITANIUM) (LOCKING GLOVE BOX LATCH) (*KIT1) (10.268) |
CK1, 2, 3 (SLT, 83I, 84I) |
2010-2013 |
01 |
| 025 |
25960448 |
LATCH, I/P COMPT DR (CASHMERE) (W/LOCK) (*KIT1) (10.268) |
CK1, 2, 3 (33I, 39I) |
2008-2011 |
01 |
| 026 |
22819134 |
CYLINDER KIT, I/P COMPT DR LK (UNCODED) |
CK1, 2, 3 |
2008-2013 |
01 |
| 027 |
|
DOOR, I/P COMPT (*KIT1) |
|
2008-2013 |
|
| 028 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P COMPT DR HGE) (*KIT1) |
|
2008-2013 |
05 |
| 029 |
|
HINGE, I/P COMPT DR (*KIT1) |
|
2008-2013 |
|
| 030 |
25938044 |
PANEL, I/P LWR TR (EBONY) (LWR BEAUTY TRIM UNDER CENTER STACK) (CLOSEOUT) (*KIT1) |
CK1, 2 (06-36) (X88, Z88, 19I) |
2009-2013 |
01 |
| 030 |
25938045 |
PANEL, I/P LWR TR (CASHMERE) (*KIT1) |
CK1, 2 (06-36) (X88, Z88, 33I, 39I) |
2009-2013 |
01 |
| 030 |
25938046 |
PANEL, I/P LWR TR (TITANIUM) (*KIT1) |
CK1, 2 (06-36) (X88, Z88, 83I) |
2008-2013 |
01 |
| 031 |
10365827 |
INSULATOR, I/P (W/O FELT TAPE) |
CK1, 2, 3 (EXC D07) |
2008-2013 |
01 |
| 031 |
25790726 |
INSULATOR, I/P (W/FELT TAPE) |
CK1, 2, 3 (D07) |
2008-2013 |
01 |
| 032 |
11517774 |
BOLT, HEX, M4.2X1.41X20, 14.25 OD, 6010M, 6138M, TAP, AB-PT (I/P INSL) |
|
2008-2013 |
03 |
| 033 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 34) |
|
2008-2013 |
03 |
| 034 |
22773443 |
BOLSTER, I/P KNEE (INCLS 33) (EBONY) |
CK1, 2 (06-36) (JL1, 19I) |
2010-2013 |
01 |
| 034 |
22773448 |
BOLSTER, I/P KNEE (INCLS 33) (CASHMERE) |
CK1 (06-36) (33I, 39I) (EXC JL1) |
2010-2013 |
01 |
| 034 |
22773449 |
BOLSTER, I/P KNEE (INCLS 33) (TITANIUM) |
CK1 (06-36) (83I) (EXC JL1) |
2010-2013 |
01 |
| 034 |
22773444 |
BOLSTER, I/P KNEE (INCLS 33) (CASHMERE) |
CK1, 2 (06-36) (JL1, 33I, 39I) |
2010-2013 |
01 |
| 034 |
22773447 |
BOLSTER, I/P KNEE (INCLS 33) (EBONY) |
CK1 (06-36) (19I) (EXC JL1) |
2010-2013 |
01 |
| 034 |
22773445 |
BOLSTER, I/P KNEE (INCLS 33) (LT TITANIUM) |
CK1, 2 (06-36) (JL1, 83I) |
2010-2013 |
01 |
| 035 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P DRVR KNEE BOLS) (9.665) |
|
2008-2013 |
02 |
| 036 |
25855841 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37) (CASHMERE) |
CK1, 2, 3 (33I) |
2008-2013 |
01 |
| 036 |
25855842 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37) (TITANIUM) |
CK1, 2, 3 (83I, 88I) |
2008-2013 |
01 |
| 036 |
25940492 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37-40) (EBONY) |
CK1, 2, 3 (19I, 31I, 84I, 85I) |
2010-2011 |
01 |
| 036 |
25940493 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37-40) (CASHMERE) |
CK1, 2, 3 (33I) |
2009-2011 |
01 |
| 036 |
25940494 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37-40) (TITANIUM) |
CK1, 2, 3 (83I, 88I) |
2009-2011 |
01 |
| 036 |
25855840 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 37) (EBONY) |
CK1, 2, 3 (19I, 31I, 84I, 85I) |
2010-2011 |
01 |
| 037 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 36) |
|
2008-2013 |
06 |
| 038 |
88909749 |
FUSE, 3A, MINI, VIOLET (PART OF 36) (8.965) (ACDelco #ATM3-25) |
|
2008-2013 |
01 |
| 038 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 36) (ACDelco #ATM15-25) |
|
2008-2013 |
01 |
| 038 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 36) (ACDelco #ATM25-25) |
|
2008-2013 |
01 |
| 038 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 36) |
|
2008-2013 |
01 |
| 038 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 36) (ACDelco #ATM20) |
|
2008-2013 |
01 |
| 039 |
12084791 |
PULLER, FUSE (PART OF 36) (MINI) (I/P COVER) |
CK1, 2, 3 |
2008-2013 |
01 |
| 040 |
25940508 |
LABEL, I/P WRG HARN FUSE BLK IDENT (PART OF 36) (2.483) |
CK1, 2, 3 |
2009-2011 |
01 |
| K01 |
20925899 |
DOOR, I/P COMPT (INCLS 18-20, 23-25, 27-30) (CASHMERE) |
CK1, 2 (06-36) (X88, Z88, 31I, 33I, 39I) |
2008-2011 |
01 |
| K01 |
20925900 |
DOOR, I/P COMPT (INCLS 18-20, 23-25, 27-30) (TITANIUM) |
CK1, 2 (06-36) (X88, Z88, 83I) |
2008-2013 |
01 |
| K01 |
20925898 |
DOOR, I/P COMPT (INCLS 18-20, 23-25, 27-30) (EBONY) (W/DR, LATCH, PNL) |
CK1, 2 (06-36) (X88, Z88, 19I) |
2009-2013 |
01 |
