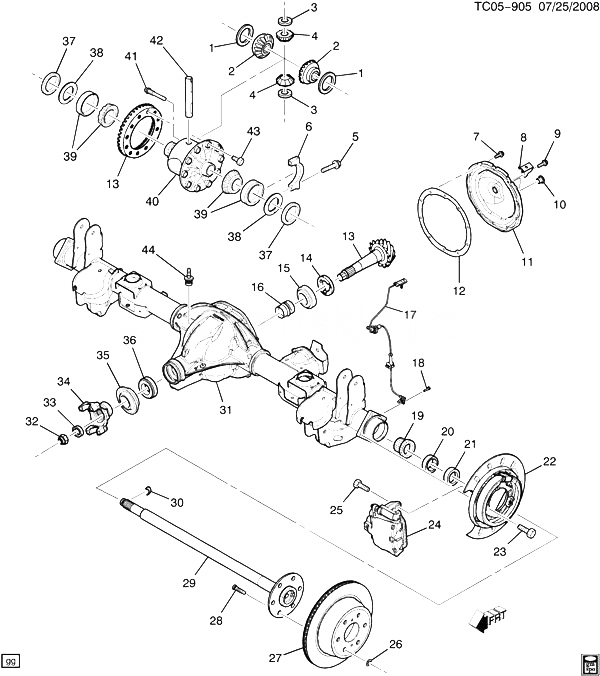

(TC05-905) 2009-2013 CK1(06-36) ОСЬ ЗАДНЯЯ В СБОРЕ 8.625 RING GEAR PART 1 (EXC (AXN)) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
022 BRAKE, PARK (SEE GROUP 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2009-2013
023 15065927 BOLT, PARK BRK (M12X1.75X34) CK1 2007-2013 08
024 CALIPER, RR BRK (SEE GROUP 04.000 BRAKE CALIPER/REAR FOR DETAILED ILLUSTRATED VIEW) (4.667) 2007-2013
025 15012506 BOLT, RR BRK CLPR (PART OF 27) (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) CK1, 2, 3 2009-2010 04
026 RETAINER, RR BRK ROT (PUSH ON) 2009-2013
027 25832103 ROTOR, RR BRK (INCLS 25) (ACDelco #177-1041) CK1 2009-2013 02
028 11588811 STUD, RR WHL (M14X1.5X58, 24THD) CK1 2007-2013 24
029 22874951 SHAFT, R/AXL CK1 2007-2013 02
030 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) CK1 (EXC AXN) 2007-2013 02
031 25824244 HOUSING, R/AXL (INCLS 5, 6) CK1 (06-36) (GU4, GT4, GT5) 2009-2013 01
031 25824244 HOUSING, R/AXL (INCLS 5, 6) CK1 (06-36) (GU6, JD9) (EXC AXN, G80) 2009-2013 01
031 25824244 HOUSING, R/AXL (INCLS 5, 6) CK107 (06) (LMG, MYC, GU6, G80, JD9) 2009-2013 01
032 88891763 NUT, DIFF DRV P/GR (R/AXL) (PART OF 13, 34) (M10) CK1 2007-2013 01
033 00517900 WASHER, DIFF DRV P/GR (PART OF 13, 34) (.890X1.625X.190) CK1 2007-2013 01
034 19180533 YOKE KIT, DIFF DRV P/GR (INCLS 32, 33, 35) (INCLS NUT, SEAL, WASHER YOKE) CK1 2009-2013 01
035 26064029 SEAL, DIFF DRV P/GR (PART OF 34) (5.545) CK1 2009-2013 01
036 25824252 BEARING, DIFF DRV P/GR OTR (INCLS 1 CONE AAM# 40048060 AND 1 CUP AAM# 40048058) (8.5/8.625 DIA) (ACDelco #S1382) CK1 2009-2013 01
037 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 (EXC AXN) 2007-2013 02
038 12471362 SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
038 12471363 SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
038 12471364 SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
038 12471365 SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
001 WASHER, DIFF SI GR THR (*KIT1) 2009-2013
002 GEAR, DIFF SI (*KIT1) 2009-2013
003 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT1) CK1 (EXC G80) 2007-2013 02
004 GEAR, DIFF PINION (*KIT1) 2009-2013
005 00454947 BOLT, HEX .437-14X2.250 CL-2A CAD/ZC (PART OF 31) 2008-2013 04
006 CAP, DIFF BRG (PART OF 31) 2009-2013
007 12471307 BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) CK1, 2, 3 2009-2013 AR
008 20763162 BRACKET, RR BRK C/OVR PIPE (INCLS 9) CK1 2009-2013 01
009 BOLT, R/AXL HSG CVR (PART OF 8) 2009-2013
010 92230583 PLUG, R/AXL HSG FILL (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (NO ZINC COATING) CK1 2010-2013 01
011 25824253 COVER, R/AXL HSG (COVER ONLY) CK1 2009-2013 01
012 15860607 GASKET, R/AXL HSG CVR (10 BOLT HOLES) CK1 2009-2013 01
013 19180882 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) (NOT FOR USE VEHICLES W/PINION GEAR MOUNTED ABS RELUCTORS) CK1 (GU4) 2009-2012 01
013 19180883 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GU5) 2009-2012 01
013 19180884 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GU6) (EXC AXN) 2007-2012 01
013 19180885 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GT4) 2007-2012 01
014 01394892 SHIM KIT, DIFF DRV P/GR BRG (R/AXL) (.020-.024 THK) CK1 2007-2013 01
014 01394893 SHIM KIT, DIFF DRV P/GR BRG (.025-.029 THK) CK1 (EXC AXN) 2007-2013 01
014 01394894 SHIM KIT, DIFF DRV P/GR BRG (.030-.034 THK) CK1 (EXC AXN) 2007-2013 01
014 01394895 SHIM KIT, DIFF DRV P/GR BRG (.035-.039 THK) CK1 (EXC AXN) 2007-2013 01
014 26043991 SHIM KIT, DIFF DRV P/GR BRG (.040-.044 THK) CK1 (EXC AXN) 2007-2013 01
014 26043992 SHIM KIT, DIFF DRV P/GR BRG (.045-.049 THK) CK1 (EXC AXN) 2007-2013 01
015 25824251 BEARING, DIFF DRV P/GR INR (8.5/8.625 DIA) (ACDelco #S1381) CK1 (EXC AXN) 2009-2013 01
016 12479162 SPACER, DIFF DRV P/GR BRG (R/AXL) (PART OF 13) (.062-.068 THK) CK1 2007-2013 01
017 20938122 SENSOR, RR WHL SPD (ACDelco #20938122) CK1 (06-36) 2007-2013 02
018 15960191 BOLT, WHL SPD SEN (M6X1X12) CK1, 2, 3 2007-2013 02
019 15286384 RING, WHL SPD SEN RELUCTOR CK1 2007-2013 02
020 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 2007-2013 02
021 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 2007-2013 02
038 12471366 SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
038 12471367 SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
038 12471368 SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2013 01
039 25824250 BEARING, DIFF (8.5/8.625 DIA) (ACDelco #S1380) CK1 2007-2013 02
040 25824246 CASE, DIFF (CASE ONLY) CK1 (EXC G80) 2009-2013 01
041 25872305 BOLT, DIFF P/GR SHF LK (.3X18X30, 12.7THD) (*KIT1) CK1 (EXC AXN) 2007-2013 01
042 25824249 SHAFT, DIFF P/GR (124.84 MM) (*KIT1) CK1 2009-2013 01
043 11610549 BOLT, RR DIFF R/GR (R/AXL) (PART OF 13) (7/16-20) CK1 2009-2013 10
044 26063647 CONNECTOR, R/AXL VENT HOSE CK1, 2, 3 2007-2013 01
K01 19180887 GEAR KIT, DIFF SI PINION (INCLS 1-4, 41, 42) CK1 (EXC AXN, G80) 2009-2013 01
