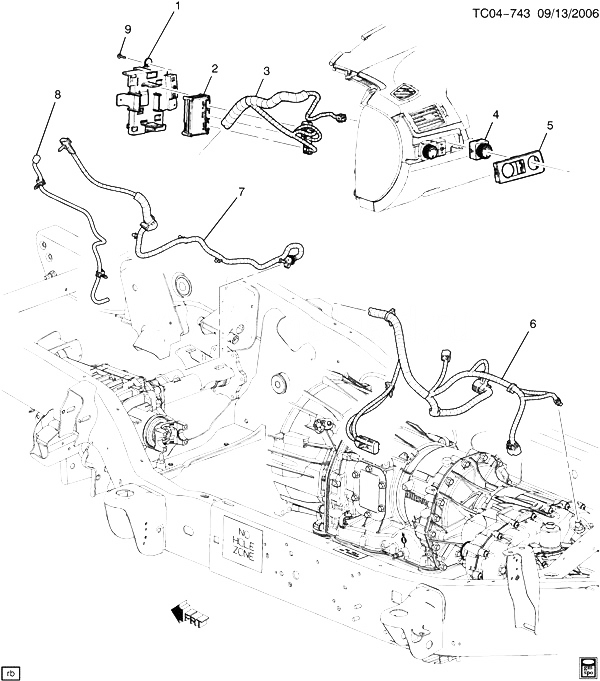

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15093913 |
BRACKET, BCM |
K1, 2, 3 |
2007-2013 |
01 |
| 002 |
24252878 |
MODULE, TRFER CASE SHFT CONT (W/O CALN) |
K1, 2, 3 (NP0, NQF, NQH) |
2008-2013 |
01 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
25878425 |
SWITCH, TRFER CASE SEL |
K1, 2 (NQH, X88, Z88) |
2009-2013 |
01 |
| 004 |
20860450 |
SWITCH, TRFER CASE SEL |
K1 (NP0) |
2010-2013 |
01 |
| 005 |
|
PLATE, HDLP SW TR (SEE GROUP 16.000, INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
|
2007-2013 |
|
| 006 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
25829638 |
HARNESS, TRFER CASE SEL SHFT CONT SW WRG HARN EXTN (INCLS 8) |
K1 (06-36) (LC9, LMG, L9H, L94, NP0, NQH) |
2010-2010 |
01 |
| 008 |
|
HOSE, F/AXL VENT (SEE GROUP 06.000 VENT HOSE/FRONT AXLE FOR DETAILED ILLUSTRATED VIEW) (PART OF 7) (5.387) |
|
2007-2013 |
|
| 009 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (BCM BRKT) (9.665) |
|
2007-2013 |
03 |
