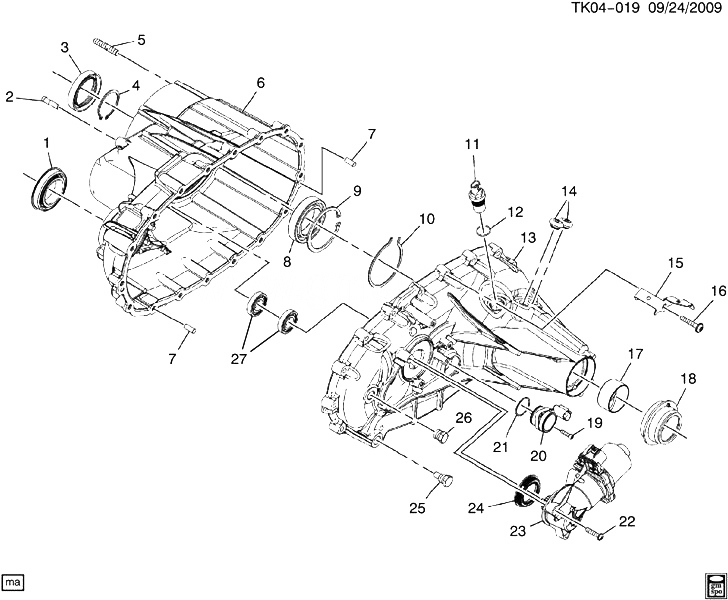

(TK04-019) 2010-2013 K1 РАЗДАТОЧНАЯ КОРОБКА (NP0) PART 1 CASE COMPONENTS (MP 3010) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19133157 SEAL, TRFER CASE FRT OUTPUT SHF K1 (NP0) 2010-2013 01
002 19133166 VENT, TRFER CASE K1 (NP0) 2010-2013 01
003 19133156 SEAL, TRFER CASE INPUT SHF (SINGLE LIP) (USE W/ MYC MYD) K1 (MYC, NP0) 2010-2011 01
004 19133024 RING, TRFER CASE INPUT GR BRG OTR RET K1 (MYC, NP0, NQG, NQH) 2010-2013 01
005 19133005 STUD, TRFER CASE (PART OF 6) K1 (NP0) 2010-2013 06
006 19255999 CASE, TRFER (FRT HALF) (INCLS 5, 7-9, 27) K1 (MYC, NP0) 2010-2011 01
007 19133004 PIN, TRFER CASE HALF LOC (PART OF 6) K1 (NP0) 2010-2013 02
008 19133006 BEARING, TRFER CASE INPUT SHF (PART OF 6) (ACDelco #19133006) K1 (NP0) 2010-2013 01
009 19133007 RING, TRFER CASE INPUT SHF INR RET (PART OF 6) K1 (NP0) 2010-2013 01
010 19168238 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET K1 (NP0) 2010-2013 01
011 12376520 SENSOR, VEH SPD (SCREW IN WITH O-RING) (INCLS 12) (2-WAY MALE) (MATING CONN W/LEADS USE 88987993) (3.682) (ACDelco #213-347) K1 (MYC, NP0) 2010-2013 01
011 12376520 SENSOR, VEH SPD (INCLS 12) (2-WAY MALE) (MATING CONN W/LEADS USE 88987993) (ACDelco #213-347) K1 (MYC, NP0) 2010-2013 01
012 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 11) (I.D. 20MM) (ACDelco #19133158) K1 (MYC, NP0) 2010-2013 01
013 19133139 CASE, TRFER (RR HALF) (INCLS 17) K1 (NP0) 2010-2013 01
014 19133165 PLUG, TRFER CASE ACC HOLE K1 (NP0) 2010-2013 02
015 19133154 BRACKET, TRFER CASE (HARNESS-A) K1 (NP0) 2010-2013 01
016 19169068 BOLT, TRFER CASE HALF (W/O WAX) K1 (NP0) 2010-2012 17
017 15665313 BUSHING, TRFER CASE RR EXTN (PART OF 13) (4.319) (ACDelco #15665313) K1 (NP0) 2010-2013 01
018 19133150 SEAL, TRFER CASE RR OUTPUT SHF K1 (NP0) 2010-2013 01
019 19133161 BOLT, TRFER CASE TWO/FOUR WHL DRV ACTR SEN K1 (NP0) 2010-2013 02
020 19133159 SENSOR, TRFER CASE TWO/FOUR WHL DRV ACTR POSN (INCLS 21) K1 (NP0) 2010-2013 01
021 19133160 SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR POSN SEN (PART OF 20) K1 (MYC, NP0) 2010-2013 01
022 19179124 BOLT, TRFER CASE TWO/FOUR WHL DRV ACTR (ACDelco #19179124) K1 (NP0) 2010-2013 04
023 19258696 ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 24) (ACDelco #19258696) K1 (MYC, NP0) 2010-2013 01
024 SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR (PART OF 23) 2010-2013
025 19133162 PLUG, TRFER CASE OIL DRN K1 (NP0) 2010-2013 01
026 15032997 PLUG, TRFER CASE OIL FILL K1 (NP0) 2010-2013 01
027 19133010 BEARING, TRFER CASE FOUR WHL DRV ACTR LVR SHF (PART OF 6) K1 (NP0) 2010-2013 02
