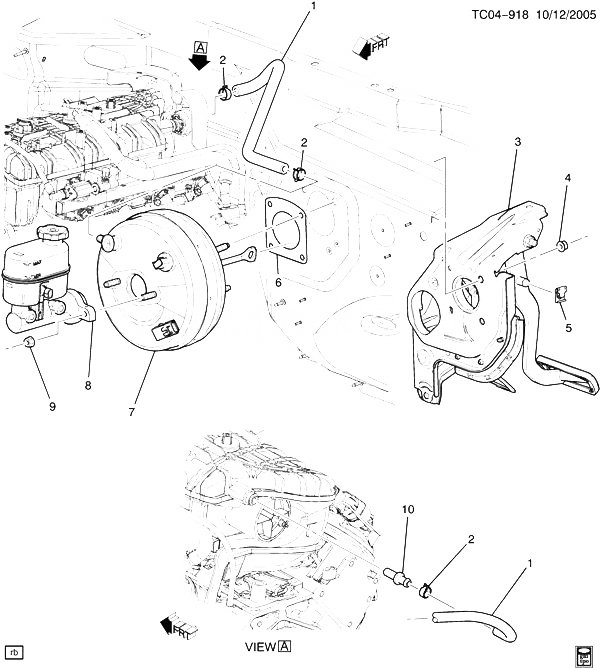

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25891352 |
HOSE, P/B BOOS VAC (INCLS 2) (ACDelco #176-1551) |
CK1 (LC9, LMG, L20, L9H, L94, JD9, JF3, JF7) |
2010-2010 |
01 |
| 002 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 1) (ACDelco #1470030) |
|
2007-2013 |
02 |
| 003 |
|
PEDAL, BRK ACCEL (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2007-2013 |
04 |
| 005 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
15974046 |
GASKET, P/B BOOS (ACDelco #15974046) |
CK1 (JD9, JF3, JF7, JG4) |
2009-2013 |
01 |
| 007 |
|
BOOSTER, P/B (VAC) (SEE GROUP 04.000 BOOSTER/BRAKE FOR DETAILED ILLUSTRATED VIEW) (4.805) |
|
2007-2013 |
|
| 008 |
|
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR ILLUSTRATED DETAILED VIEW) |
|
2007-2013 |
|
| 009 |
11517996 |
NUT, BRK M/CYL (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2007-2013 |
02 |
| 010 |
12559760 |
NIPPLE, P/B BOOS VAC HOSE (ACDelco #12559760) |
CK1 (LC9, LMG, L20, L9H, L94, JD9, JF3, JF7) |
2010-2013 |
01 |
