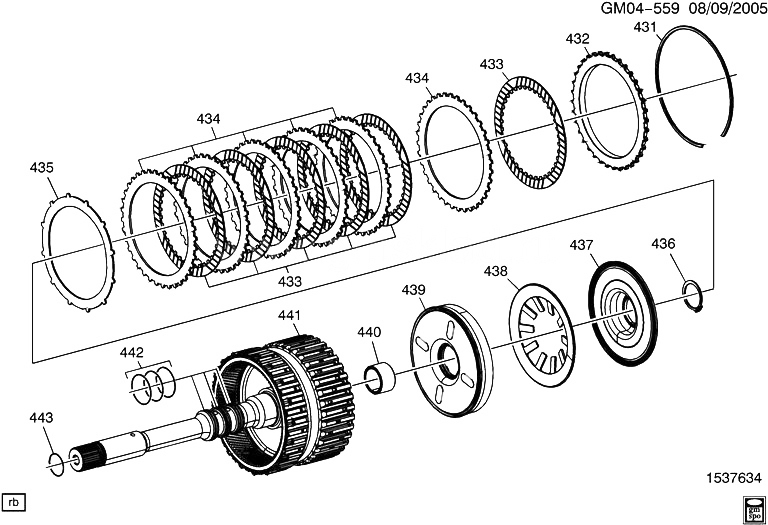

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 431 |
24233406 |
RING, 4-5-6 CLU BKG PLT RET (PURPLE) (2.49MM +/- 0.05) (ACDelco #24233406) |
CK1 (MYC) |
2007-2013 |
01 |
| 431 |
24233407 |
RING, 4-5-6 CLU BKG PLT RET (YELLOW) (1.65MM +/- 0.05) (ACDelco #24233407) |
CK1 (MYC) |
2007-2013 |
01 |
| 431 |
24233408 |
RING, 4-5-6 CLU BKG PLT RET (NONE) (2.07MM +/- 0.05) (ACDelco #24233408) |
CK1 (MYC) |
2007-2013 |
01 |
| 432 |
24240654 |
PLATE, 4-5-6 CLU BKG (ACDelco #24240654) |
CK1 (MYC) |
2007-2013 |
01 |
| 433 |
24224158 |
PLATE, 4-5-6 CLU (PKG OF 7) (FIBER) (*KIT1) (ACDelco #24224158) |
CK1 (MYC) |
2007-2013 |
01 |
| 434 |
24258083 |
PLATE, 4-5-6 CLU (STEEL) (PART PKG CONTAINS 1 PART) (ACDelco #24258083) |
CK1 (MYC) |
2007-2013 |
06 |
| 435 |
24224647 |
PLATE, 4-5-6 CLU (WAVED) (ACDelco #24224647) |
CK1 (MYC) |
2007-2013 |
01 |
| 436 |
24237851 |
RING KIT, RET (1234 DAM, 1234 HSG, 456 DAM) (4.224) (ACDelco #24237851) |
CK1 (MYC) |
2007-2013 |
01 |
| 437 |
24232417 |
DAM, 4-5-6 CLU PSTN (ACDelco #24232417) |
CK1 (MYC) |
2007-2013 |
01 |
| 438 |
24224714 |
SPRING, 4-5-6 CLU (ACDelco #24224714) |
CK1 (MYC) |
2007-2013 |
01 |
| 439 |
24232416 |
PISTON, 4-5-6 CLU (ACDelco #24232416) |
CK1 (MYC) |
2007-2013 |
01 |
| 440 |
|
BUSHING, OUTPUT CARR SHF HSG (PART OF 441) |
|
2007-2013 |
|
| 441 |
24237556 |
HOUSING, 4-5-6 CLU (W/ INPUT SHF) (INCLS 440) (ACDelco #24237556) |
CK1 (MYC) |
2007-2013 |
01 |
| 442 |
24224655 |
RING, TURB SHF FLUID SEAL (ACDelco #24224655) |
CK1 (MYC) |
2007-2013 |
03 |
| 443 |
24219390 |
SEAL, TURB SHF (O RING) (ACDelco #24219390) |
CK1 (MYC) |
2007-2013 |
01 |
| K01 |
24248008 |
PLATE KIT, CLU (INCLS 433) (ACDelco #24248008) |
CK1 (MYC) |
2009-2013 |
01 |
