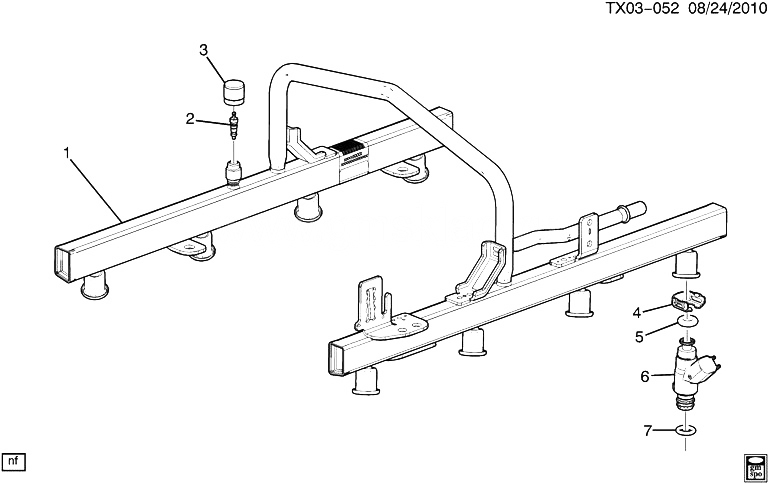

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12621668 |
RAIL, M/PORT F/INJN FUEL (HAS CRIMPED CROSSOVER TUBE RETAINER) (INCLS 2, 3) |
CK1 (L20, LMG) |
2010-2013 |
01 |
| 002 |
|
VALVE, FUEL PRESS SERV (PART OF 1) |
|
2010-2010 |
|
| 003 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 1) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) |
CK1, 2, 3 |
2009-2013 |
01 |
| 004 |
12570620 |
RETAINER KIT, F/INJR (PART OF 6) (W/ 8 RETAINERS) (ACDelco #12570620) |
CK1 (LMG) |
2010-2013 |
01 |
| 005 |
|
SEAL, F/INJN FUEL RL (O RING) (PART OF 6) (*KIT1) |
|
2010-2010 |
|
| 006 |
12613411 |
INJECTOR, SEQ M/PORT FUEL (INCLS 4, 5, 7) (ACDelco #217-3411) |
CK1 (LMG, MYC) |
2010-2013 |
08 |
| 007 |
|
SEAL, F/INJR (O RING) (PART OF 6) (*KIT1) |
|
2010-2010 |
|
| K01 |
19169305 |
SEAL KIT, M/PORT F/INJR (INCLS 5, 7) (ACDelco #217-3092) |
CK1 (LMG) |
2010-2013 |
01 |
