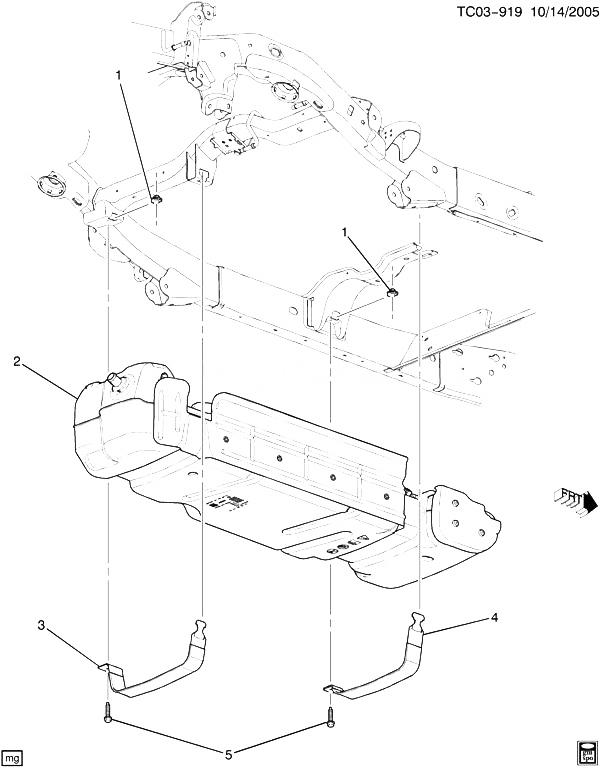

(TC03-919) 2007-2013 CK1(06-36) КРЕПЛЕНИЕ ТОПЛИВНОГО БАКА CHEVROLET TAHOE (4WD) 2010
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11517806 | NUT, U-TYPE, M10X1.5, 30.5X28.6, 15.5 C/E, 2-5 PNL, 1050, 7111M (F/TNK STRP) | 2007-2013 | 02 | |
| 002 | TANK, FUEL (SEE GROUP 03.000 FUEL TANK FOR DETAILED ILLUSTRATED VIEW) (31.5 GALLONS) | 2007-2013 | |||
| 003 | 22868153 | STRAP, F/TNK (REAR) | CK1 (06-36) | 2007-2013 | 01 |
| 004 | 22868152 | STRAP, F/TNK (FRONT) | CK1 (06-36) | 2007-2013 | 01 |
| 005 | 11519894 | BOLT, HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (F/TNK STRP) | 2007-2013 | 02 |
