| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

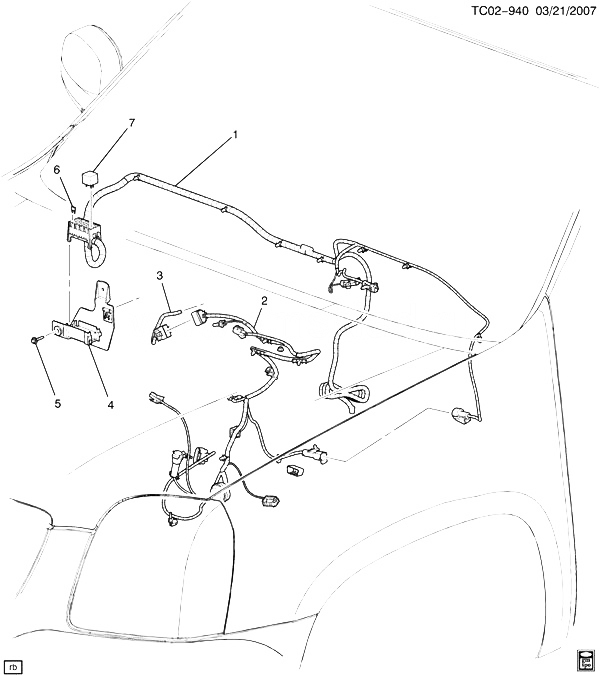

| 001 |
25825519 |
HARNESS, ACSRY PWR FUSE BLK RR WRG HARN EXTN (INCLS 4, 6, 7) |
CK1, 2, 3 (9L4) |
2009-2013 |
01 |
| 002 |
20970628 |
HARNESS, FUSE BLK WRG |
K107 (06) (JL1, 5W4) (EXC JF4) |
2009-2011 |
01 |
| 002 |
20970630 |
HARNESS, FUSE BLK WRG |
CK1, 2, 3 (9L4) (EXC JF4, JL1) |
2009-2011 |
01 |
| 002 |
22797941 |
HARNESS, FUSE BLK WRG |
CK1, 2, 3 (JL1, 9L4) (EXC JF4) |
2009-2011 |
01 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTURMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
15888241 |
BRACKET, ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN (PART OF 1) |
CK1, 2, 3 (9L4) |
2007-2013 |
01 |
| 005 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN BRKT) (9.665) |
|
2007-2013 |
02 |
| 006 |
12092075 |
FUSE, 30A, MINI, GREEN (PART OF 1) (ACDelco #12092075) |
|
2007-2013 |
04 |
| 007 |
12177236 |
RELAY, ACSRY (PART OF 1) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (9.778) (ACDelco #D7065C) |
CK1, 2, 3 (9L4) |
2007-2013 |
02 |
