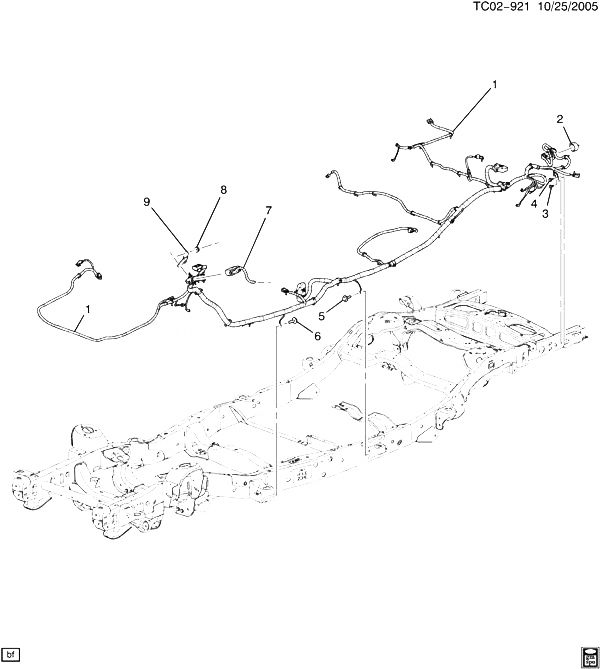

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20878199 |
HARNESS, CHAS WRG |
CK107 (06) (ZW7, Z56, Z71) (EXC HP2, JL1, T79) |
2010-2010 |
01 |
| 001 |
20878201 |
HARNESS, CHAS WRG |
CK107 (06) (JL1, ZW7, Z56, Z71) (EXC HP2, T79) |
2010-2010 |
01 |
| 003 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND) |
|
2007-2013 |
01 |
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG) |
|
2007-2013 |
01 |
| 005 |
11516872 |
BOLT, HEX, M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (RR LP WRG HARN GND) |
|
2007-2013 |
01 |
| 006 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND) |
|
2007-2013 |
02 |
| 007 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) |
|
2007-2013 |
02 |
| 009 |
15045897 |
BRACKET, CHAS FRT WRG HARN |
CK1, 2, 3 |
2007-2013 |
01 |
