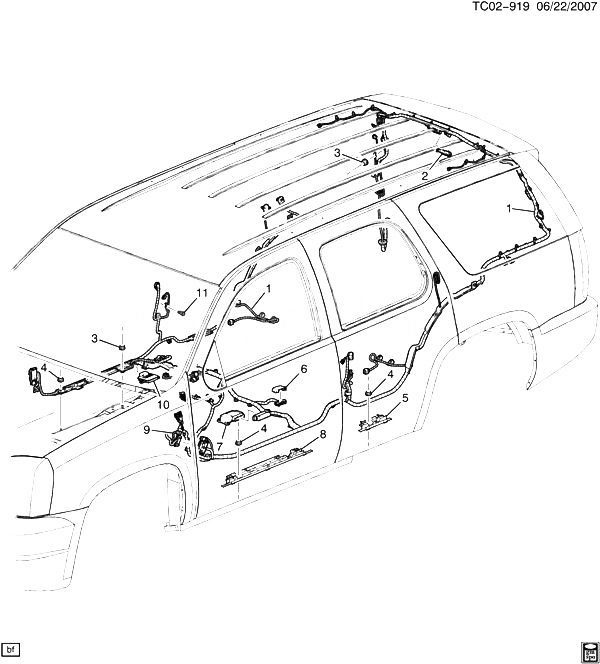

(TC02-919) 2008-2013 CK107(06) ЖГУТ ПРОВОДОВ/КУЗОВ (EXC HYBRID HP2) CHEVROLET TAHOE (4WD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20927000 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, UUK, UUL, UUM, UVC, X88) 2010-2010 01
001 20927013 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, US8, UUI, UUJ, UVC) (EXC STZ, Y91) 2010-2010 01
001 20927014 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, UUK, UUL, UUM, UVC) (EXC STZ, Y91) 2010-2010 01
001 20927036 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, UD7, US8, UUI, UUJ, UVC) (EXC ARS, E61, HP2, STZ) 2010-2010 01
001 20927059 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61) (EXC STZ, UVC, Y91) 2010-2010 01
001 20926999 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, UUK, UUL, UUM, UVC, X88) (EXC E61, Y91) 2010-2010 01
001 20927011 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, US8, UUI, UUJ, UVC) (EXC E61, STZ, Y91) 2010-2010 01
001 20927012 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, UUK, UUL, UUM, UVC) (EXC E61, STZ, Y91) 2010-2010 01
001 20927028 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, US8, UUI, UUJ, UVC) (EXC ARS, E61, STZ, Y91) 2010-2010 01
001 20927029 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, UUK, UUL, UUM, UVC) (EXC ARS, E61, STZ, Y91) 2010-2010 01
001 20927030 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, UD7, UUK, UUL, UUM, UVC) (EXC ARS, E61, HP2, STZ) 2010-2010 01
001 20927030 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AZ3, A95, UD7) (EXC ARS, E61, HP2, STZ, UVC) 2010-2010 01
001 20927031 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, E61, UUK, UUL, UUM, UVC) (EXC ARS, STZ, Y91) 2010-2010 01
001 20927037 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, E61, US8, UUI, UUJ, UVC) (EXC ARS, STZ, Y91) 2010-2010 01
001 20927042 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, X88) (EXC E61, UVC, Y91) 2010-2010 01
001 20927043 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, X88) (EXC UVC) 2010-2010 01
001 20927052 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3) (EXC ARS, E61, STZ, UVC, Y91) 2010-2010 01
001 20927053 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, E61) (EXC ARS, STZ, UVC, Y91) 2010-2010 01
001 20927058 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS) (EXC E61, STZ, UVC, Y91) 2010-2010 01
001 20927069 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, STZ, US8, UUI, UUJ, UVC, X88) (EXC E61, Y91) 2010-2010 01
001 20927070 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, E61, STZ, US8, UUI, UUJ, UVC, X88) 2010-2010 01
001 20968731 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (ASF, AZ3, A95, PPV, 5W4) (EXC ARS, E61, UD7, UVC) 2010-2011 01
001 20927066 HARNESS, BODY WRG (INCLS 5, 8) CK107 (06) (AN3, ARS, T89, UUK, UUL, UUM, UVC, Y91) (EXPORT) 2010-2010 01
002 HARNESS, L/GATE WRG (SEE GROUP 02.000 WIRING HARNESS/LIFT GATE FOR DETAILED ILLUSTRATED VIEW) (INCLUDES BOOT BETWEEN LIFT GATE AND BODY) 2007-2013
003 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) 2007-2013 03
004 21011332 NUT, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) 2007-2013 06
005 CONDUIT, BODY WRG HARN (PART OF 1) 2010-2013
006 25952151 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88, Z88) (EXC HP2, Y91) 2010-2010 01
006 25952153 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88, Z88) (EXC HP2, Y91) 2010-2010 01
007 MODULE, AIRBAG SEN DIAGN (SEE GROUP 16.000 INFLATEABLE RESTRAINT SYSTEM FOR DETAILED ILLUSTRATED VIEW) 2007-2013
008 CONDUIT, BODY WRG HARN (PART OF 1) 2010-2013
009 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2007-2013
010 MODULE, RR VIEW CAMERA IMAGE DISPLAY (SEE GROUP 02.000 SENSOR SYSTEM/REAR OBJECT FOR DETAILED ILLUSTRATED VIEW) (2.195) 2007-2013
011 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) 2007-2013 02
