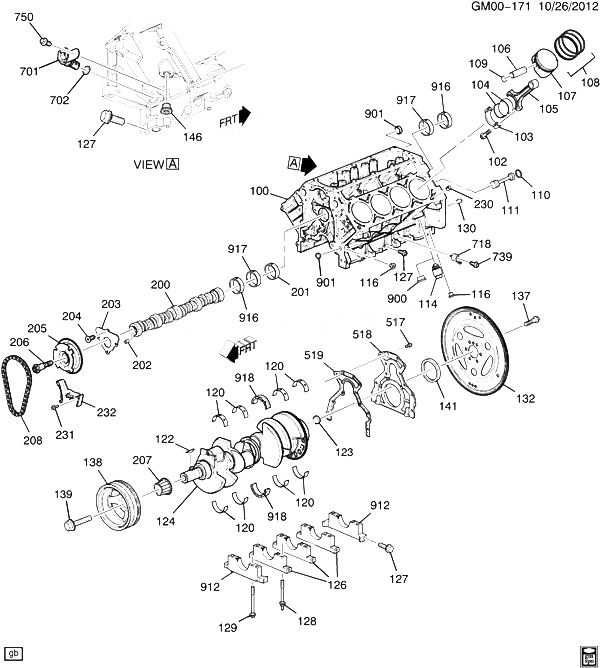

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG |
|
2010-2011 |
|
| 100 |
|
BLOCK, ENG |
|
2010-2013 |
|
| 102 |
11570662 |
BOLT, CONN ROD (PART OF 105) (M9X44, 13 THD, 15.5 OD, 12.9, PL) |
CK1 (LMG, LC9) |
2010-2013 |
16 |
| 103 |
|
CAP, CONN ROD (PART OF 105) |
|
2010-2011 |
|
| 103 |
|
CAP, CONN ROD (PART OF 105) |
|
2010-2013 |
|
| 104 |
89017573 |
BEARING KIT, CONN ROD (STD) |
CK1 (LMG, MYC) |
2010-2013 |
08 |
| 105 |
12607475 |
ROD, CONN (INCLS 102, 103) |
CK1 (LMG) |
2010-2013 |
08 |
| 106 |
|
PIN, PSTN (PART OF 107) |
|
2010-2011 |
|
| 106 |
|
PIN, PSTN (PART OF 107) |
|
2010-2013 |
|
| 107 |
19208676 |
PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O.S.) |
CK1 (LMG) |
2010-2013 |
01 |
| 107 |
19208675 |
PISTON KIT, ENG (INCLS 106, 109) (STD) |
CK1 (LMG) |
2010-2013 |
08 |
| 108 |
19208677 |
RING KIT, PSTN (STD) (FOR 0.5MM OVERSIZE SEE 19208678.) |
CK1 (LC9, LMG) |
2010-2013 |
08 |
| 108 |
19208678 |
RING KIT, PSTN (0.5MM OVERSIZED) |
CK1 (LMG, LC9, MYC) |
2010-2011 |
01 |
| 109 |
|
RETAINER, PSTN PIN (PART OF 107) |
|
2010-2011 |
|
| 109 |
|
RETAINER, PSTN PIN (PART OF 107) |
|
2010-2013 |
|
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2010-2011 |
|
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2010-2013 |
|
| 111 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (INCLS 110) (1.531) |
|
2010-2013 |
02 |
| 114 |
12586687 |
HEATER, ENG COOL |
CK1, 2, 3 (LC9, LMG, LU3, LY6, LZ1, L20, L9H, L94, L96, K05) |
2010-2010 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) |
|
2010-2013 |
03 |
| 120 |
89017571 |
BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) |
CK1 (LC9, LMG) |
2010-2013 |
04 |
| 122 |
12561513 |
KEY, CR/SHF BALR (4.8MMX37.5MM) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 123 |
24502262 |
PLUG, CUP, 1.014 OD, .32 THK, FROM .05 THK 304 STAINLESS. (PART OF 124) (0.293) |
|
2010-2013 |
01 |
| 124 |
12588614 |
CRANKSHAFT, (INCLS 123) |
CK1 (LMG) |
2010-2013 |
01 |
| 126 |
|
CAP, CR/SHF BRG |
|
2010-2011 |
|
| 126 |
|
CAP, CR/SHF BRG |
|
2010-2013 |
|
| 127 |
12556127 |
BOLT, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24) |
CK1 (LMG, LC9) |
2010-2013 |
10 |
| 128 |
12560273 |
STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) |
CK1 (LMG, LC9) |
2010-2013 |
10 |
| 129 |
12560272 |
BOLT, CR/SHF BRG CAP (BOTTOM) (LONG) (M10X2X102.5, 24.5) |
CK1 (LMG, LC9) |
2010-2013 |
10 |
| 130 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2010-2013 |
02 |
| 132 |
12602448 |
PLATE, A/TRNS FLEX |
CK1 (LC9, LMG) |
2010-2013 |
01 |
| 137 |
11569956 |
BOLT, A/TRNS FLEX PLT (M11X1.5X23.5 W/SEALER) |
CK1 (L20, LZ1, LMG, L94) |
2010-2013 |
06 |
| 138 |
12634105 |
BALANCER, CR/SHF (ACDelco #12634105) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 139 |
12557840 |
BOLT, CR/SHF BALR (M16X2.0X103) |
CK1 (LC9, LMG) |
2010-2013 |
01 |
| 141 |
89060436 |
SEAL KIT, CR/SHF RR OIL (PART OF 518) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 146 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) |
|
2010-2013 |
01 |
| 200 |
12625436 |
CAMSHAFT, ENG (INCLS 202) |
CK1 (LMG) |
2010-2013 |
01 |
| 201 |
19260879 |
BEARING, CM/SHF (POSN #3) |
CK1 (LMG) |
2010-2013 |
01 |
| 202 |
24575061 |
PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 203 |
12589016 |
RETAINER, CM/SHF (USE WITH BOLT 11561455) (INCLS SEAL) |
CK1 (LMG, MYC) |
2010-2013 |
01 |
| 204 |
11561455 |
SCREW, FLAT, CS, M8X1.25X15 (CM/SHF RET) |
|
2010-2013 |
04 |
| 205 |
12606358 |
ACTUATOR, CM/SHF POSN |
CK1 (LMG) |
2010-2013 |
01 |
| 206 |
12588151 |
VALVE, CM/SHF POSN ACTR SOL |
CK1 (LZ1, L20, LMG, L94, LC9) |
2010-2013 |
01 |
| 207 |
12556582 |
SPROCKET, CR/SHF |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 208 |
12586482 |
CHAIN, CM/SHF TMG |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC |
CK1 (LMG, LC9) |
2010-2013 |
04 |
| 231 |
11588364 |
BOLT, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 232) |
|
2010-2013 |
02 |
| 232 |
12626407 |
TENSIONER KIT, TMG CHAIN (INCLS BOLT, RETAINER) (INCLS 231) (ACDelco #12626407) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 517 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 518) |
|
2010-2013 |
12 |
| 518 |
12639250 |
HOUSING, CR/SHF RR OIL SEAL (INCLS 141, 517, 519) |
CK1 (LC9, LMG) |
2010-2013 |
01 |
| 519 |
12639249 |
GASKET, CR/SHF RR OIL SEAL HSG (PART OF 518) |
CK1 (LC9, LMG) |
2010-2013 |
01 |
| 701 |
12585546 |
SENSOR, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
| 702 |
|
SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) |
|
2010-2011 |
|
| 702 |
|
SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) |
|
2010-2013 |
|
| 718 |
12623730 |
SENSOR, KNOCK (INCLS 739) (MATING CONN W/LEADS USE 13580877) (ACDelco #213-1576) |
CK1 (LMG) |
2010-2013 |
02 |
| 739 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 718) |
|
2010-2013 |
02 |
| 750 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) |
|
2010-2013 |
01 |
| 900 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) |
|
2010-2013 |
01 |
| 901 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2010-2013 |
01 |
| 912 |
|
CAP, CR/SHF BRG |
|
2010-2011 |
|
| 912 |
|
CAP, CR/SHF BRG |
|
2010-2013 |
|
| 916 |
19260877 |
BEARING, CM/SHF (POSN #1 5) |
CK1 (LMG) |
2010-2013 |
02 |
| 917 |
19260878 |
BEARING, CM/SHF (POSN #2 4) |
CK1 (LMG) |
2010-2013 |
02 |
| 918 |
89017572 |
BEARING KIT, CR/SHF THR (STD) (#3) |
CK1 (LMG, LC9) |
2010-2013 |
01 |
