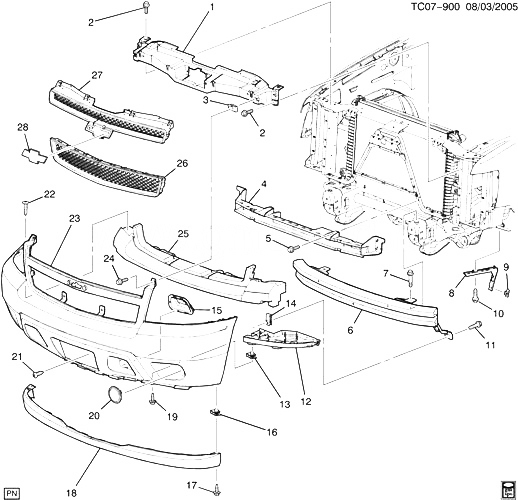

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15865945 |
BRACKET, RAD GRL UPR (INCLS 3)
| CK1, 2 (06-36) (X88) |
2007-2009 |
01 |
|
| 002 |
11610055 |
БОЛТ, HWASH, M6X1X23 (RAD GRL SUPT REINF)
|
2007-2009 |
08 |
|
| 003 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) |
|
2007-2009 |
08 |
| 004 |
25901978 |
BRACKET, FRT BPR FASCIA
| CK1, 2 (06-36) (X88, Z75) |
2007-2009 |
01 |
|
| 005 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA)
|
2007-2009 |
06 |
|
| 006 |
25947497 |
БАМПЕР, ПЕРЕДНИЙ IMP
| CK1, 2 (06-36) (X88, Z88) (EXC HP2) |
2009-2009 |
01 |
|
| 007 |
11519154 |
БОЛТ, FRT BPR IMP BAR (M14X2X140)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 008 |
15923612 |
BRACKET, FRT BPR FASCIA SI (INCLS 9)
| CK1, 2 (06-36) (X88) |
2007-2009 |
01 |
|
| 008 |
15923613 |
BRACKET, FRT BPR FASCIA SI (INCLS 9) |
CK1, 2 (06-36) (X88) |
2007-2009 |
01 |
| 009 |
11518162 |
NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (PART OF 8) |
|
2007-2009 |
01 |
| 010 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA SI BRKT)
|
2007-2009 |
04 |
|
| 011 |
11609685 |
БОЛТ, HEX W/CON SPR WA, M6X1X27, 19 THD, 24 OD, 8.8, GMW3359 BLACK, M-PT (FRT BPR LWR FASCIA) |
|
2007-2009 |
02 |
| 012 |
21996230 |
FILLER, FRT BPR OTR FRT
| CK1, 2 (06-36) (X88) (EXC BPH, HP2) |
2008-2009 |
01 |
|
| 012 |
21996231 |
FILLER, FRT BPR OTR FRT
| CK1, 2 (06-36) (X88) (EXC BPH, HP2) |
2008-2009 |
01 |
|
| 013 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR OTR FRT FIL)
|
2007-2009 |
08 |
|
| 014 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT BPR LWR FASCIA)
|
2007-2009 |
02 |
|
| 015 |
15893976 |
COVER, FRT TOW HOOK OPG
| CK1, 2 (06-36) (VGD, X88) (EXC BPH, HP2) |
2007-2009 |
01 |
|
| 015 |
15893977 |
COVER, FRT TOW HOOK OPG
| CK1, 2 (06-36) (VGD, X88) (EXC BPH) |
2007-2009 |
01 |
|
| 016 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT OTR A/DFL)
|
2007-2009 |
02 |
|
| 017 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT OTR A/DFL) (8.977)
|
2007-2009 |
02 |
|
| 018 |
15203734 |
DEFLECTOR, FRT AIR
| CK1, 2 (06-36) (T96, VGD, X88) (EXC BPH) |
2007-2009 |
01 |
|
| 018 |
15203734 |
DEFLECTOR, FRT AIR
| CK1, 2 (06-36) (VGD, X88) (EXC HP2, T96) |
2009-2009 |
01 |
|
| 019 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT BPR OTR FRT FIL) (8.977)
|
2007-2009 |
08 |
|
| 020 |
15817527 |
COVER, FRT FOG LP OPG |
CK1, 2 (06) (VGD, X88, Z88) (EXC T96) |
2007-2009 |
02 |
| 021 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT BRKT)
|
2007-2009 |
02 |
|
| 022 |
25705182 |
БОЛТ, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249)
| CK1, 2 (06-36) |
2007-2009 |
AR |
|
| 023 |
25814570 |
FASCIA, FRT BPR (PAINT TO MATCH) (USES ROUND FOGLAMPS)
| CK1, 2 (06-36) (VGD, X88) (EXC BPH, HP2) |
2008-2009 |
01 |
|
| 024 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR UPR FASCIA)
|
2007-2009 |
06 |
|
| 025 |
15882454 |
SUPPORT, FRT BPR FASCIA CTR
| CK1, 2 (06-36) (X88) (EXC BPH, HP2) |
2008-2009 |
01 |
|
| 026 |
|
РЕШЕТКА, РАДИАТОРА LWR (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 027 |
|
РЕШЕТКА, РАДИАТОРА UPR (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) (INCLS 28) |
|
2007-2009 |
|
| 028 |
15862129 |
EMBLEM, RAD GRL (PART OF 27)
| CK1, 2 (06-36) (VGD, X88) |
2007-2009 |
01 |
|
