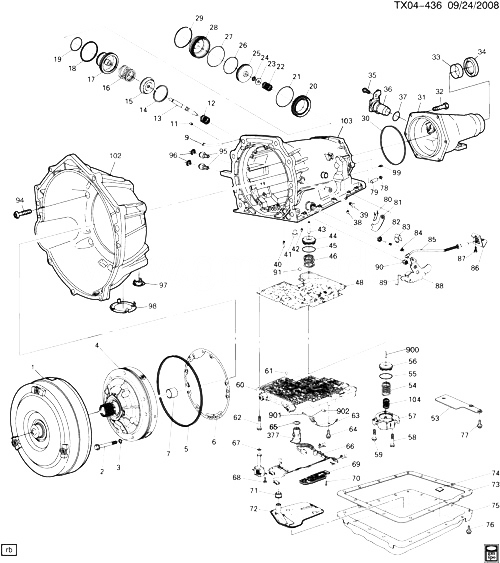

(TX04-436) - 2008-2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30) ЧАСТЬ 2 (4L60-E) КОРПУС И СОПРЯЖЕННЫЕ ДЕТАЛИ/СОЕДИНЕНИЕ ЗАМКА ПАРКОВКИ CHEVROLET TAHOE (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 17803852 CONVERTER, TORQ (REMAN) CK1 (LU3, M30) 2008-2009 01
002 24233361 БОЛТ, A/TRNS FLUID PUMP (INCLS 3) (M8X1.25X60) (INCLS SEAL) (*KIT1) (ACDelco #24233361) CK1 (M30) 2008-2009 07
003 24208664 SEAL, A/TRNS FLUID PUMP BOLT (PUMP TO CASE BOLT) (PART OF 2) (CONTAINS 10 SEALS) (ACDelco #24208664) CK1 (M30) 2008-2009 01
004 PUMP, A/TRNS FLUID (СМ. ГРУППУ 04.000 МАСЛЯНЫЙ НАСОС FOR DETAILED ILLUSTRATED VIEW) 2008-2009
005 24226315 SEAL, A/TRNS FLUID PUMP (WEDGE TYPE SEAL ASM) (*KIT1) (ACDelco #24226315) CK1 (M30) 2008-2009 01
006 12337931 ПРОКЛАДКА, A/TRNS FLUID PUMP (*KIT1) (ACDelco #12337931) CK1 (M30) 2008-2009 01
007 24241470 BUSHING, T/CV (ACDelco #24241470) CK1 (M30) 2008-2009 01
009 24202440 PIPE, A/TRNS VENT (*KIT8) (ACDelco #24202440) CK1 (M30) 2009-2009 01
011 08628864 ORIFICE, FWD CLU FEED (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) CK1 (M30) 2008-2009 01
012 08642273 ПРУЖИНА, 2-4 BAND SERVO RTN (ORANGE) (ACDelco #8642273) CK1 (M30) 2008-2009 01
013 08680499 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 1 GROOVE IN TAPERED POINT) (4.228) (ACDelco #8680499) CK1 (M30) 2008-2009 01
013 08680500 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 2 GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680500) CK1 (M30) 2008-2009 01
013 08680501 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY NO GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680501) CK1 (M30) 2008-2009 01
014 08642105 RING, 2-4 BAND SERVO 2ND APPL PSTN RET (ACDelco #8642105) CK1 (M30) 2008-2009 01
015 08642416 RETAINER, 2-4 BAND SERVO CUSH SPR (ACDelco #8642416) CK1 (M30) 2008-2009 01
016 08642539 ПРУЖИНА, 2-4 BAND SERVO PSTN CUSH (PINK) (ACDelco #8642539) CK1 (M30) 2008-2009 01
017 08642613 PISTON KIT, 2-4 BAND SERVO 2ND APPLY (PINK) (W/RINGS) (ACDelco #8642613) CK1 (M30) 2008-2009 01
018 RING, 2-4 BAND SERVO 2ND APPL PSTN OTR FLUID SEAL (*KIT1, KIT5, KIT6) 2008-2009
019 RING, 2-4 BAND SERVO 2ND APPL PSTN INR FLUID SEAL (*KIT1, KIT5, KIT6) 2008-2009
020 08673041 HOUSING, 2-4 BAND SERVO 2ND APPL (.55) (ACDelco #8673041) CK1 (M30) 2009-2009 01
021 08642112 SEAL, 2-4 BAND SERVO 2ND APPL PSTN HSG (O RING) (*KIT1) (ACDelco #8642112) CK1 (M30) 2009-2009 01
022 24207758 ПРУЖИНА, 2-4 BAND SERVO PSTN (ACDelco #24207758) CK1 (M30) 2008-2009 01
023 08642107 WASHER, 2-4 BAND SERVO PIN (11.17 ID X 22.0 OD X 2.30 THK) (ACDelco #8642107) CK1 (M30) 2008-2009 01
024 09415640 RETAINER, SNAP RING BOWED EXT.FITS SHFT 7/16 PL (OUTPUT SHF) (ACDelco #9415640) 2008-2009 01
025 08642478 PISTON, 2-4 BAND SERVO 4TH APPLY (W/RING) (ACDelco #8642478) CK1 (M30) 2008-2009 01
026 08642480 RING, 2-4 BAND SERVO PSTN FLUID SEAL (*KIT1) (ACDelco #8642480) CK1 (M30) 2008-2009 01
027 08647351 SEAL, 2-4 BAND SERVO CVR (O RING) (PART OF 28) (*KIT1) (ACDelco #8647351) CK1 (M30) 2008-2009 01
028 08642979 COVER, 2-4 SERVO (W/SEAL) (INCLS 27) (INCLS RING) (4.241) (ACDelco #8642979) CK1 (M30) 2008-2009 01
029 24232065 RING, 2-4 BAND SERVO CVR RET (ACDelco #24232065) CK1 (M30) 2008-2009 01
030 24208660 SEAL, A/TRNS CASE EXTN (PART OF 31) (*KIT1) (ACDelco #24208660) CK1 (M30) 2008-2009 01
032 08680874 БОЛТ, A/TRNS CASE EXTN (M10X1.5X33.4) (4.265) CK1 (M30) 2008-2009 06
035 24200093 БОЛТ, VEH SPD SEN (M6 X 1.0 X 15.0) (ACDelco #24200093) CK1 (M30) 2009-2009 01
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (ACDelco #213-347) K1 (M30, M70, NQH) 2008-2009 01
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (ACDelco #213-347) K1 (M30, NQG) 2009-2009 01
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347) K1 (M30, M70, NQH) 2008-2009 01
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347) K1 (M30, NQG) 2009-2009 01
037 19133158 SEAL, VEH SPD SEN (O RING) (I.D. 20MM) (ACDelco #19133158) K1 (M30, M70, NP8, NQH) 2008-2009 01
037 19133158 SEAL, VEH SPD SEN (O RING) (I.D. 20MM) (ACDelco #19133158) K1 (M30, NQG) 2009-2009 01
038 08628864 ORIFICE, 3RD ACCUM BL (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) CK1 (M30) 2008-2009 01
039 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (*KIT1) (ACDelco #444613) 2008-2009 01
040 08634400 VALVE, 3RD ACCUM BALL CHK (*KIT8) (ACDelco #8634400) CK1 (M30) 2008-2009 01
041 08654581 PIN, 2-4 BAND ANC (ACDelco #8654581) CK1 (M30) 2008-2009 01
042 08628732 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (SINGLE ORIFICE) (TALL NARROW) (*KIT4, KIT8) (4.226) (ACDelco #8628732) CK1 (M30) 2008-2009 02
042 08663890 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (DOUBLE ORIFICE) (W/BALL) (*KIT4, KIT8) (ACDelco #8663890) CK1 (M30) 2008-2009 01
043 08628273 PIN, 3-4 ACCUM PSTN (4.226) (ACDelco #8628273) CK1 (M30) 2008-2009 01
044 PISTON, 3-4 ACCUM (*KIT6) 2008-2009
045 24206509 RING, 3-4 ACCUM PSTN FLUID SEAL (*KIT1, KIT6) (ACDelco #24206509) CK1 (M30) 2008-2009 01
046 08639074 ПРУЖИНА, 3-4 ACCUM PSTN (BLUE) (*KIT4) (ACDelco #8639074) CK1 (M30) 2008-2009 01
048 24245346 PLATE, C/VLV BODY SPCR (W/GSKT) (*KIT4) (ACDelco #24245346) CK1 (M30) 2009-2009 01
053 08682792 COVER, A/TRNS CASE FLUID PASG (4.265) (ACDelco #8682792) CK1 (M30) 2008-2009 01
054 24219942 ПРУЖИНА, 1-2 ACCUM PSTN OTR (GREEN) (*KIT7) (ACDelco #24219942) CK1 (LU3, M30) 2008-2009 01
055 24206509 RING, 1-2 ACCUM PSTN FLUID SEAL (*KIT1, KIT6, KIT7) (ACDelco #24206509) CK1 (M30) 2008-2009 01
056 PISTON, 1-2 ACCUM (*KIT1, KIT6, KIT7) 2008-2009
057 24219935 COVER, 1-2 ACCUM (INCLS PIN) (*KIT7) (ACDelco #24219935) CK1 (M30) 2008-2009 01
058 11506078 БОЛТ, HFH M6X1X65 9.8 PL (VLV BODY COVER) 2008-2009 01
059 11503870 БОЛТ, HEX M6X1X35 10.9 PC (ACUUM CVR TO CASE) (ACDelco #11503870) 2008-2009 01
060 24236842 VALVE, CONT (W/BODY VLV) (ACDelco #24236842) CK1 (LU3, M30) 2009-2009 01
060 24236843 VALVE, CONT (W/BODY VLV) (ACDelco #24236843) CK1 (M30) 2009-2009 01
061 00104918 BALL, 1/4 DIA, CHROME STL (ACDelco #104918) 2008-2009 01
062 08680741 БОЛТ, VLV BODY (M6X1X54.4) (ACDelco #8680741) CK1 (M30) 2009-2009 03
063 24235788 DETENT, MAN SHFT (INCLS 901, 902) (ACDelco #24235788) CK1 (M30) 2009-2009 01
064 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (DTNT SPR TO VB) (ACDelco #11508687) 2008-2009 01
065 24213704 SEAL, A/TRNS WRG CONN (O RING) (PART OF 66) (2.559) (ACDelco #24213704) CK1, 2, 3 (M30) 2008-2009 01
066 24237980 HARNESS, A/TRNS WRG (INCLS 65, 67) (W/TCC SOL VALVE) CK1 (M30) 2009-2009 01
066 24237980 HARNESS, A/TRNS WRG (INCLS 65, 67) (W/TCC SOL VALVE) (2.480) CK1 (M30) 2009-2009 01
067 10471813 SEAL, TCC SOL VLV (O RING) (PART OF 66) (SMALL DIA) (OTR) (ACDelco #10471813) CK1 (M30) 2008-2009 01
068 11503870 БОЛТ, HEX M6X1X35 10.9 PC (TCC SOL VLV) (ACDelco #11503870) 2008-2009 02
071 08685775 SEAL, A/TRNS FLUID FLTR (*KIT3) CK1 (M30) 2008-2009 01
072 FILTER, A/TRNS FLUID (*KIT3) 2008-2009
073 08654799 ПРОКЛАДКА, A/TRNS FLUID PAN (*KIT2, KIT3) (ACDelco #8654799) CK1 (M30) 2008-2009 01
074 29535617 MAGNET, A/TRNS FLUID PAN (*KIT2) (4.105) (ACDelco #29535617) CK1 (M30) 2008-2009 02
075 24240207 PAN, A/TRNS FLUID (ACDelco #24240207) CK1 (M30) 2008-2009 01
076 24231519 БОЛТ, A/TRNS FLUID PAN (ACDelco #24231519) CK1 (M30) 2008-2009 16
077 08680764 БОЛТ, FLUID PASG CVR (SPACER SUPPORT PLATE) (M6X1X17.7) (4.265) (ACDelco #8680764) CK1 (M30) 2008-2009 03
078 PLUG, PARK PAWL SHF HOLE (PART OF 79) 2008-2009
079 08669911 PAWL KIT, PARK (INCLS 78, 81) (INST SHT, PAWL, PLUG SHF) (ACDelco #8669911) CK1 (M30) 2008-2009 01
080 08642193 ПРУЖИНА, PARK PAWL (ACDelco #8642193) CK1 (M30) 2008-2009 01
081 PAWL, PARK (PART OF 79) 2008-2009
082 08657163 SEAL, MAN SHFT SHF (PART OF 84, 88) (*KIT1, KIT8) (ACDelco #8657163) CK1 (M30) 2009-2009 01
084 24248868 SHAFT KIT, MAN SHFT DTNT LVR (INCLS 82) CK1 (M30) 2009-2009 01
085 24235438 ACTUATOR, PARK PAWL (ACDelco #24235438) CK1 (M30) 2009-2009 01
086 08667574 BRACKET, PARK PAWL ACTR (ACDelco #8667574) CK1 (M30) 2008-2009 01
087 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (PARK LOCK BRACKET TO CASE) (ACDelco #11508687) 2008-2009 02
089 08680731 LINK, MAN VLV (*KIT1) (ACDelco #8680731) CK1 (M30) 2008-2009 01
090 10255857 ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (MAN SHFT DTNT LVR) (8.917) 2008-2009 01
091 00104918 BALL, 1/4 DIA, CHROME STL (NO. 10 CHECK BALL) (ACDelco #104918) 2008-2009 01
094 24233360 БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) CK1 (M30) 2009-2009 08
095 24236579 FITTING, TRANS FLUID CLR PIPE (INCLS 96) (9/16-18 UNF-2A) (QUICK CONNECT) (ALUM BODY) (*KIT8) CK1 (M30) 2009-2009 02
096 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 95) (EXPANDING SPRING WIRE) (*KIT8) (ACDelco #24205103) CK1, 2, 3 2008-2009 01
097 24205899 PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) CK1, 2, 3 (MW7, MYC, MYD, M30, M99) 2009-2009 01
098 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) CK1 (M30) 2009-2009 01
099 08663707 ORIFICE, LUB FLUID (4.3MM DIA) (*KIT8) (ACDelco #8663707) CK1 (M30) 2009-2009 02
102 24206953 HOUSING, T/CV (ACDelco #24206953) CK1 (M30) 2009-2009 01
103 CASE, A/TRNS (*KIT8) 2008-2009
104 24220145 ПРУЖИНА, 1-2 ACCUM PSTN INR (LIGHT GREEN) (*KIT7) (ACDelco #24220145) CK1 (M30) 2008-2009 01
377 24230632 VALVE, PRESS CONT SOL (ACDelco #24230632) CK1 (M30) 2008-2009 01
900 08684426 PIN, 1-2 ACCUM PSTN (4.226) (ACDelco #8684426) CK1 (M30) 2008-2009 01
901 PIN, MAN SHFT DTNT RLR (PART OF 63) 2009-2009
902 ROLLER, MAN SHFT DTNT (PART OF 63) 2008-2009
K01 24236378 GASKET KIT, A/TRNS SERV (INCLS 2, 5, 6, 18, 19, 21, 26, 27, 30, 34, 39, 45, 55, 56, 82, 89) (W/PISTONS) (*1) (ACDelco #24236378) CK1 (M30) 2009-2009 01
K03 24208576 ФИЛЬТР, A/TRNS FLUID (INCLS 71-73) (ACDelco #24208576) (USED W/DEEP PAN 76.6MM) CK1 (M30) 2008-2009 01
K04 24221350 GASKET KIT, C/VLV BODY SPCR PLT (INCLS 48) (ACDelco #24221350) CK1 (M30) 2008-2009 01
K05 24232073 RING KIT, 2-4 BAND SERVO 2ND APPL PSTN FLUID SEAL (INCLS 18, 19) (ACDelco #24232073) CK1 (M30) 2008-2009 01
K06 24221919 PISTON KIT, 1-2 3-4 ACCUM (INCLS 18, 19, 44, 45, 55, 56) (INCLS 1-2 3-4 ACCUM PSTN SEAL ASM) (ACDelco #24221919) CK1 (M30) 2008-2009 01
K07 24220142 ACCUMULATOR, 1-2 (INCLS 54-57, 104) (ACDelco #24220142) CK1 (LU3, M30) 2008-2009 01
K08 24247300 CASE KIT, A/TRNS (INCLS 9, 11, 38, 40, 42, 82, 95, 96, 99, 103) (ACDelco #24247300) CK1 (M30) 2009-2009 01
