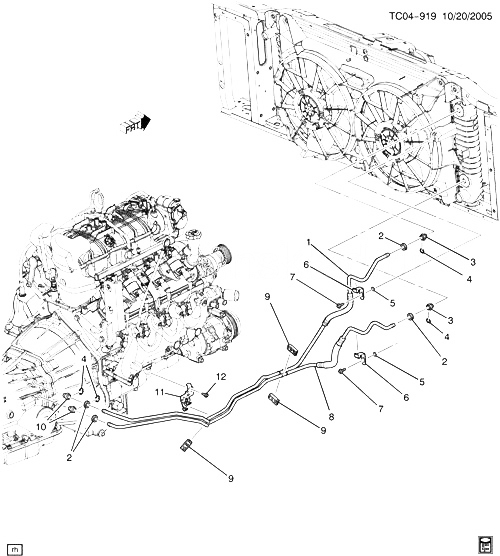

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25999417 |
PIPE, TRANS FLUID CLR UPR (INCLS 2, 5-7) (ACDelco #25999417)
| CK1 (LC9, LH6, LMG, LU3, LY2, LY5, M30) (EXC KNP) |
2009-2009 |
01 |
|
| 002 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 8) (PLASTIC RETAINER) (ACDelco #15052228)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 003 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (INCLS 4) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661)
| CK1, 2, 3 (MYC, MYD, M30) |
2009-2009 |
02 |
|
| 004 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 3, 10) (EXPANDING SPRING WIRE) (ACDelco #24205103)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 005 |
14093869 |
ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 1, 8) |
|
2007-2009 |
02 |
| 007 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 1, 8)
|
2007-2009 |
02 |
|
| 008 |
15779541 |
PIPE, TRANS FLUID CLR LWR (INCLS 2, 5-7)
| CK1 (LC9, LH6, LMG, LU3, LY2, LY5, M30) |
2009-2009 |
01 |
|
| 009 |
15068848 |
SPACER, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) |
CK1 (M30) |
2009-2009 |
02 |
| 010 |
24236579 |
FITTING, TRANS FLUID CLR PIPE (INCLS 4) (9/16-18 UNF-2A) (QUICK CONNECT) (ALUM BODY) |
CK1 (M30) |
2009-2009 |
02 |
| 011 |
15022957 |
CLIP, TRANS FLUID CLR PIPE (RETAINS 9.5MM STL TUBING) (2.343) |
CK1 (LU3, M30) |
2007-2009 |
01 |
| 011 |
15022958 |
CLIP, TRANS FLUID CLR PIPE (RETAINS 9.5MM STL TUBING) (2.343) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L9H) |
2009-2009 |
01 |
| 012 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR PIPE CLIP) |
|
2007-2009 |
01 |
