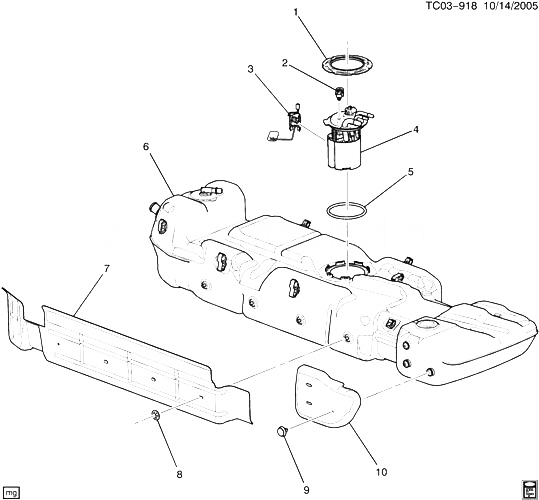

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10325852 |
RING, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 002 |
13502903 |
ДАТЧИК, F/TNK PRESS (PART OF 4) (ACDelco #13502903)
| CK1, 2, 3 |
2009-2009 |
01 |
|
| 003 |
19179870 |
SENSOR KIT, FUEL LVL (ACDelco #SK1297) |
CK107 (06) (LC9, LMG, L9H) |
2009-2009 |
01 |
| 003 |
19181001 |
SENSOR KIT, FUEL LVL (ACDelco #SK1305)
| CK107 (06) (LY2, LY5, L76, L92, LFA) |
2008-2009 |
01 |
|
| 003 |
19181001 |
SENSOR KIT, FUEL LVL (ACDelco #SK1305)
| CK107 (06) (XA1) (EXPORT) |
2008-2009 |
01 |
|
| 004 |
|
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) |
|
2007-2009 |
|
| 004 |
19181000 |
MODULE KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (INCLS 2, 5) (INCLS NON-SERVICEABLE LIFETIME FILTER) (ACDelco #M10191)
| CK107 (06) (LY2, LY5, L76) |
2008-2009 |
01 |
|
| 004 |
19181000 |
MODULE KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (INCLS 2, 5) (INCLS NON-SERVICEABLE LIFETIME FILTER) (ACDelco #M10191)
| CK107 (06) (XA1) |
2009-2009 |
01 |
|
| 004 |
19181000 |
MODULE KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (INCLS 2, 5) (INCLS NON-SERVICEABLE LIFETIME FILTER) (3.107) (ACDelco #M10191)
| CK107 (06) (LY2, LY5, L76) |
2009-2009 |
01 |
|
| 004 |
19181000 |
MODULE KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (INCLS 2, 5) (INCLS NON-SERVICEABLE LIFETIME FILTER) (3.107) (ACDelco #M10191)
| CK107 (06) (XA1) |
2009-2009 |
01 |
|
| 004 |
19206650 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (ACDelco #M10222)
| CK107 (06) (LC9, LMG, L9H) |
2009-2009 |
01 |
|
| 004 |
19206650 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (3.107) (ACDelco #M10222)
| CK107 (06) (LC9, LMG, L9H) |
2009-2009 |
01 |
|
| 005 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 4) (135.5 MM ID X 147.5MM OD X 6MMTALL) (ACDelco #G41)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 006 |
25904451 |
БАК, ТОПЛИВНЫЙ (29.6 GAL)
| CK107 (06) (LY2, LY5, L76) |
2009-2009 |
01 |
|
| 006 |
25904452 |
БАК, ТОПЛИВНЫЙ |
CK107 (06) (LC9, LMG, L9H) |
2009-2009 |
01 |
| 006 |
25920048 |
БАК, ТОПЛИВНЫЙ |
CK107 (06) (XA1) |
2009-2009 |
01 |
| 007 |
15078884 |
SHIELD, F/TNK RR |
CK107 (06) |
2007-2009 |
01 |
| 008 |
10009923 |
ГАЙКА, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) |
|
2007-2009 |
04 |
| 009 |
15168952 |
RETAINER, F/TNK H/SHLD |
CK1 (06-36) |
2007-2009 |
01 |
| 010 |
15836686 |
SHIELD, F/TNK HT |
CK107 (06) (LC9, LMG, LY5, L76, L9H) |
2009-2009 |
01 |
