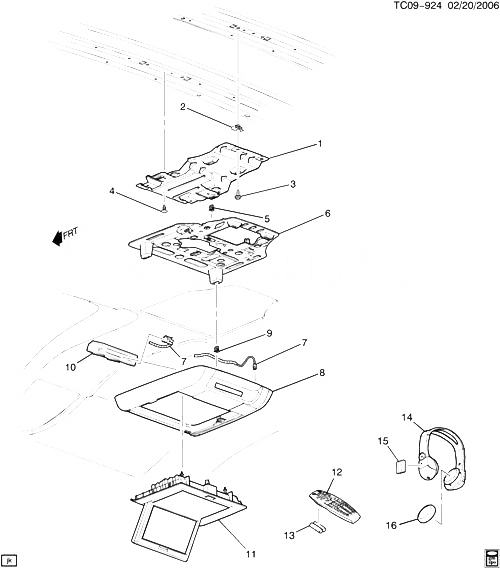

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15256562 |
BRACKET, VIDEO DISPLAY (INCLS 4) |
CK107 (06) (U42) (EXC CF5) |
2008-2009 |
01 |
| 002 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (VIDEO DISPLAY BRKT) |
|
2007-2009 |
04 |
| 003 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (VIDEO DISPLAY BRKT) |
|
2007-2009 |
04 |
| 004 |
15958694 |
RETAINER, RF RR CNSL BRKT (PUSH IN) (PART OF 1) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2007-2009 |
02 |
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 6)
|
2007-2009 |
02 |
|
| 006 |
15287715 |
RETAINER, RF RR CNSL (INCLS 5) (DVD BCKPLT - 2ND ROW) (10.225) |
CK107 (06) (CJ2, U42, ASF) |
2008-2009 |
01 |
| 007 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 008 |
|
CONSOLE, RF (INCLS 9) (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 009 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 8)
|
2007-2009 |
02 |
|
| 010 |
15095547 |
MODULE, AUDIO SYS XCVR (ACDelco #15095547) (LABELLED W/OEM PN 15095547.) |
CK1, 2, 3 (CJ2, U42) |
2007-2008 |
01 |
| 010 |
25835387 |
MODULE, AUDIO SYS XCVR (ACDelco #25835387) (LABELLED W/OEM PN 25835387.) |
CK1, 2, 3 (CJ2, U42) |
2007-2009 |
01 |
| 011 |
15948136 |
DISPLAY, VIDEO (GRAY) (LABELED 15948136) (ACDelco #15948136)
| CK1, 2 (06-36) (U42, 19I, 83I, 84I) (EXC DNU, Y91) |
2007-2008 |
01 |
|
| 011 |
15948136 |
DISPLAY, VIDEO (GRAY) (LABELED 15948136) (ACDelco #15948136)
| CK1, 2 (06-36) (U42, Y91, 19I) (EXC DNU) |
2007-2008 |
01 |
|
| 011 |
20792277 |
DISPLAY, VIDEO (GRAY) (LABELED 20792277) |
CK1, 2 (06) (U42, 19I, 83I, 84I) (EXC DNU, Y91) |
2007-2008 |
01 |
| 011 |
20792277 |
DISPLAY, VIDEO (GRAY) (LABELED 20792277) |
CK1, 2 (06) (U42, 31I) (EXC DNU, Y91) |
2007-2008 |
01 |
| 011 |
20792277 |
DISPLAY, VIDEO (GRAY) (LABELED 20792277) |
CK1, 2 (06) (U42, Y91, 19I) (EXC DNU) |
2007-2009 |
01 |
| 011 |
25888804 |
DISPLAY, VIDEO (CASHMERE) (ACDelco #25888804) |
CK1, 2 (06-36) (U42, 31I, 33I, 39I, 22I) (EXC DNU) |
2007-2008 |
01 |
| 011 |
25888807 |
DISPLAY, VIDEO (COCOA) (ACDelco #25888807) |
CK107 (06) (U42, Y91, 41I) (EXC DNU) |
2008-2009 |
01 |
| 011 |
25888808 |
DISPLAY, VIDEO (CASHMERE) (ACDelco #25888808)
| CK1 (U42, 30I) |
2007-2008 |
01 |
|
| 012 |
15190411 |
CONTROL, VIDEO PLYR REM (ACDelco #15190411)
| CK1, 2, 3 (U42) |
2007-2009 |
01 |
|
| 013 |
|
АККУМУЛЯТОР, VIDEO T/PLYR REM CONT |
|
2007-2009 |
|
| 014 |
25795364 |
HEADPHONE, (INCLS 16) (WIRELESS) (ONLY ONE HEADPHONE SET, NOT A SET OF TWO) |
CK1, 2, 3 (U42) |
2007-2008 |
02 |
| 015 |
|
АККУМУЛЯТОР PKG, HEADPHONE |
|
2007-2009 |
|
| 016 |
19115533 |
PAD, HEADPHONE EAR (PART OF 14) (PKG OF 4) |
CK1, 2, 3 (U42) |
2007-2008 |
AR |
