| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

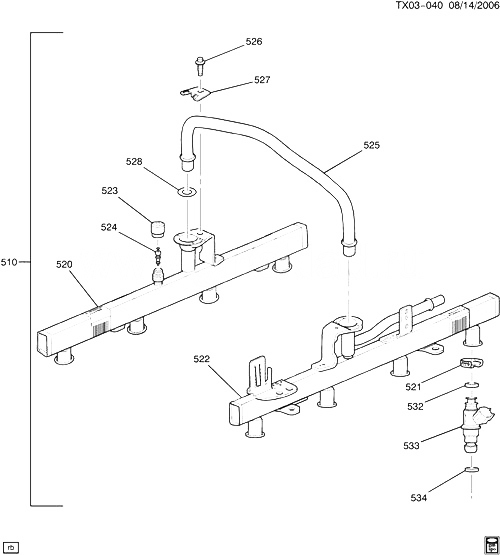

| 510 |
12621560 |
RAIL, M/PORT F/INJN FUEL (CRIMPED CROSSOVER TUBE RETAINER (INCLS 520, 522-528) |
CK1 (LMG) |
2007-2009 |
01 |
| 520 |
|
RAIL, M/PORT F/INJN FUEL (PART OF 510) |
|
2007-2008 |
|
| 521 |
|
RETAINER, F/INJR (PART OF 533) (*KIT1) |
|
2007-2008 |
|
| 522 |
|
RAIL, M/PORT F/INJN FUEL (PART OF 510) |
|
2007-2008 |
|
| 523 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 510, 524) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 524 |
|
VALVE KIT, FUEL PRESS SERV (PART OF 510) (INCLS 523) |
|
2007-2008 |
|
| 524 |
12584592 |
VALVE KIT, FUEL PRESS SERV (PART OF 510) (INCLS 523) (INCLUDES CAP AND VALVE) (ACDelco #12584592)
| CK1 (LC9, LMG, L76) |
2007-2008 |
01 |
|
| 525 |
|
TUBE, F/INJN FUEL RL C/OVR (PART OF 510) |
|
2007-2008 |
|
| 526 |
|
БОЛТ, F/INJN FUEL RL C/OVR TUBE RET (PART OF 510) |
|
2007-2008 |
|
| 526 |
|
БОЛТ, F/INJN FUEL RL C/OVR TUBE RET (PART OF 510, 527) |
|
2007-2008 |
|
| 527 |
|
RETAINER KIT, F/INJN FUEL RL C/OVR TUBE (PART OF 510) |
|
2008-2009 |
|
| 528 |
|
SEAL, F/INJN FUEL RL C/OVR TUBE (PART OF 510) |
|
2007-2008 |
|
| 532 |
|
SEAL, F/INJN FUEL RL (O RING) (PART OF 533) (*KIT2) |
|
2007-2008 |
|
| 533 |
12594512 |
INJECTOR, SEQ M/PORT FUEL (INCLS SEAL, RETAINER, INJECTOR) (INCLS 521, 532, 534) (ACDelco #217-2436) |
CK1 (LMG) |
2007-2009 |
08 |
| 534 |
|
SEAL, F/INJR (O RING) (PART OF 533) (*KIT2) |
|
2007-2008 |
|
| K01 |
12570620 |
RETAINER KIT, F/INJR (INCLS 521) (W/ 8 RETAINERS) (ACDelco #12570620) |
CK1 (LY2, LY5, LH6, L76) |
2007-2009 |
01 |
| K01 |
89017372 |
RETAINER KIT, F/INJR (INCLS 521) (ACDelco #89017372) |
CK1 (LMG) |
2007-2009 |
01 |
| K02 |
|
SEAL KIT, F/INJR (O RING) (INCLS 532, 534) |
|
2007-2008 |
|
