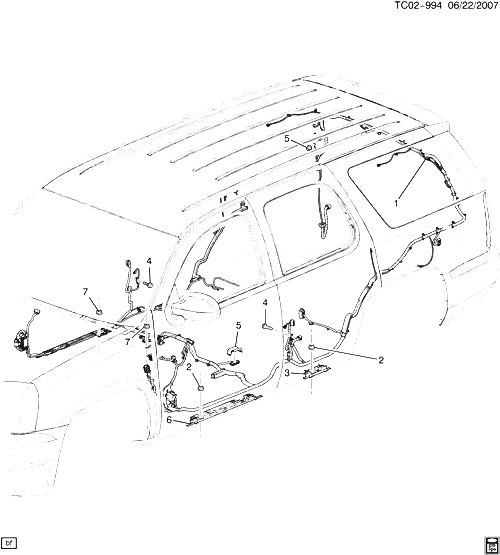

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25878493 |
HARNESS, BODY WRG (INCLS 3, 6) |
CK107 (06) (ASF, AZ3, A95, PPV, 5W4) (EXC ARS, E61, UD7, UVC) |
2008-2008 |
01 |
| 001 |
25892709 |
HARNESS, BODY WRG (INCLS 3, 6) (LABELED 25892709 OR 25866719) |
CK1 (06) (A95, HP2, UD7, UVC) |
2008-2008 |
01 |
| 001 |
25916790 |
HARNESS, BODY WRG (INCLS 3, 6) (LABELED 25916790) |
CK1 (06) (A95, HP2, UD7, UVC) |
2008-2008 |
01 |
| 002 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) (8.921) |
|
2008-2009 |
06 |
| 003 |
19178084 |
CONDUIT, BODY WRG HARN (PART OF 1) |
CK107 (06) (AN3, ARS, E61, UD7, UVC) (EXC Y91) |
2008-2008 |
01 |
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND)
|
2008-2009 |
02 |
|
| 005 |
15215179 |
COVER, WRG HARN CONN (BLACK (REPLS ALL COLORS))
| CK1, 2 (06-36) |
2008-2009 |
02 |
|
| 006 |
19178080 |
CONDUIT, BODY WRG HARN (PART OF 1) (SILL PLATE RETAINER) |
CK107 (06) (AN3, ARS, E61, UD7, UVC) (EXC Y91) |
2008-2008 |
01 |
| 007 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)
|
2008-2009 |
03 |
|
