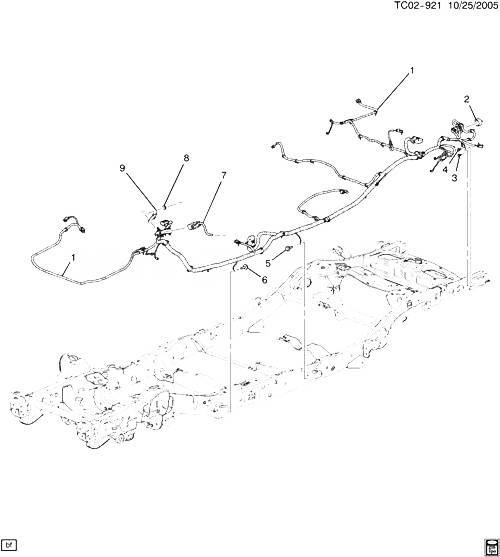

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25901152 |
HARNESS, CHAS WRG |
CK107 (06) (ZW7, Z56, Z71) (EXC HP2, T79) |
2008-2008 |
01 |
| 003 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND)
|
2007-2009 |
01 |
|
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG)
|
2007-2009 |
01 |
|
| 005 |
11516872 |
BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (RR LP WRG HARN GND) |
|
2007-2009 |
01 |
| 006 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND)
|
2007-2009 |
02 |
|
| 007 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 008 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) (8.921) |
|
2007-2009 |
02 |
| 009 |
15045897 |
BRACKET, CHAS FRT WRG HARN (FRT OF DASH) |
CK1, 2, 3 |
2007-2009 |
01 |
