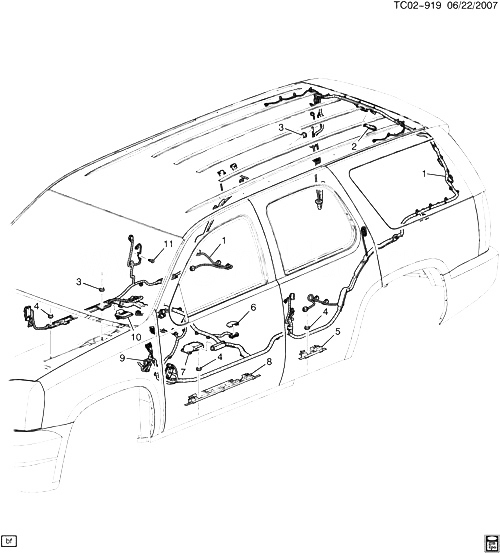

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25878492 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AZ3, A95, PPV, 5W4) (EXC ARS, ASF, E61, HP2, UD7, UVC) |
2008-2008 |
01 |
| 001 |
25878493 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (ASF, AZ3, A95, PPV, 5W4) (EXC ARS, E61, UD7, UVC) |
2008-2008 |
01 |
| 001 |
25878501 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, ARS, Y91) (EXC UVC) |
2008-2008 |
01 |
| 001 |
25878502 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, T89, UVC, Y91) (EXC ARS) |
2008-2008 |
01 |
| 001 |
25878507 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AZ3, A95) (EXC ARS, E61, HP2, PPV, UD7, UVC, 5W4) |
2008-2008 |
01 |
| 001 |
25878513 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, UD7, UVC) (EXC ARS, E61, Y91) |
2008-2008 |
01 |
| 001 |
25878521 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, ARS, UD7, UVC) (EXC E61, Y91) |
2008-2008 |
01 |
| 001 |
25912028 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, ARS, UVC, Y91) |
2008-2008 |
01 |
| 001 |
25912032 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, T89, Y91) (EXC ARS, UVC) |
2008-2008 |
01 |
| 001 |
25912032 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, Y91) (EXC ARS, T89, UVC) |
2008-2008 |
01 |
| 001 |
25912042 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AZ3, A95, UD7) (EXC ARS, E61, HP2) |
2008-2008 |
01 |
| 001 |
25912044 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, E61, UD7) (EXC ARS, Y91) |
2008-2008 |
01 |
| 001 |
25912051 |
HARNESS, BODY WRG (INCLS 5, 8) |
CK107 (06) (AN3, ARS, E61, UD7, UVC) (EXC Y91) |
2008-2008 |
01 |
| 002 |
|
HARNESS, L/GATE WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВЕРИ БАГАЖНИКА FOR DETAILED ILLUSTRATED VIEW) (INCLUDES BOOT BETWEEN LIFT GATE AND BODY) |
|
2007-2009 |
|
| 003 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND)
|
2007-2009 |
03 |
|
| 004 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) (8.921) |
|
2007-2009 |
06 |
| 005 |
19178084 |
CONDUIT, BODY WRG HARN (PART OF 1) |
CK107 (06) (AN3, ARS, E61, UD7, UVC) (EXC Y91) |
2008-2008 |
01 |
| 006 |
15215179 |
COVER, WRG HARN CONN (BLACK (REPLS ALL COLORS))
| CK1, 2 (06-36) |
2007-2009 |
02 |
|
| 007 |
|
MODULE, INFL RST SEN DIAGN (СМ. ГРУППУ 16.000 INFLATEABLE RESTRAINT SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 008 |
19178080 |
CONDUIT, BODY WRG HARN (PART OF 1) (SILL PLATE RETAINER) |
CK107 (06) (AN3, ARS, E61, UD7, UVC) (EXC Y91) |
2008-2008 |
01 |
| 009 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 010 |
|
MODULE, RR VIEW CAMERA IMAGE DISPLAY (СМ. ГРУППУ 02.000 СИСТЕМА ДАТЧИКОВ/ОБЪЕКТЫ СЗАДИ FOR DETAILED ILLUSTRATED VIEW) (2.195) |
|
2007-2009 |
|
| 011 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND)
|
2007-2009 |
02 |
|
