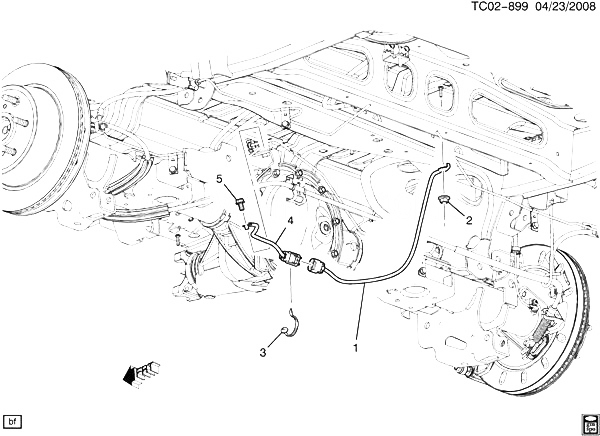

(TC02-899) - 2008-2009 CK107(06) ЖГУТ ПРОВОДОВ/ШАССИ GROUND STRAPS (HYBRID HP2) CHEVROLET TAHOE (4WD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25866712 | STRAP, BODY GND (LABELED 25866712 OR 25829707) | CK1 (HP2) | 2008-2009 | 01 |
| 002 | 11609411 | ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY GND STRP)|
| 2008-2009 |
01 |
|
| 003 | 12337820 | STRAP, 15 TIE STRAP (ACSRY WRG HARN) (ACDelco #12337820)|
| 2008-2009 |
AR |
|
| 004 | 25866711 | STRAP, R/AXLE WRG HARN | CK1 (06) (HP2) | 2008-2009 | 01 |
| 005 | 11515755 | БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RR BRK HOSE) (T/W 12345493 REPLCS 25534835)|
| 2008-2009 |
01 |
|
